Sauermann Si-CA 130 Combustion Flue Gas Analyser - Printer Kit
You might also like:


The Sauermann Si-CA 130 Combustion Flue Gas Analyser with Printer Kit delivers cutting-edge combustion analysis technology in a compact, ergonomic, and highly versatile device. Designed for both residential and commercial gas system monitoring, the Si-CA 130 supports up to three pre-calibrated, field-replaceable gas sensors: O₂, CO (up to 8000 ppm), NO, and low-range NO for accurate NOx measurement, even in low NOx or high moisture environments.
With built-in diagnostics like sensor life indicators and calibration reminders, the Si-CA 130 ensures long-term performance with minimal downtime. It calculates CO₂ percentage, combustion efficiency, excess air, and measures draft and differential pressure. The analyser also monitors CO and CO₂ levels in ambient air, making it a complete safety and performance tool for combustion engineers.
The large colour touchscreen offers a customisable interface for real-time graphical data display. Data is automatically logged and can be transferred via Wi-Fi or USB to Sauermann’s free mobile app or PC software for detailed reporting, analysis, and record-keeping. The included wireless printer enables fast, onsite report generation for compliance and client documentation.
✅ Supports up to 3 Sensors – O₂, CO (8000 ppm), NO, Low NO (field-replaceable & pre-calibrated)
✅ Advanced Combustion Analysis – CO₂ %, efficiency, excess air, draft & pressure readings
✅ Ambient CO & CO₂ Monitoring – Enhanced safety during on-site operation
✅ Sample Conditioning Unit – Ideal for low NOx and high moisture flue gases
✅ Large Touchscreen Display – Intuitive, colour interface with custom gas view options
✅ Automatic Data Logging – For easy reporting and compliance documentation
✅ Wireless & USB Connectivity – Export data to PC or mobile via app or software
✅ Wireless Printer Included – Instantly print analysis reports on-site
✅ Smart Safety Features – Auto pump cut-off, one-touch purge, CO alarms
✅ Rugged & Portable – Compact, lightweight design with protective rubber holster

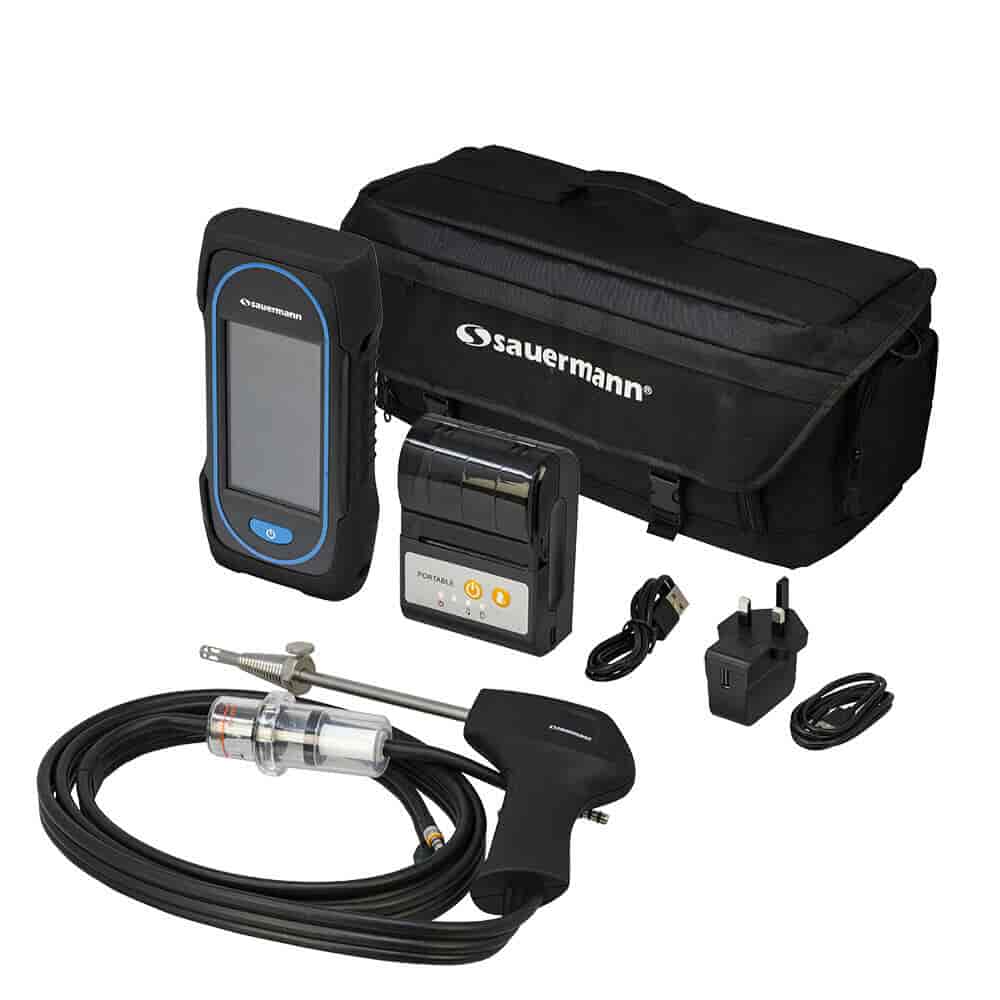

Si-CA 130 Analyser, O₂, CO, NO, and Low NO Sensors, Flue Gas Probe with Dual Hose, Water Trap with Filter, Protective Rubber Holster, AC Charger & USB Cable, Mobile App & PC Software Access, Internal Wireless Communication Module, Remote Wireless Printer, Carrying Case, Calibration Certificate & Quick Start Guide
Designed for professionals, the Si-CA 130 combines precision combustion analysis with wireless functionality, printer integration, and real-time data access—making it a powerful tool for heating engineers, HVAC technicians, and emission control specialists.
Order now and experience the next level of flue gas analysis with the Sauermann Si-CA 130 Combustion Analyser Printer Kit – accurate, connected, and built for performance.
Manufacturer | Sauermann |
---|---|
Product Type | Si-AC2 Flue Gas Analyser |
Measurement Units | °C, %, ppm, mbar |
O₂ Measuring Range | 0.00% to 25.00% |
CO Measuring Range | 0.00 ppm to 8000.00 ppm |
CO₂ Calculated Range | 0.00% to 99.90% |
Nitric Oxide (NO - optional) | 0.00 ppm to 5000.00 ppm |
Low Range NO | 0.00 ppm to 300.00 ppm |
NOx (calculated - optional) | 0.00 ppm to 7500.00 ppm |
Low NOx | 0.00 ppm to 450.00 ppm |
Flue Temperature Range | -20.00°C to 1250.00°C |
Air Temperature Range | -20.00°C to 120.00°C |
Differential Temperature | 0.00°C to 1250.00°C |
Pressure / Draft Range | -200.00 mbar to 200.00 mbar |
Excess Air Range | 0.00% to 999.00% |
Combustion Efficiency | 0.00% to 100.00% |
Efficiency (Condensing) | From 0 to +50 °C. In non condensing conditions. From 0 to 2000 m. |
Measured Parameters | O₂, CO, CO₂ (calculated), NO, NO₂, NOx (calculated) |
Display | Large colour touchscreen graphical display |
IP Protection Rating | IP42 |
Battery Life | Up to 8 hours |
Power Supply | Rechargeable Li-Ion 5100 mAh, 3.6V battery |
Charging Method | USB |
Wireless Connectivity | Yes – with Sauermann mobile app |
Mobile App Support | Yes – Sauermann Si-HVACR app for live data, reporting, logging |
Auto Zero | Yes |
Sensor Protection | CO sensor protected by automatic pump stop |
Remote Printer Support | Yes – compatible with Sauermann wireless printer |
Certifications & Standards | 2015/863 EU (RoHS 3), NF EN 50379-1, NF EN 50379-3, 2014/53/UE RED, TÜV SÜD, UKCA |
Dimensions | 19.4 x 9.9 x 4.9 cm |
Weight | 350g |
Keypad | 5 keys |
Environmental conditions of use |
Temperature: from -5 to 45 °C (23 to 113 °F), Hygrometry: in non-condensing conditions (< 85% RH) Maximum altitude: 2000 m (6561’) |
Storage temperature | From -20 to 50 °C (-4 to 122 °F) |
Languages | English, French, German, Spanish, Italian, Portuguese |
Suitable Applications | Ideal for heating engineers and HVAC professionals performing combustion analysis, boiler servicing, and emissions monitoring in residential and commercial systems. |
Warranty | 2 Years |
