The Anton Sprint Pro 2 Multifunction Flue Gas Analyser is the ultimate tool for professional plumbers, oil engineers, and commissioning engineers. This advanced analyser is designed to measure differential, flow, return, and excess air temperatures, calculate efficiency, determine CO: CO2 ratios, and measure levels of Carbon Dioxide (CO2), Carbon Monoxide (CO), and Oxygen (O2). It ensures accurate and reliable flue gas analysis for a wide range of applications.
Key Features
Comprehensive Measurement Capabilities: Measure CO2, CO, O2 levels, differential, flow, return, and excess air temperatures, and calculate efficiency.
BS7967 Compliance: Perform BS7967 CO sweep tests and ambient air monitoring with full pressure menu options for let-by and tightness tests.
User-Friendly Design: Large function buttons and intuitive menu make navigation simple. High-contrast display with color prompts and warnings enhances usability.
Durable Construction: Rugged design with a secure click-in flue probe connector and an integrated, easy-to-empty condensation trap with a particulate filter.
Advanced Protection: Features over-range protection and water-stop technology to prevent downtime due to condensation ingress.
Data Connectivity: Transfer data via USB to a PC with Anton’s Sprint PC Software or to a compatible Anton Sprint Pro Printer via IRDA communication. Supports USB-C charging.
Future-Proof: Supports future upgradability to meet changing testing requirements.
Ideal For
Professional Plumbers
Oil Engineers
Commissioning Engineers
Additional Benefits
Robust Construction: Ensures long-lasting performance in demanding environments.
Ergonomic Design: Facilitates ease of use and transport.
Intuitive Software: Easy navigation through a large keypad and clear on-screen prompts.
Efficient Charging: USB-C charging capabilities for both analyser and printer.
Quick Tool Access: Drop-in bag design for rapid removal and replacement of the analyser and accessories.

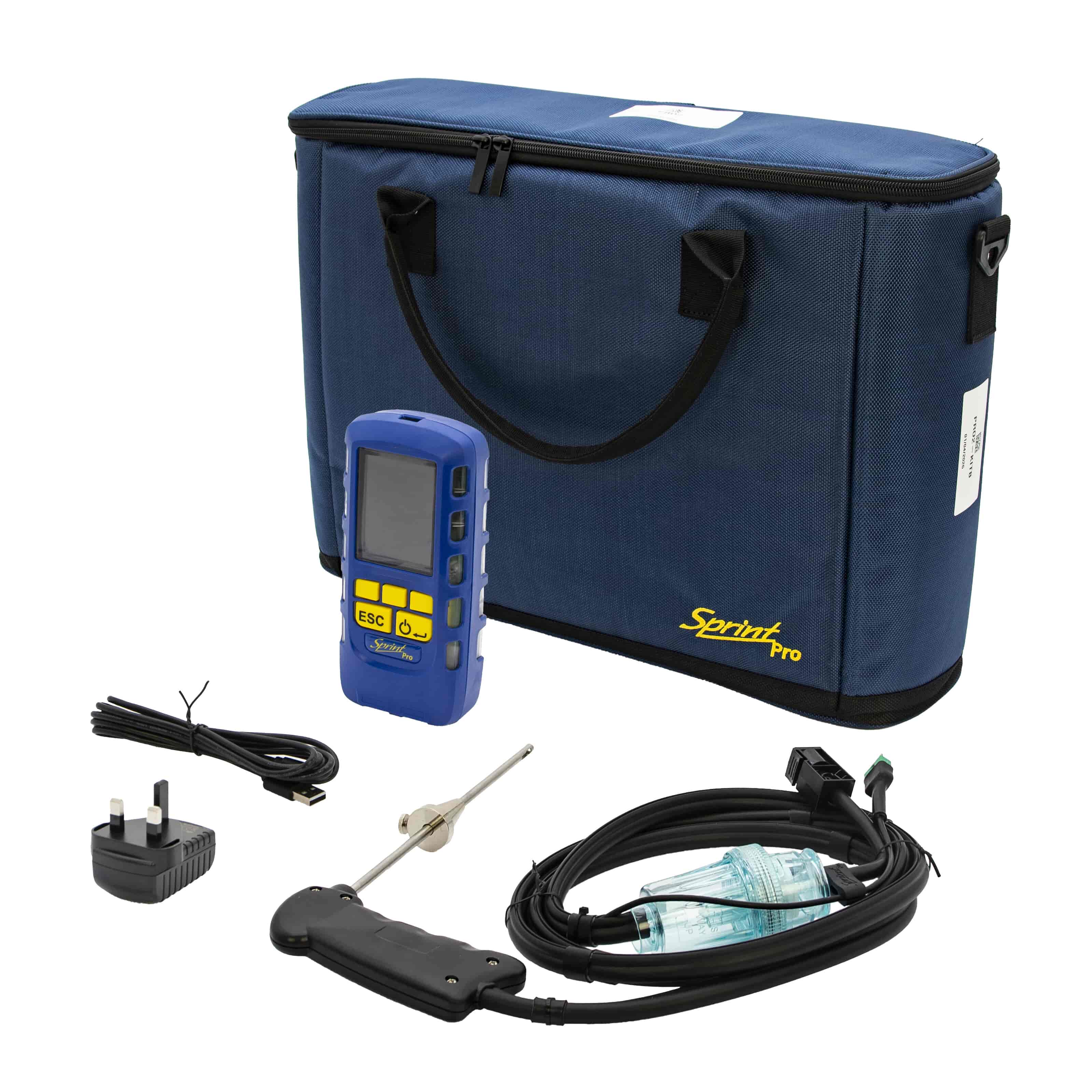

Package Includes
Multi-function Flue Gas Analyser: BSI tested to EN50379-1:2012 & EN50379-3:2012 standards, suitable for BS7967 & BS8494.
USB Charger and Lead: For convenient charging.
Sprint Pro Quick Drop In Bag: Optimised for easy tool extraction and replacement.
Sprint Pro Flue Probe: Equipped with Water Stop Technology and washable particulate filter.
Standard Pressure Hose: For accurate pressure measurements.
Spare Washable Particulate Filter: Ensures continued high performance.
Calibration Certificate & Quick Start Guide: For immediate and precise use.
The Anton Sprint Pro 2 Multifunction Flue Gas Analyser is a cost-effective, comprehensive, and adaptable tool designed to meet the needs of today’s professional engineers. Its advanced features, durable construction, and user-friendly design make it an indispensable device for accurate combustion analysis and gas safety reporting.
Specification
Anton Sprint Pro 2 Multifunction Flue Gas Analyser Specification
Manufacturer
Anton by Crowcon
Product Type
Flue Gas Analyser
Standards
EN 50379-1, EN 50379-3, BS 7967
CO Range
Calculated range: 0 to 21%, Resolution: 0.1%, Accuracy: ±0.3%
Flue Temperature
Range : 5° C to 400° C, resolution : 1° C, accuracy : ±2° C or 1.5% of reading
Gas Measurements
Measures and calculates O₂, CO, CO₂, CO/CO₂ ratio, excess air, temperature and efficiency
Hose Length
2.146 m
Battery Life
Up to 14 hrs - Li-ion Rechargeable Battery
Max. Temperature
K-Type thermocouple measurement range: -50° C to 1000° C, Accuracy: ±2° C or 1.5% of reading
Operating Temperature
-10°C to 50°C
Differential Pressure
Range: 0 to 400 mbar, Resolution: 0.01 mbar, Accuracy: ±0.5 mbar or 1% of reading
Dimensions
Analyser: H 183 x W 85 x D 50 mm
Suitable applications
Fuel options: natural gas, LPG, heavy oil, light oil, coal, wood, wood pellet dry, coke, Biomass and Bagasse.
Warranty
2 Years
Features
Anton Sprint Pro 2 Multifunction Flue Gas Analyser Features
Comprehensive Measurements: Measures CO2, CO, O2 levels, differential, flow, return, and excess air temperatures; calculates efficiency and CO: CO2 ratios.
BS7967 Compliance: Performs BS7967 CO sweep tests, ambient air monitoring, and full pressure menu options including let-by and tightness tests.
User-Friendly Design: Features large function buttons, intuitive menu, high-contrast display, color prompts, and warnings for easy navigation.
Durable and Reliable: Rugged construction with a secure click-in flue probe connector, integrated condensation trap with washable particulate filter, and over-range protection.
Advanced Protection: Water-stop technology protects against condensation ingress, reducing downtime and ensuring continuous operation.
Data Connectivity: Easily transfer data to a PC via USB or to a compatible Anton Sprint Pro Printer via IRDA communication. Supports USB-C charging.
Future-Proof: Designed to support future upgrades, allowing adjustments to meet changing testing requirements.
Complete Package: Includes USB charger and lead, quick drop-in bag, flue probe with water stop technology, standard pressure hose, spare washable particulate filter, calibration certificate, and quick start guide.
Ideal for Professionals: Perfect for plumbers, oil engineers, and commissioning engineers needing accurate and reliable flue gas analysis.
Efficient Operation: Ergonomic design, intuitive software, easy USB-C charging, and quick tool access with the drop-in bag design.
