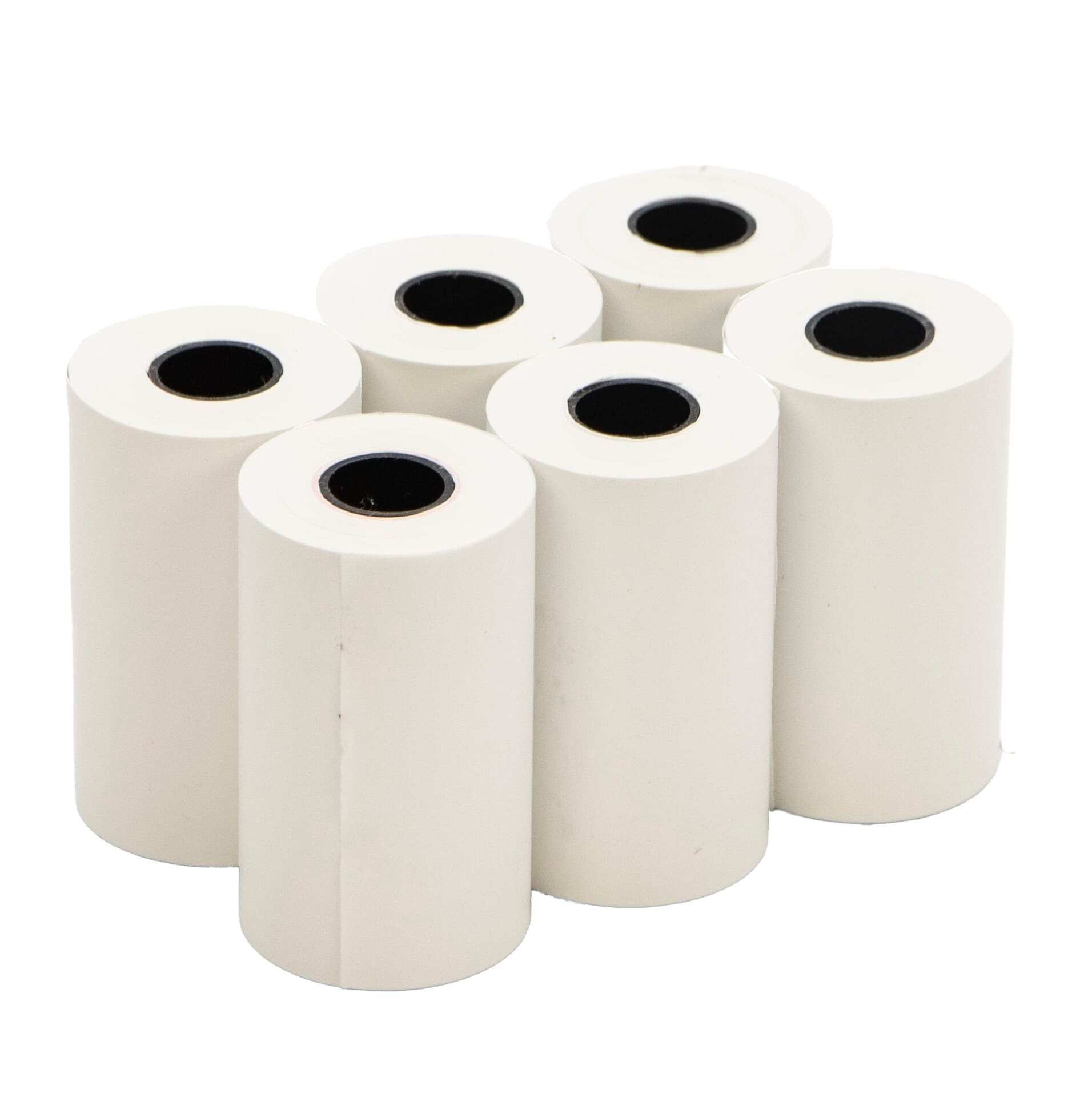

Testo Infrared Printer Thermal Paper Rolls (Pack of 6)

£28.80 £24.00

In stock

Testo 310/320 USB Charger with Cable

£43.34 £36.12

Only 1 in Stock

FAQs

Calibration

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Discover the New Testo 310 (2nd Gen) Flue Gas Analyser for Efficient Combustion Diagnostics

This Aumtun we're giving you a FREE Testo branded Spanner Set with every Testo 310 Flue Gas Analyser or kit.

The Testo 310 (2nd Gen) flue gas analyser is designed for accurate and dependable measurement of combustion values in gas or oil-fired boilers.

User-Friendly Interface with Color Display

Featuring a straightforward color screen user interface, the Testo 310 (2nd Gen) allows for easy navigation through four integrated measurement menus: exhaust gas, draft, Ambient CO, and pressure. All measurement results are displayed clearly and can be customised using the high-resolution graphic display.

Seamless Connectivity with Testo Smart App

Operate and configure your device effortlessly with the Testo Smart app via Bluetooth. The free app enables you to email measurement results directly from your smartphone or tablet. Additionally, an optional Bluetooth printer provides quick on-site printing of results.

Efficient and Compliant Performance

With a 30-second sensor zeroing time, an easily replaceable probe filter, and a quick-to-empty condensate trap, the Testo 310 (2nd Gen) ensures efficient and hassle-free operation. It complies with EN50379-1/-3 standards, making it an ideal choice for combustion diagnostics.

Expandable Measurement Capabilities

Enhance your diagnostic capabilities by using additional Testo Smart probes. These probes allow for flow/return temperature measurement and gas pressure measurement, with results displayed within the Smart App.

Optimise your combustion diagnostics with the reliable and advanced Testo 310 (2nd Gen) flue gas analyser.

Supplied with;- Testo 310 (2nd Generation) incl. battery and calibration protocol for measuring O2, CO, hPa and °C; probe,180 mm with cone; case; power supply incl. cable; silicone tube for pressure measurement; Particle filter 5 pcs.; & USB C cable.

Specification

Testo 310 (2nd Gen) Flue Gas Analyser - Standard Kit Specification

Temperature - TC Type K (NiCr-Ni)
Measuring Range	-20 to +100°C
Accuracy	±1°C
Resolution	0.1 °C
Reaction Time	< 50 s
Temperature - TC Type J (Fe-CuNi)
Resolution	0.1 °C
Measuring Range	-0 to +400°C
Accuracy	±1°C (0 to +100°C), ±1.5°C of mv (>100°C)
Resolution	0.1 °C
Reaction Time	< 50 s
Flue Gas 0²
Measuring Range	0 to 21 Vol.%
Accuracy	±1°C Vol.%
Resolution	0.1 Vol%
Reaction Time	< 30 s
Differential Pressure Flue Gas Draught -Piezoresistive
Measuring Range	-20 to 20 hPa
Accuracy	±0.02 hPa (-0.6 to +0.6 hPa) ±1.5 % of mv (-20 to -3 hPa and +3 ... +20 hPa) ±0.03 hPa (-3 to -0.6 hPa and +0,6 ... +3 hPa)
Resolution	0.01 hPa
Flue Gas Degree of effectivity, Eta (Calculated)	0.1 Vol%
Measuring Range	0 to 120%
Resolution	0.1%
Flue Gas loss (Calculated)
Measuring Range	0 to 99.9%
Resolution	0.1%
Pressure Measurement (Calculated)
Measuring Range	-40 to 40 hPa
Accuracy	±1 % of mv (remaining measuring range) ±0.5 hPa (0 to 50 hPa)
Resolution	0.1 hPa
Flue Gas CO (Without H² Compensation)
Measuring Range	0 to 4000 ppm
Accuracy	±10 % of mv (2001 to 4000 ppm) ±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm)
Resolution	1 ppm
Reaction Time t	60 s
Ambient CO
Measuring Range	0 to 4000 ppm
Accuracy	±10 % of mv (2001 to 4000 ppm) ±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm)
Resolution	1 ppm
General Technical Data
Weight	660 g
Dimensions	203 x 83 x 46mm
Operating Temperature	-5 to + 45°C
Protection Class	IP40
Battery Life	8 Hours (Pump on, 20 °C ambient temperature)
Display Function	Graphic 7-line display
Power Supply	Rechargeable Battery 1500 mAh, Mains Unit 5V/2A
Max. Humidity Load	0 to 80% RH
System Requirements	Requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
Miscellaneous	Possibility to save via the connection to the testo Smart App
Radio Range	60 Metres
Storage Temperature	-20 to +50°C
Warranty	12 Months

Features

Testo 310 (2nd Gen) Flue Gas Analyser - Standard Kit Features

Accurate and Dependable: The Testo 310 (2nd Gen) provides precise measurements for combustion values in gas or oil-fired boilers.
User-Friendly Interface: Simple color screen interface with four integrated measurement menus for exhaust gas, draft, Ambient CO, and pressure.
Clear Display: High-resolution graphic display shows all measurement results at a glance and allows for configuration.
Bluetooth Connectivity: Use the Testo Smart app to operate and configure the device, and email measurements directly from your smartphone or tablet.
Optional Bluetooth Printer: Rapid on-site printing of results is available through a Bluetooth-connected printer.
Efficient Operation: Quick sensor zeroing in 30 seconds, easily replaceable probe filter, and a quick-to-empty condensate trap.
Standards Compliant: Complies with EN50379-1/-3 standards for reliable performance.
Expandable Capabilities: Additional Testo Smart probes can measure flow/return temperature and gas pressure, with results displayed in the Smart App.
