Anton Sprint Pro 2 Multifunction Flue Gas Analyser – Kit A | BS 7967 | EN 50379 BSI Tested | With Printer
The Anton Sprint Pro 2 Kit A is built for professional plumbers, oil engineers and commissioning engineers who need combined flue gas analysis, pressure testing and on-site reporting in one setup. It measures CO and O₂ directly, and calculates CO₂, CO:CO₂ ratio, excess air and efficiency — the CO₂ calculation is derived from the O₂ reading rather than measured directly, which is standard for this level of analyser and gives fully acceptable results for BS 7967 testing.
The Pro 2 sits between the Pro 1, which doesn't include pressure testing, and the Pro 3 and above, which add a direct CO₂ sensor and other gas measurements. Built-in let-by and tightness pressure testing means these checks can be carried out without a separate manometer, across a differential pressure range of 0–400mbar with 0.01mbar resolution and ±0.5mbar accuracy.
Kit A is the reporting kit, adding an infrared magnetic printer, two AS10 pipe clamp temperature probes and the quick drop-in bag to the base Pro 2 analyser — giving a complete commissioning and reporting solution for printing CO and commissioning reports directly on site.
Double water-stop technology gives two-stage protection against condensate reaching the sensor pump, and the particulate filter is washable and reusable. It's BSI independently tested to EN 50379-1:2012 and EN 50379-3:2012, suitable for BS 7967 CO sweep testing and ambient air monitoring, and hydrogen blend ready. Like the Pro 2 standalone analyser, this kit can be upgraded to Pro 3 or Pro 5 specification later if requirements change.
Key Features & Benefits
- CO, O₂ Measurement, CO₂ Calculated: Electrochemical CO and O₂ sensors, with CO₂, CO:CO₂ ratio, excess air and efficiency calculated from the O₂ reading — standard and accurate for BS 7967 testing.
- BS 7967 CO Sweep and Ambient Air Monitoring: Performs CO sweep tests for gas fire and boiler commissioning under BS 7967:2015, producing CO room safety reports.
- Let-By and Tightness Pressure Testing: Full pressure menu built in, differential pressure 0–400mbar with 0.01mbar resolution and ±0.5mbar accuracy.
- Infrared Magnetic Printer Included: Print commissioning and CO reports on site, with magnetic attachment and USB charging.
- 2 x AS10 Pipe Clamp Probes Included: For flow and return temperature measurement alongside flue gas analysis.
- Double Water-Stop Technology: Two water-stop stages prevent moisture from reaching the sensor pump and causing downtime.
- Washable Particulate Filter: Foam dust filter, washable and reusable to reduce consumable cost.
- Secure Click-In Flue Probe Connector: Positive connection prevents accidental disconnection in use.
- Hydrogen Blend Ready: Suitable for use on hydrogen-blended gas appliances.
- Future Upgradeable: Can be upgraded to Pro 3 or Pro 5 specification at a later date.
- 14-Hour Battery Life: Li-ion rechargeable, USB-C charging.
- Large Buttons: Operable with gloves.
- USB Data Transfer to PC: Via Sprint Pro PC Software (Windows).
Ideal For
- Gas Safe registered engineers commissioning and servicing natural gas and LPG boilers and fires.
- Oil engineers, using the 3 Micron Filter probe recommended for oil.
- Commissioning engineers requiring on-site printed BS 7967 reports.
- Engineers needing combined flue gas analysis and pressure testing without carrying a separate manometer.

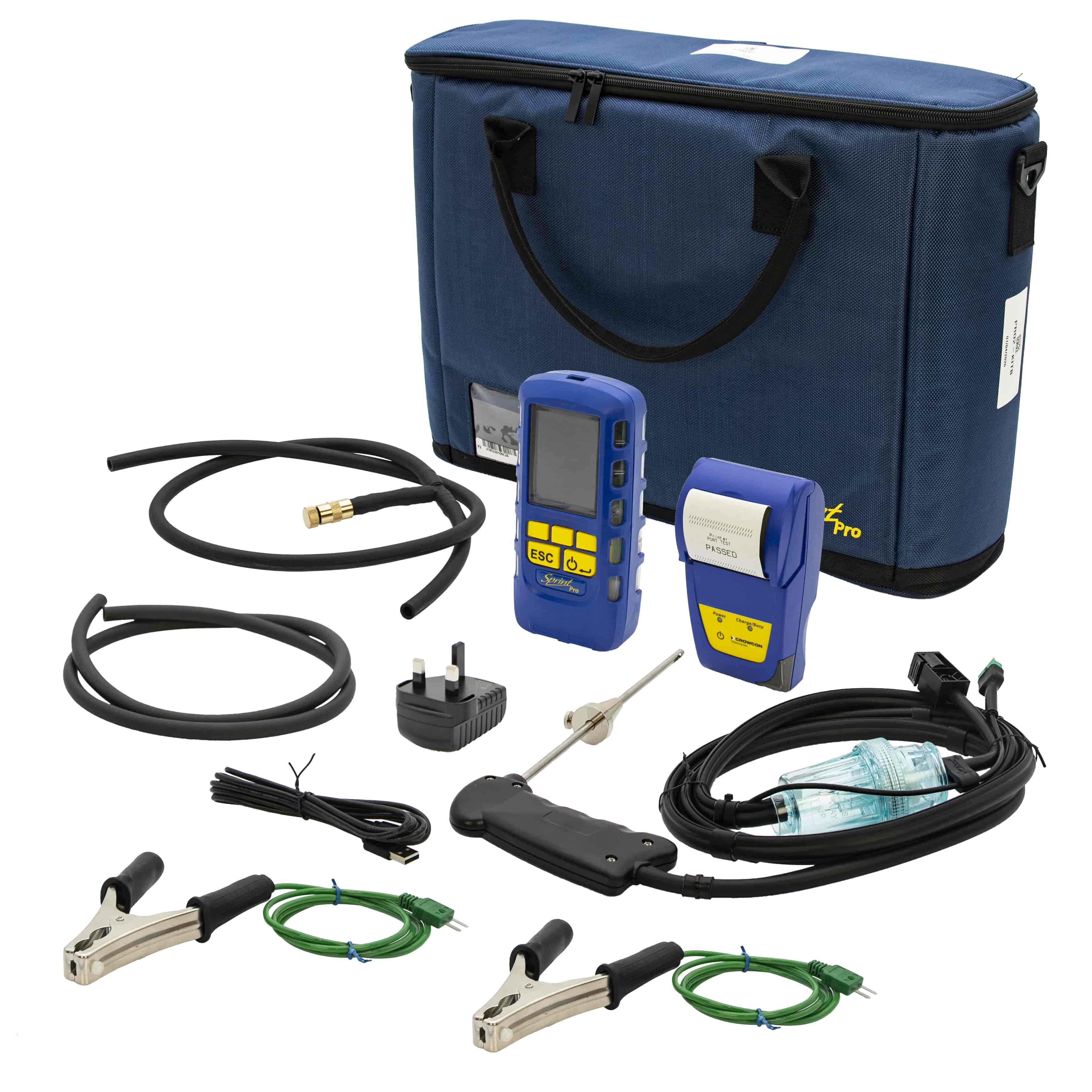

Kit A Contents
- 1 x Sprint Pro 2 Flue Gas Analyser.
- 1 x Sprint Pro Quick Drop-In Bag.
- 1 x USB-C Charger and Lead.
- 1 x Sprint Pro Flue Probe with Water Stop Technology and Washable Particulate Filter.
- 1 x Pro Infrared Magnetic Printer (USB Charging).
- 1 x Anton Pressure Relief Valve (APRV).
- 1 x Standard Pressure Hose.
- 2 x AS10 Clamp Pipe Temperature Probes.
- 1 x Spare Washable Particulate Filter.
- Certificate of Calibration and Quick Start Guide.
Why Buy This Product?
Kit A brings printing and temperature measurement into the same package as the pressure-testing-capable Pro 2 analyser, so commissioning reports and CO room safety documentation can be produced on site without ordering accessories separately afterwards. The AS10 pipe clamp probes add flow and return temperature measurement alongside flue gas analysis, rounding out what's needed for a full commissioning visit. Being upgradeable to Pro 3 or Pro 5 specification later also means the investment carries forward if requirements grow to include gas leak detection or wireless connectivity.
Order the Anton Sprint Pro 2 Multifunction Flue Gas Analyser Kit A online today.
