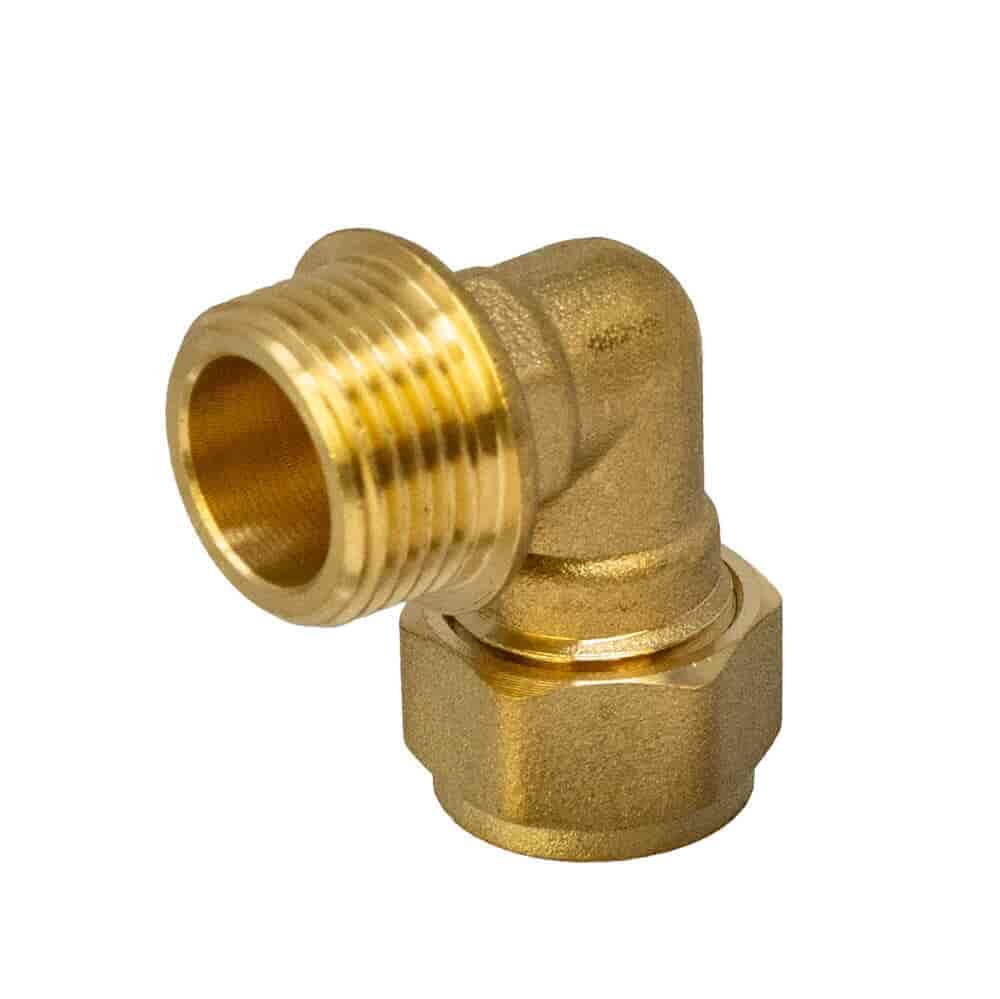

The Brass Compression Elbow – 10mm Compression x 3/8" BSP Male is a flame-free plumbing solution for creating 90° bends in pipework where space is tight or open flames are not allowed. For use with 10mm copper pipe and 3/8" BSP female fittings, this elbow gives a mechanical seal without the need for heat.
Made from brass and WRAS approved, this elbow is suitable for hot and cold water, heating systems, low-pressure gas and oil pipelines and BS EN 1057 copper tube and other pipe materials.
Create heat-free 90° pipe connections for water, gas or oil systems. Order now for WRAS approved.
| Brand | Hamilton Gas Products Ltd |
|---|---|
| Product Type | Compression Elbow |
| Connection | Compression x BSP male |
| Size | 10mm Compression x 3/8" BSP male |
| Material | Brass |
| Finish | Brass |
| Gas Pressure Rating | 1 bar @ 30°C |
| Compressed Air Rating | 7 bar @ 30°C |
| Water Pressure Rating | 25 bar (8–15mm) @ 0–95°C |
| Pipe Compatibility | Copper, stainless steel, low carbon steel, select plastics |
| Standard/Approval | BS EN 1254-2, WRAS Approved |
| Suitable Applications | Water, heating, oil, and low-pressure gas (above ground) |
