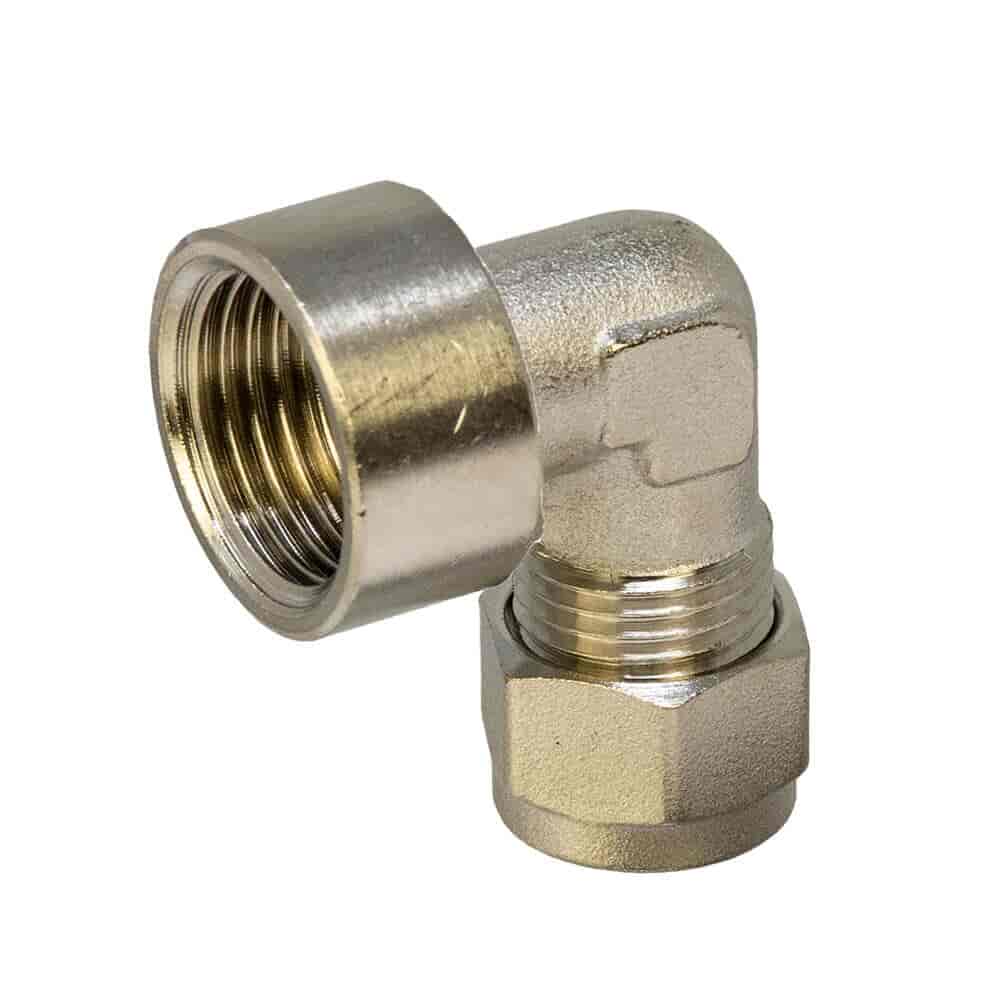

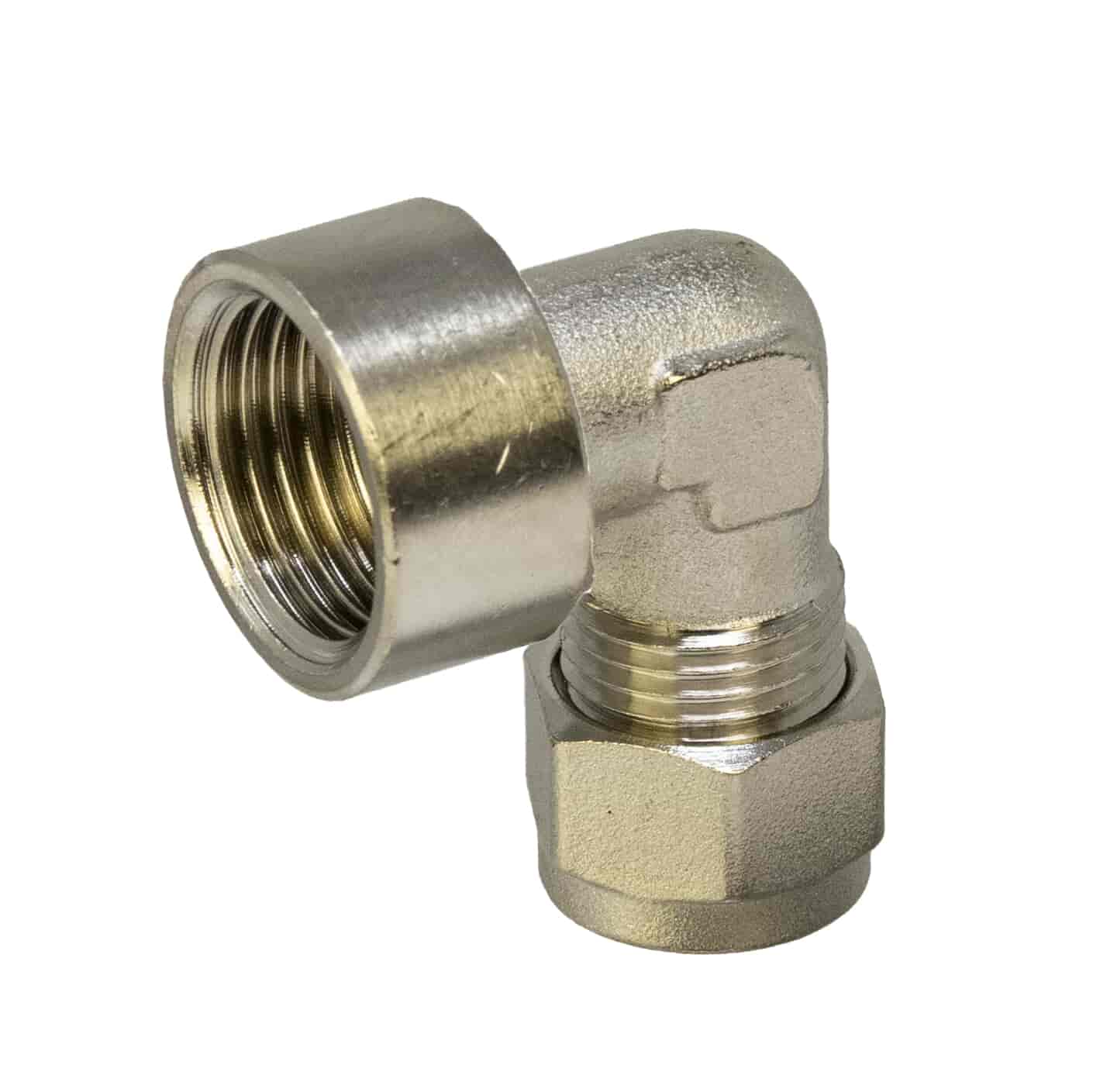

Brass Compression Elbow Fitting for Gas Hobs - 10mm x 1/2" BSP FM
Gas hobs often sit close to the wall, so a straight fitting can leave the pipe sticking out where it isn't wanted. This brass 90° compression elbow turns the connection through a right angle at the appliance, joining 10mm copper pipe to the ½" BSP male inlet found on gas hobs and many other gas appliances. The compression inlet grips the pipe mechanically, so no heat or soldering is required.
The joint is sealed with a fibre washer rather than PTFE tape or sealant. The washer is required and is not included in the box, and no additional sealant is needed or recommended. A matching Gas Hob Fibre Washer is available separately, suited to this fitting and most standard ½" BSP hob connections.
Installation must be carried out by a suitably qualified, registered gas installer.
Key Features & Benefits
90° Elbow for Tight Spaces: Turns the connection at the appliance where a straight fitting won't fit.
10mm Compression x ½" BSP Female: Joins 10mm copper pipe to a ½" BSP male appliance inlet.
Fibre Washer Seal: Seals with a dedicated fibre washer (required, sold separately), with no sealant needed.
Heat-Free Installation: No soldering or naked flame required.
Brass Construction: Durable and corrosion resistant for long-term use.
Ideal For
Connecting gas hobs and cookers to 10mm copper supply pipes.
Installations where the pipe has to turn at the appliance.
Domestic gas installations and kitchen appliance hook-ups.
Installers wanting a clean, regulation-ready appliance connection.
Common Problems This Part Will Fix
Pipe Projecting from the Wall at the Hob: The 90° turn keeps the connection tidy where a straight fitting sticks out.
Leaking Hob Connections: A face seal with a dedicated fibre washer replaces improvised sealing.
Soldering Near a Finished Kitchen: The compression joint avoids naked flame close to worktops and units.
Why Buy This Product?
Where the pipe has to turn at the appliance, an elbow built for the job keeps the connection neat and avoids forcing a straight fitting into a space it doesn't suit. Pair it with the matching fibre washer and the installation has everything it needs for a tidy, leak-free kitchen hook-up.
Order the Brass Compression Elbow Fitting for Gas Hobs - 10mm x 1/2" BSP FM online today.
Specification
Brass Compression Elbow Fitting for Gas Hobs - 10mm x 1/2" BSP FM Specification
Brand
Hamilton Gas Products Ltd
Part Number
HA334
Product Type
Gas Hob Compression Elbow Fitting
Angle
90°
Connection
10mm Compression x ½" BSP Female
Size
10mm
Material
Brass
Finish
Brass
Gas Pressure Rating
1 Bar @ 30°C
Seal Method
Fibre Washer (Not Included)
Sealant Required
No – Fibre Washer Only
Pipe Compatibility
10mm Copper
Suitable Applications
Gas Hob and Appliance Installations
Features
Brass Compression Elbow Fitting for Gas Hobs - 10mm x 1/2" BSP FM Features
90° Elbow for Tight Spaces: Turns the connection at the appliance where a straight fitting won't fit.
10mm Compression x ½" BSP Female: Joins 10mm copper pipe to a ½" BSP male appliance inlet.
Fibre Washer Seal: Seals with a dedicated fibre washer (required, sold separately), with no sealant needed.
Heat-Free Installation: No soldering or naked flame required.
Brass Construction: Durable and corrosion resistant for long-term use.
