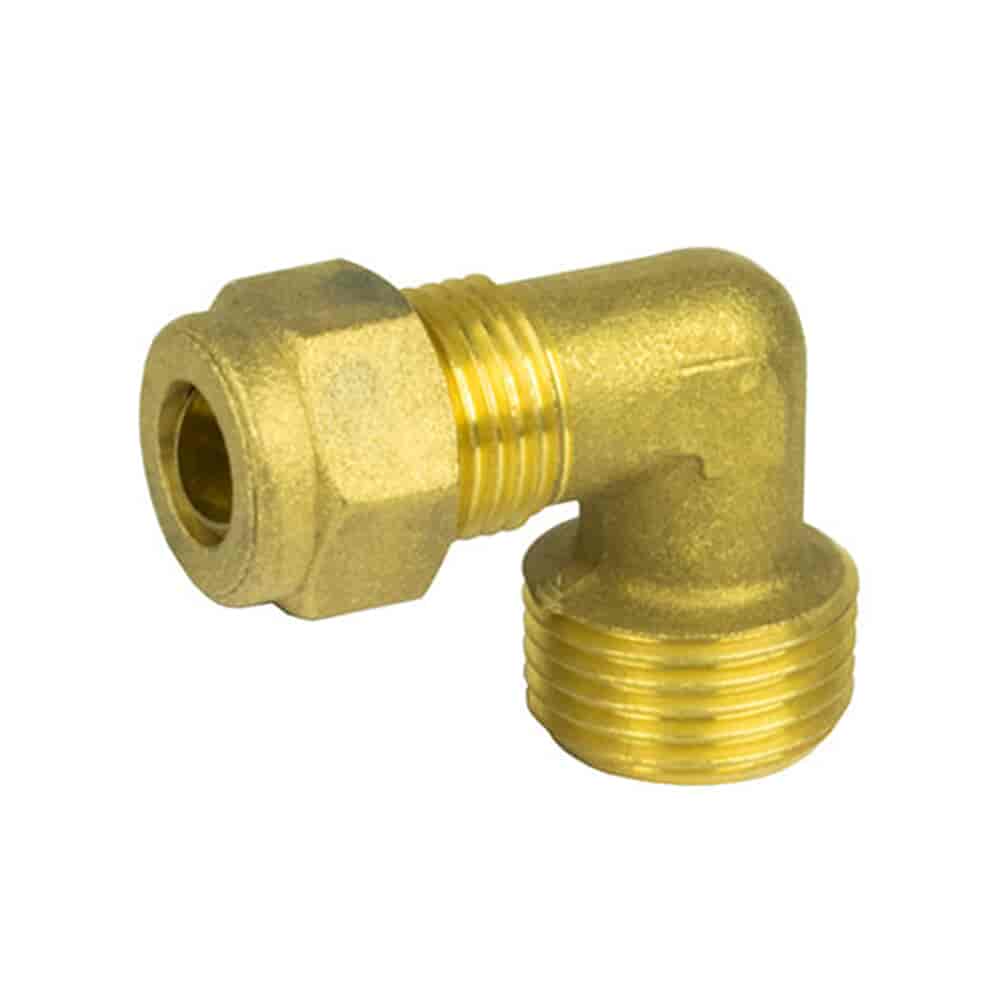

Changing direction in small-bore pipework without soldering is often the whole point in a tight space or anywhere a naked flame isn't allowed. The Brass Compression Elbow – 10mm Compression x 1/2" BSP Male gives a 90° bend between 10mm copper pipe and a 1/2" BSP female threaded fitting, using a mechanical compression seal that needs no heat.
Made from brass and manufactured to BS EN 1254-2, this elbow is WRAS approved and suitable for hot and cold water, heating systems, and low-pressure gas, working with BS EN 1057 copper tube and other compatible pipe materials. It's rated to 1 bar at 30°C for gas, 7 bar at 30°C for compressed air, and 25 bar for water between 0°C and 95°C.
Small-bore pipework leaves little room to work, and a heat-free elbow means no torch, no flux, and no fire risk in a cramped or heat-sensitive space. WRAS approval and BS EN 1254-2 compliance make it a fitting you can specify with confidence across water, heating, and low-pressure gas work.
Order the Brass Compression Elbow – 10mm x 1/2" BSP Male online today.
| Brand | Hamilton Gas Products Ltd |
|---|---|
| Product Type | Compression Elbow |
| Connection | Compression x BSP Male |
| Size | 10mm Compression x 1/2" BSP Male |
| Material | Brass |
| Finish | Brass |
| Gas Pressure Rating | 1 Bar @ 30°C |
| Compressed Air Rating | 7 Bar @ 30°C |
| Water Pressure Rating | 25 Bar (8–15mm) @ 0–95°C |
| Pipe Compatibility | Copper, Stainless Steel, Low Carbon Steel, Select Plastics |
| Standard/Approval | BS EN 1254-2, WRAS Approved |
| Suitable Applications | Water, Heating, and Low-Pressure Gas (Above Ground) |
