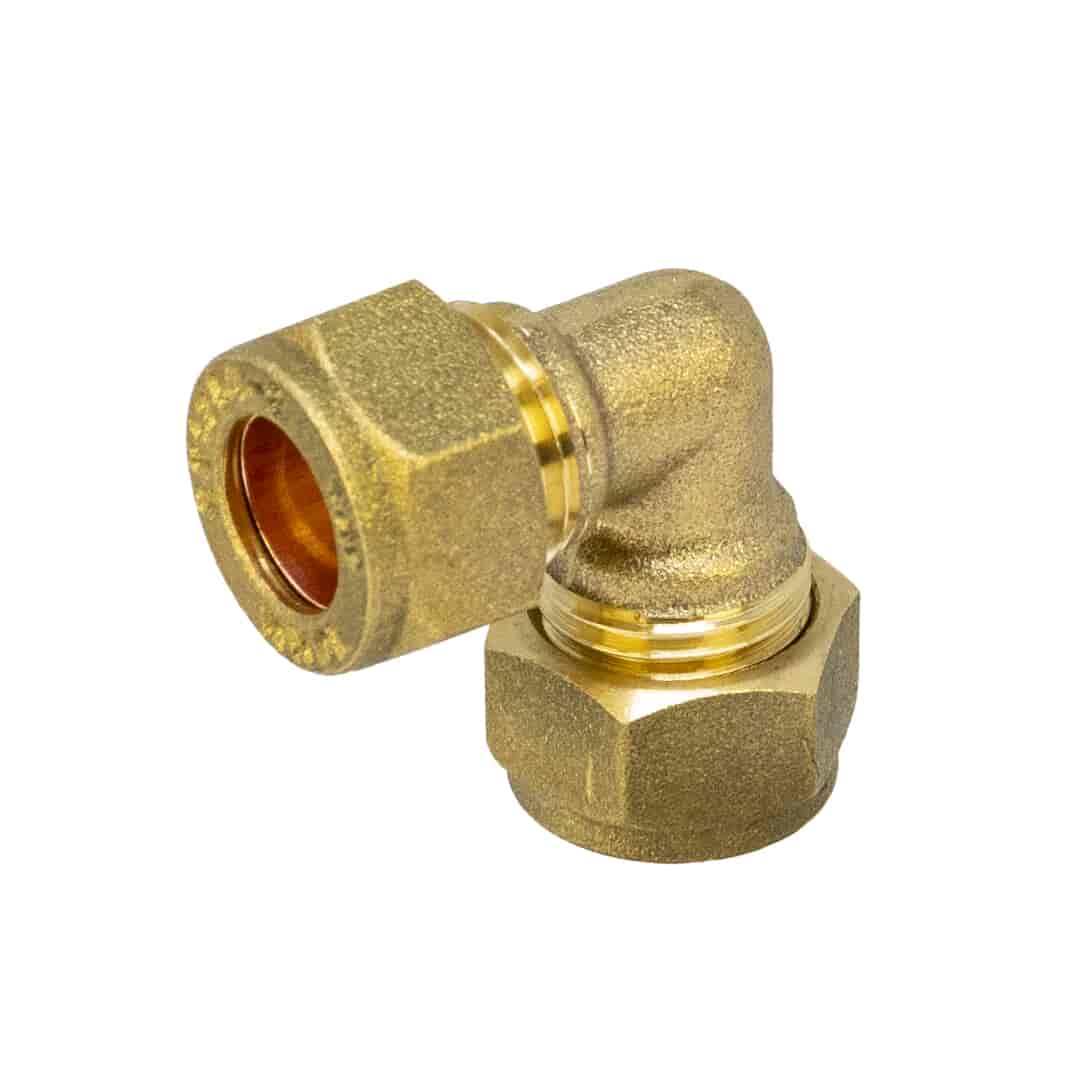

The 10mm Brass Compression Elbow is a heat-free solution for 90° changes in copper or compatible pipework. Ideal for installations where heat can’t be used or space is limited, this mechanical fitting allows quick and secure connections without soldering or welding.
Made from brass and WRAS approved, this elbow fitting is suitable for hot and cold water, low-pressure gas, and compressed air systems. Fully compliant with EN1254-2, it’s compatible with copper, low carbon steel, stainless steel, and plastic pipes (with appropriate inserts).
Size – 10mm x 10mm compression connection
Material – High-quality brass for long life
Connection – Compression fitting (no heat required)
Pressure Ratings – Gas: 1 bar @ 30°C; Air: 7 bar @ 30°C; Water: Up to 25 bar (0–95°C)
Certifications – WRAS Approved, EN1254-2 compliant
Heat-Free Installation – Perfect for tight spaces or heat-sensitive areas.
90° Compression Elbow – Gives a neat bend in pipework for easy routing.
WRAS Approved – Certified for use with potable water systems in the UK.
Multi-Pipe Compatibility – Works with copper, steel, stainless steel and some plastic pipe systems.
EN1254-2 Compliant – Made to plumbing and heating standards.
Hot and cold water supply systems (above ground)
Heating systems and pipe rerouting in confined spaces
Compressed air lines and low-pressure gas distribution
Get flame-free bends in your plumbing or heating system. Buy now for quick fit and long life across many applications.
| Brand | Hamilton Gas Products Ltd |
|---|---|
| Product Type | Compression Elbow |
| Connection | Compression x Compression |
| Size | 10mm x 10mm |
| Material | Brass |
| Finish | Brass |
| Gas Pressure Rating | 1 bar @ 30°C |
| Compressed Air Rating | 7 bar @ 30°C |
| Water Pressure Rating | 25 bar (8–15mm) @ 0–95°C |
| Pipe Compatibility | Copper, stainless steel, low carbon steel, select plastics |
| Standard/Approval | BS EN 1254-2, WRAS Approved |
| Suitable Applications | Water, heating, oil, and low-pressure gas (above ground) |
Size – 10mm x 10mm compression connection
Material – High-quality brass for long-lasting durability
Connection – Compression fitting (no heat required)
Pressure Ratings – Gas: 1 bar @ 30°C; Air: 7 bar @ 30°C; Water: Up to 25 bar (0–95°C)
Certifications – WRAS Approved, EN1254-2 compliant
