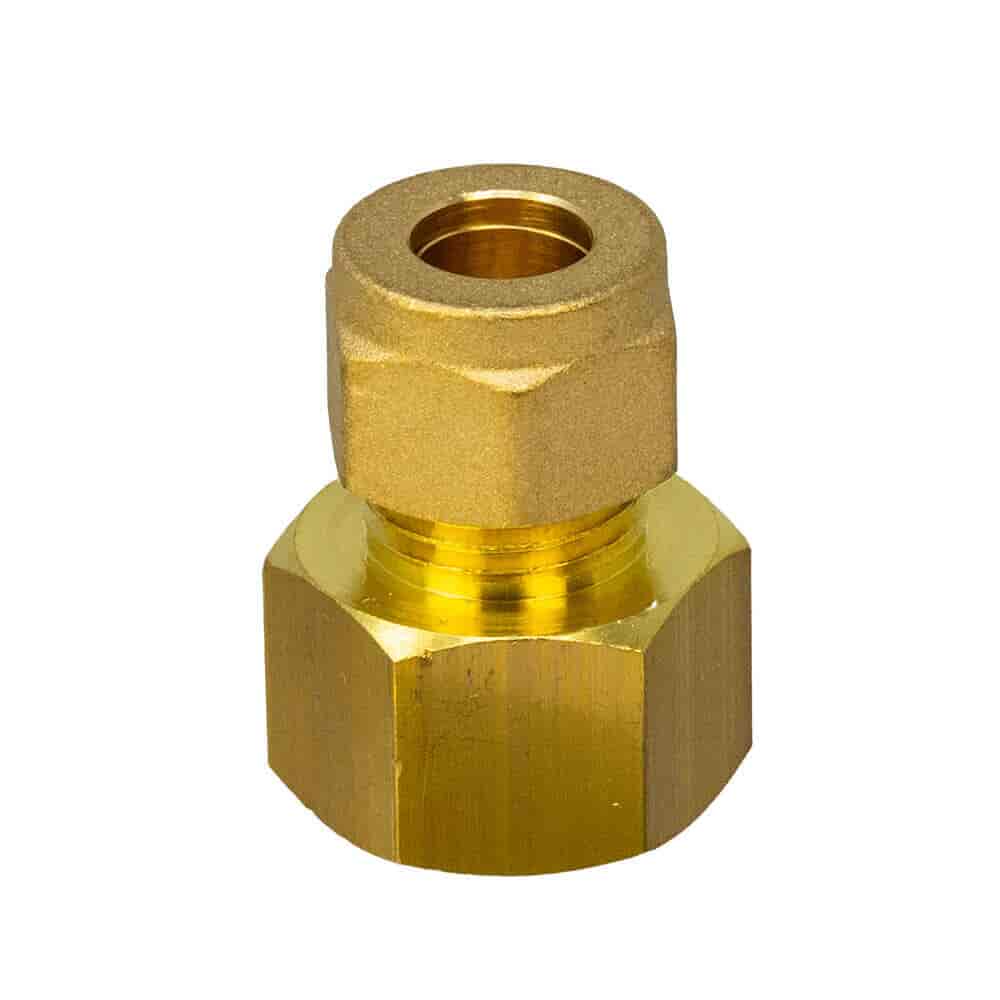

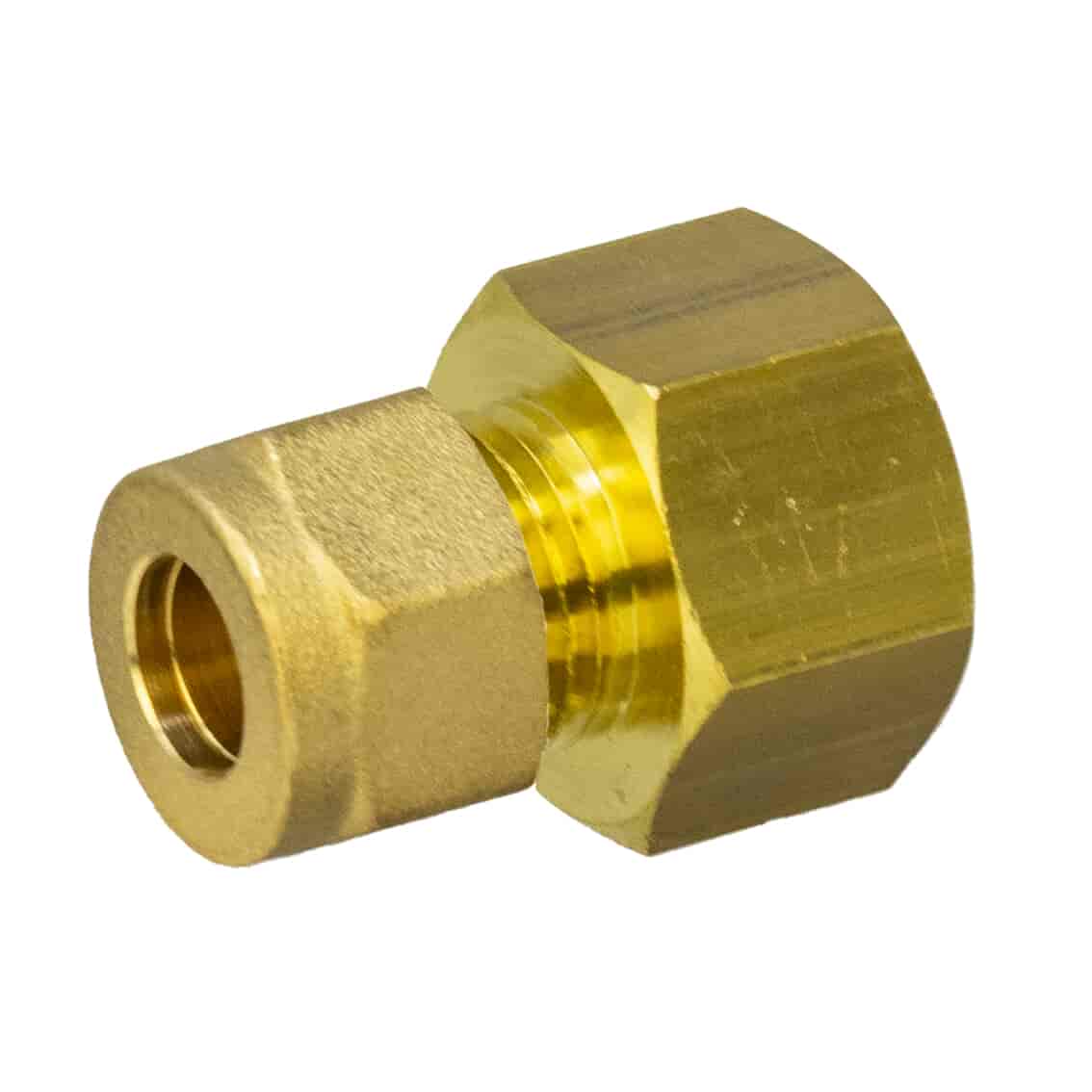

Gas Hob Brass Compression Fitting - 10mm x 1/2" BSP FM
Connecting a gas hob to a 10mm copper supply needs a fitting that suits the appliance end as well as the pipe. This brass compression fitting has a 10mm compression inlet that grips the copper pipe mechanically, and a ½" BSP female outlet that connects to the ½" BSP male threaded inlet found on gas hobs and many other gas appliances. No heat or soldering is required.
The joint is sealed with a fibre washer rather than PTFE tape or sealant. The washer is required and is not included in the box, and no additional sealant is needed or recommended. A matching Gas Hob Fibre Washer is available separately, suited to this fitting and most standard ½" BSP hob connections.
Installation must be carried out by a suitably qualified, registered gas installer.
Key Features & Benefits
Purpose-Made for Gas Hobs: A dedicated fitting for gas hob and appliance connections.
10mm Compression x ½" BSP Female: Joins 10mm copper pipe to a ½" BSP male appliance inlet.
Fibre Washer Seal: Seals with a dedicated fibre washer (required, sold separately), with no sealant needed.
Heat-Free Installation: No soldering or naked flame required.
Brass Construction: Durable and corrosion resistant for long-term use.
Ideal For
Connecting gas hobs and cookers to 10mm copper supply pipes.
Domestic gas installations and kitchen appliance hook-ups.
Installers wanting a clean, regulation-ready appliance connection.
Common Problems This Part Will Fix
Mismatched Pipe and Appliance Connections: Adapts a 10mm copper supply to a ½" BSP male hob inlet in one fitting.
Leaking Hob Connections: A face seal with a dedicated fibre washer replaces improvised sealing.
Soldering Near a Finished Kitchen: The compression joint avoids naked flame close to worktops and units.
Why Buy This Product?
A fitting made for the job means the hob connection is made the way it's meant to be: copper to appliance inlet, sealed with a washer, and no guesswork over tape or paste. Pair it with the matching fibre washer and the installation has everything it needs for a tidy, leak-free kitchen hook-up.
Order the Gas Hob Brass Compression Fitting - 10mm x 1/2" BSP FM online today.
Specification
Gas Hob Brass Compression Fitting - 10mm x 1/2" BSP FM Specification
Brand
Hamilton Gas Products Ltd
Part Number
HA333
Product Type
Gas Hob Compression Fitting
Connection
10mm Compression x ½" BSP Female
Size
10mm
Material
Brass
Finish
Brass
Gas Pressure Rating
1 Bar @ 30°C
Seal Method
Fibre Washer (Not Included)
Sealant Required
No – Fibre Washer Only
Pipe Compatibility
10mm Copper
Suitable Applications
Gas Hob and Appliance Installations
Features
Gas Hob Brass Compression Fitting - 10mm x 1/2" BSP FM Features
Purpose-Made for Gas Hobs: A dedicated fitting for gas hob and appliance connections.
10mm Compression x ½" BSP Female: Joins 10mm copper pipe to a ½" BSP male appliance inlet.
Fibre Washer Seal: Seals with a dedicated fibre washer (required, sold separately), with no sealant needed.
Heat-Free Installation: No soldering or naked flame required.
Brass Construction: Durable and corrosion resistant for long-term use.
