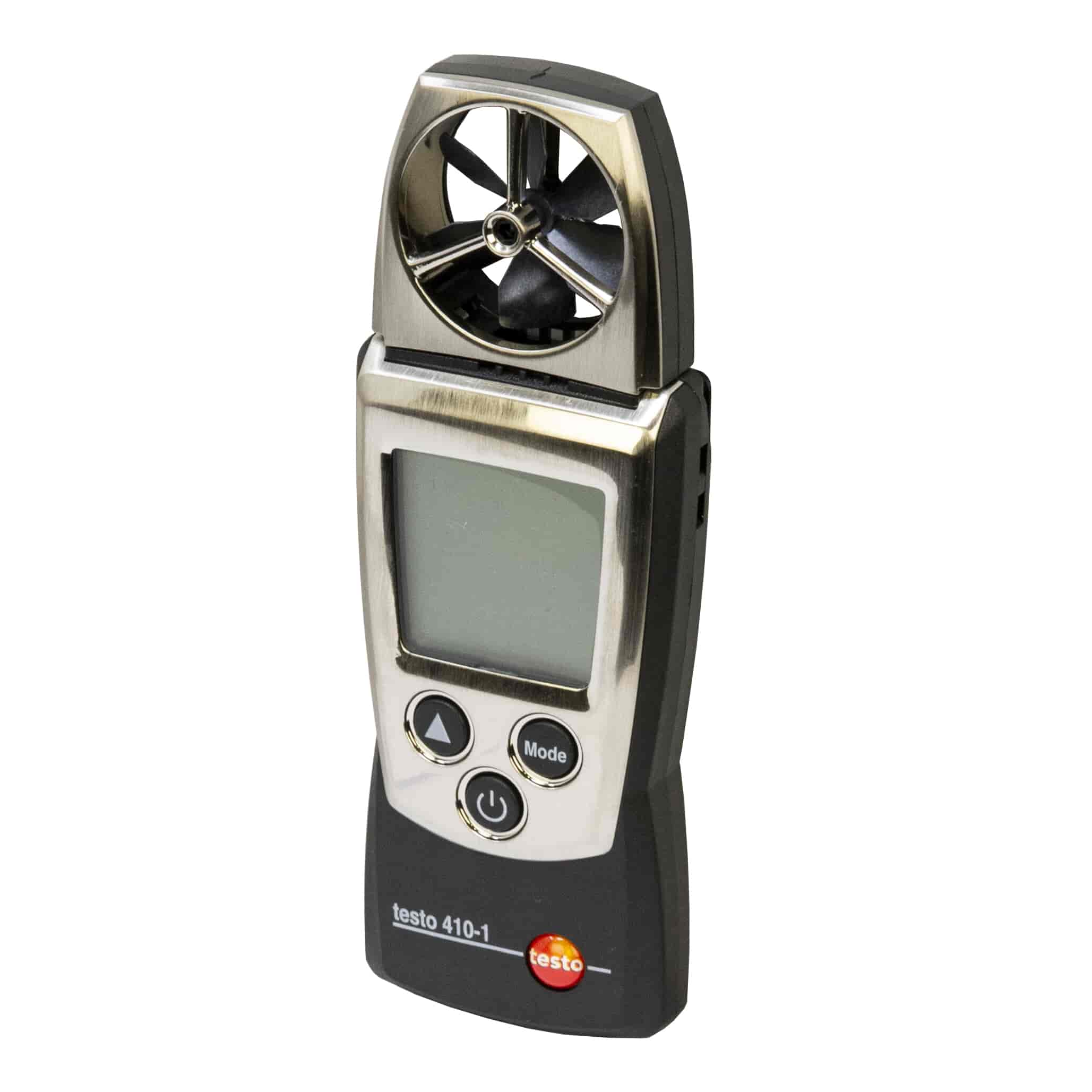

Experience the convenience of the Testo 410-1 Compact Vane Anemometer, designed for quick and precise measurements in any setting. This pocket-sized tool is perfect for fast check measurements at air outlets, in outdoor environments, or wherever accurate air velocity and temperature readings are needed.
Key Features:
Compact and Portable: Easily fits into your pocket, making it ideal for on-the-go measurements.
Versatile Measurement Range: With a range of 0.4 to 20 m/s, it's effective even at low air speeds.
Integrated Vane: Features a permanently mounted 30 mm vane for integral air velocity measurement at ventilation grilles.
Outdoor Suitability: Measures air velocity and temperature, and calculates Beaufort wind force and wind chill temperature for comprehensive environmental assessments.
Enhanced Functionality for Professional Use:
The Testo 410-1 is equipped with several features that enhance its usability and accuracy:
Single-Point Averaging: Provides average air velocity data, essential for accurate measurements at air outlets.
Hold Function: Freezes current readings for comparative analysis, ensuring precise data management.
Max/Min Recording: Captures the highest and lowest values with the touch of a button since the last reset.
Illuminated Display: Ensures readability in low-light conditions, enhancing usability in various environments.
Selectable Units: Offers flexibility with multiple measurement units for air velocity and temperature, including m/s, km/h, fpm, mph, kts, Beaufort, °C, °F, and wind chill.
What's Included:
Testo 410-1 Vane Anemometer
Protective cap
Wrist strap for secure handling
Calibration protocol
Batteries
Specifications:
Measurement Capabilities: Air velocity, air temperature, wind chill, and Beaufort wind force.
Functional Design: Equipped with a 30 mm vane for precise and integral measurement.
User-Friendly Interface: Features like single-point averaging, hold function, and max/min values enhance measurement efficiency.
Ideal Tool for Professionals:
Whether you are assessing ventilation efficiency, monitoring outdoor environmental conditions, or performing routine checks, the Testo 410-1 offers the reliability and precision needed for comprehensive airflow and temperature analysis. This tool is a must-have for HVAC technicians, environmental consultants, and anyone who requires accurate and quick measurements in the field.
Specification
Testo 410-1 Compact Vane Anemometer Specification
General Technical Data
Operating Temperature
-10 to +50℃
Storage Temperature
-20 to +70℃
Battery Type
3 x AAA Mico batteries
Battery Life
100 hours
Dimensions
133 x 46 x 25 mm
Weight
110 g
Protection class
Measuring instrument: IP 40 | Probe: IP20
Housing Material
Plastic
Velocity - Hot Wire
Measuring Range
0.4 to 20 m/s
Accuracy ±1 digit
±(0.2 m/s + 2 % of mv)
Resolution
0.1 m/s
Temperature - NTC
Measuring Range
-10 to + 50℃
Accuracy ±1 digit
±0.5 °C
Resolution
0.1℃
Measuring Rate
0.5 s
Features
Testo 410-1 Compact Vane Anemometer Features
Compact Design: Fits easily into your pocket for convenient, on-the-go measurements.
Wide Measurement Range: Measures air velocity from 0.4 to 20 m/s, suitable for both low and high flow speeds.
Integrated Vane: Features a 30 mm permanently mounted vane for accurate air velocity measurement at ventilation grilles.
Outdoor Functionality: Measures air velocity and temperature, calculates Beaufort wind force, and wind chill temperature.
Single-Point Averaging: Provides average air velocity data for precise measurements at air outlets.
Hold Function: Allows you to freeze current readings for easy comparison.
Max/Min Recording: Captures the maximum and minimum values with a single button press.
Illuminated Display: Ensures readability in low-light conditions.
Multiple Units: Offers flexibility with selectable units for air velocity and temperature, including m/s, km/h, fpm, mph, kts, Beaufort, °C, °F, and wind chill.
Complete Package: Includes protective cap, wrist strap, calibration protocol, and batteries.
User-Friendly: Designed for ease of use with features like single-point averaging, hold function, and max/min value recording.
Professional-Grade Tool: Ideal for HVAC technicians, environmental consultants, and professionals needing quick and accurate air velocity and temperature measurements.
