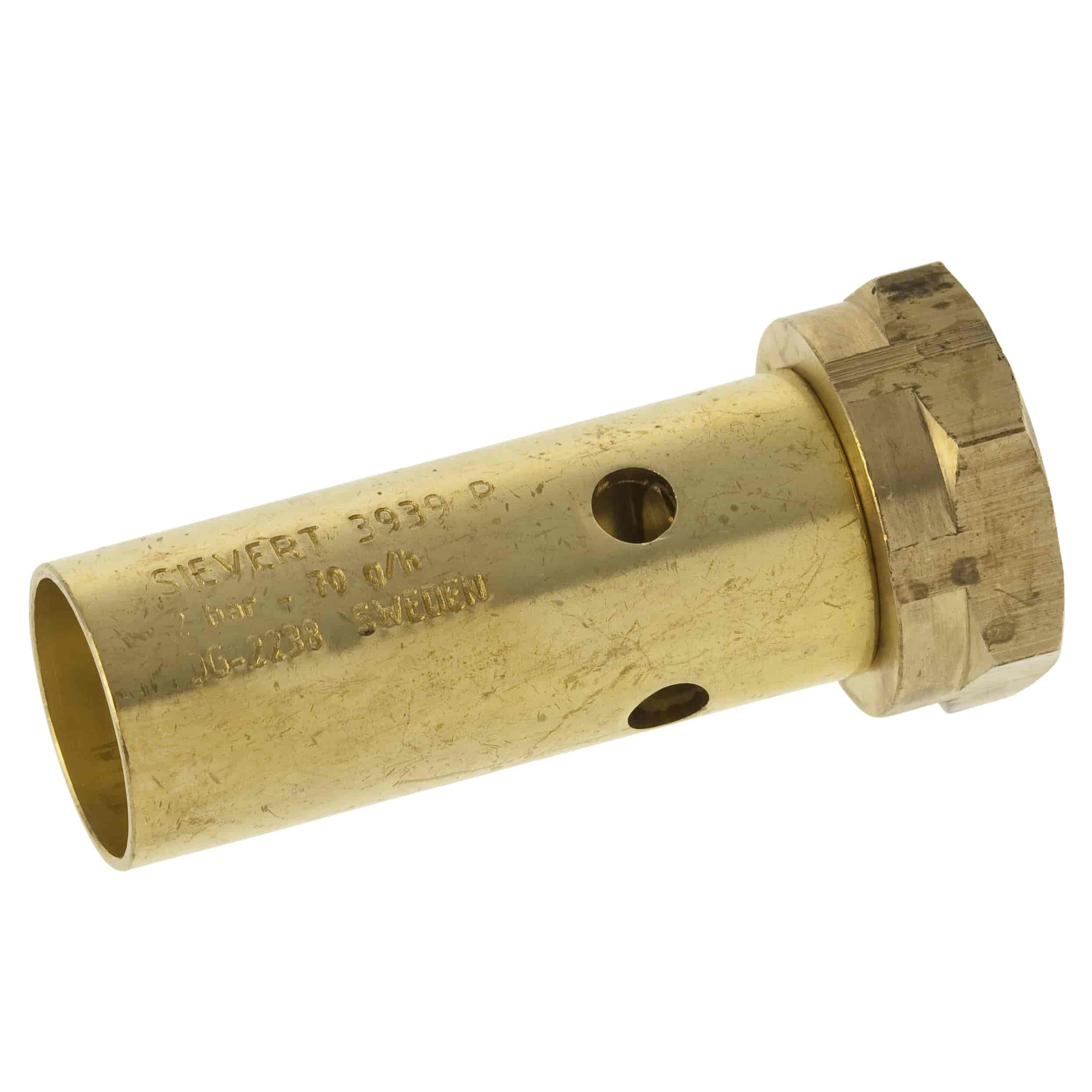

Taking a step up from the 3938 in the Pro 86/88 pin-point range , the 3939 has the same 17mm diameter, but packs in a whopping 3.6 times more output. Its the perfect choice for all sorts of jewellery, gold and silver work, as well as soft soldering pipes up to 12mm in size. Silver soldering is possible up to a nice hot 615°C. This burner is 0.9kW, and the gas consumption at 2 bar is a very reasonable 70g/h. You can connect it up to your Pro 86/88 with the M20 x 1 threaded connection.
Key Features & Benefits
A 0.9kW Pin-Point Flame - More power than the 3938 (0.25kW) and the right call when you need to get the job done quicker
Soft Soldering up to 12mm Pipe - Not much bigger than the 3938 (10mm) in terms of pipe coverage, but perfect for those 10mm and 12mm copper pipe nipples and small fittings
Silver Soldering Up to 615°C - Ideal for jewellery, silversmith and repair work
70g/h Gas Consumption at 2 Bar - Won't break the bank if you're going to be using this for extended periods on your workbench
M20 x 1 Threaded Connection - Just like the other Pro 86/88 neck tubes (3511, 3509, etc.)
17mm Burner Diameter - Same pin-point flame as the 3938, nice and precise
Brass Construction - Robust enough for heavy usage in the workshop.
Ideal For
Jewellery work - whether you're working with gold, silver or something else precious
Repair work which needs a bit more power than the 3938
Soft soldering pipes up to 12mm - no problem
Pro 86 and Pro 88 owners looking to step it up
Anyone moving on from the 3938 for slightly bigger work
All the power of the 3938, but with more precision and a bigger punch. Order the Sievert 3939 Pin-Point Burner today and get it delivered in a flash.
Specification
Sievert 3939 Pin-Point Gas Blow Torch Burner Specification
Brand
Sievert
Article Number
393902
Flame Type
Pin-point
Burner Diameter
17mm
Heat Output
0.9 kW at 2 bar
Working Pressure
2 bar
Gas Consumption
70 g/h at 2 bar
Soft Soldering Capability
Up to 400°C – max pipe diameter 12mm
Silver Soldering Capability
~615°C
Burner Connection
M20 × 1 – standard Pro 86/88 neck tube thread
Material
Brass
Compatible Handles
Sievert Pro 86 (3486) & Pro 88 (3488)
Suitable Applications
Jewellery soldering, gold & silver work, small component soldering to 12mm
Features
Sievert 3939 Pin-Point Gas Blow Torch Burner Features
0.9kW Pin-Point Flame — More heat than the 3938 (0.25kW) — the right choice when the 3938 is too slow for the work or the joint is slightly larger.
Soft Soldering to 12mm Pipe — Slightly more pipe coverage than the 3938 (10mm) — suitable for 10mm and 12mm copper pipe nipples and small fittings.
Silver Soldering to ~615°C — Suitable for gold and silver jewellery, silversmithing and repair work.
70g/h Gas Consumption at 2 Bar — Economical for extended bench sessions.
M20 × 1 Threaded Connection — Connects directly to standard Pro 86/88 neck tubes (3511, 3509 etc.)
17mm Burner Diameter — Same compact head as the 3938 — precise and controllable.
Brass Construction — Durable for sustained professional workshop use.
