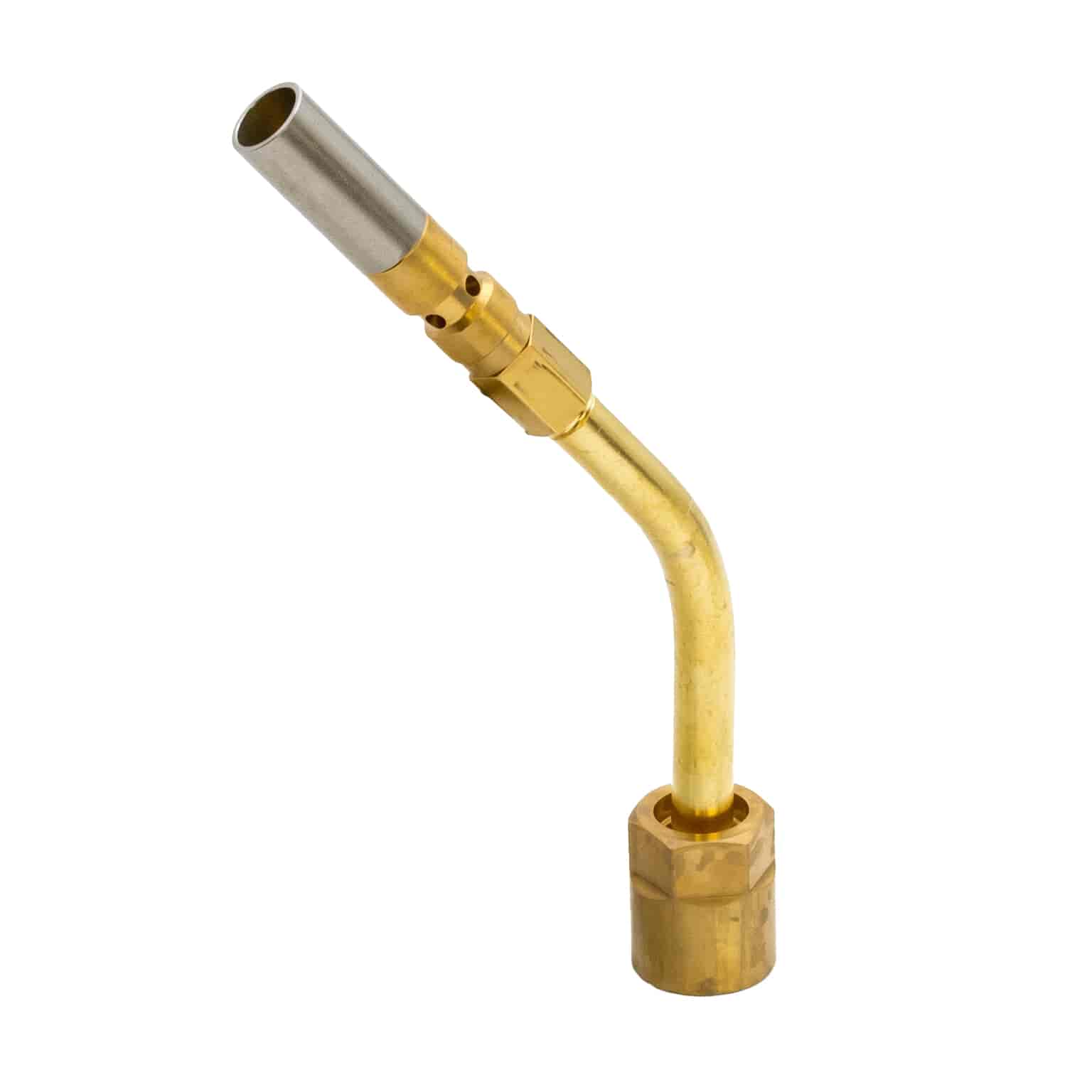

The smallest Sievert nozzle - the best gas-and-air flame you can expect before needing to step up to oxy-gas for the really fine details. This thing comes in two parts: the 8842 needle point burner and 3501 neck tube, which clip directly onto any Sievert Pro handle you might have. In normal use, the flame is teeny-tiny - roughly the same size as a finely sharpened pencil. Soft soldering gets you to 400 degrees, and silver soldering to 615 degrees. 0.25kW of power, and you get 20g of gas per hour at 2 bar.
The 3537 is what pros in the jewellery trade reach for when they need the absolute finest precision with their Sievert Pro system. Pair the 8842 needle point burner with the 3501 Lightline neck tube, and you can attach the whole shebang to a Sievert Pro 86 (3486) or Pro 88 (3488) handle. You'll get an ultra-fine, super-stable needle flame roughly 1.5 inches long - and that's precise enough for making all sorts of intricate jewellery repairs, setting work, filigree, and any other sort of delicate gold and silver fiddly bits.
It's the smallest nozzle in the whole Sievert gas torch system - and its the smallest gas-and-air nozzle you can actually buy. For anything more precise, an oxy-gas system is what you need. Running at a miserly 20g/h at 2 bar - that means it wont break the bank even when you're working for hours on end. The 615°C silver soldering range covers just about everything you could possibly want to do with a flame that size
Key Features & Benefits
Smallest Sievert Nozzle - This is the best propane-and-air flame in the Sievert system - the point where you start to need oxy-gas for the fine work.
Pencil-Width Needle Flame - The flame, in normal use, is roughly the same width and length as a just-sharpened HB pencil - precise enough to get in all the tight spots.
Silver Soldering to 615°C - Do silver and gold work - or soft soldering up to 400°C with this thing.<
Comes in Two Pieces - The 8842 needle point burner and 3501 Lightline neck tube - clip them onto any Sievert Pro 86 or Pro 88 handle you've got lying around.
0.25kW + 20g/h - Very low gas consumption for those long sessions.
Suits Sievert Pro 86 & Pro 88 Handles - The whole assembly clips right onto the standard Pro handle.
Max Pipe Diameter 8mm - Perfect for anything small - like joining pipe nipples.
Ideal for:
Jewellery soldering - gold, silver, you name it
Setting repairs & that intricate filigree work
Working with precious metals
Gold & silver forging and annealing
Soldering electronics & other wee components together with lead
Joining all sorts of small components - pipe nipples, delicate fittings and so on.
Anyone with a Sievert Pro 86 & Pro 88 handle - this thing will work a treat.
In the box:
Sievert 8842 Needle Point Burner (8mm)
Sievert 3501 Lightline Neck Tube (78mm)
If you're looking for the smallest torch flame you can get, the Sievert 3537 Jewellers Burner is the one for the job. Order today for fast delivery.
Specification
Sievert 3537 Jewellers Gas Blow Torch Burner - 8mm Specification
Brand
Sievert
Product Code
3537
Contents
8842 Needle Point Burner & 3501 Lightline Neck Tube
Burner Diameter
8mm (9mm burner diameter per spec sheet)
Heat Output
0.25 kW
Working Pressure
2 bar
Gas Consumption
20 g/h at 2 bar
Soft Soldering Temperature
Up to 400°C
Silver Soldering Temperature
Up to 615°C
Max Pipe Diameter
8mm
Neck Tube Length
78mm
Material
Brass
Compatible Handles
Sievert Pro 86 (3486) & Pro 88 (3488)
Suitable Applications
Jewellery soldering, gold & silver work, PMC, lead soldering, small component joining
Warranty
12 months
Features
Sievert 3537 Jewellers Gas Blow Torch Burner - 8mm Features
Smallest Sievert Nozzle — The finest propane-and-air flame in the Sievert system — the choice before moving to oxy-gas for finer work.
Needle Flame — Pencil-Width — In normal use, the flame is approximately the width and length of a sharpened HB pencil — precise enough for individual jewellery joints.
Silver Soldering to 615°C — Suitable for silver soldering and gold/silver work in addition to soft soldering to 400°C.
Supplied as Two Parts — 8842 needle point burner + 3501 Lightline neck tube — assembled directly onto any Sievert Pro 86 or Pro 88 handle.
0.25kW Output — 20g/h — Very low gas consumption for extended precision bench sessions.
Fits Sievert Pro 86 & Pro 88 Handles — Assembled unit connects directly to the standard Pro handle.
Max Pipe Diameter 8mm — For small component joining and pipe nipple work.
