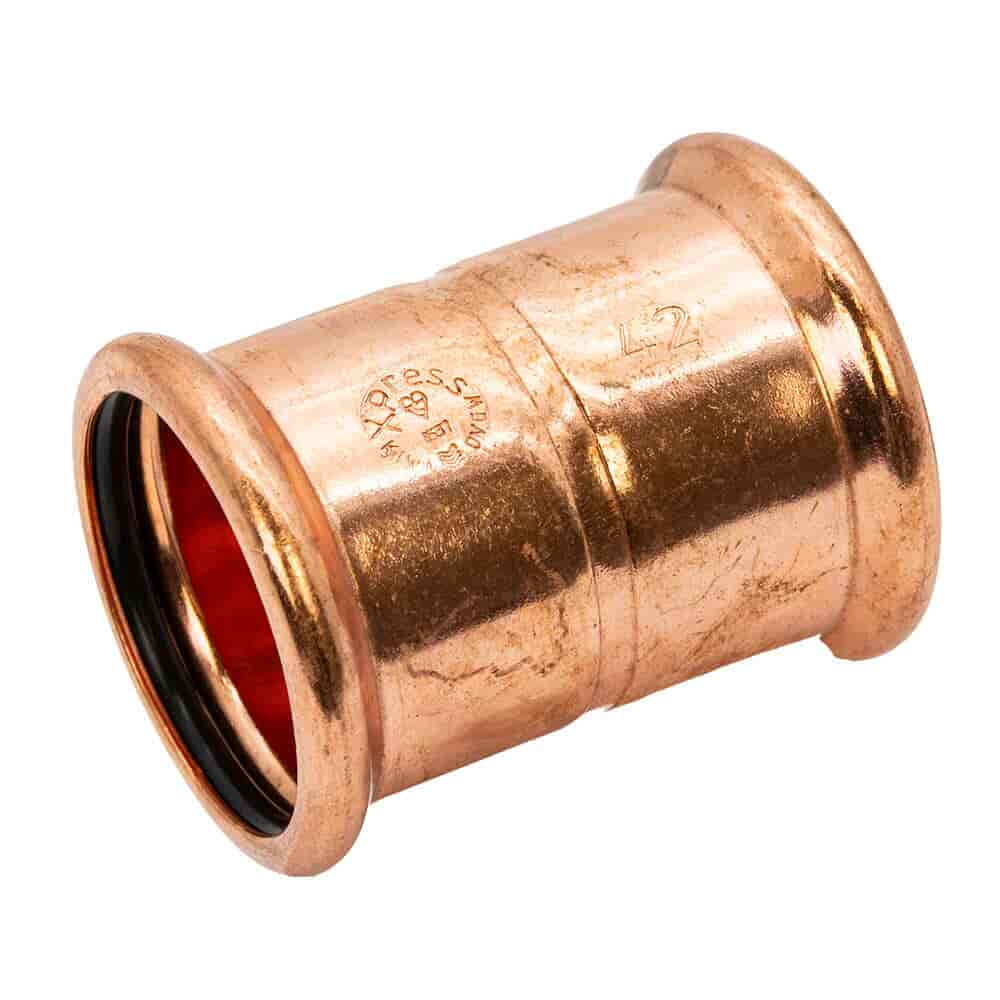

Pegler Yorkshire VSH Xpress Water Straight Coupling - 42mm

In stock
SKU
38034
£10.90 £9.08
Or 3 Interest-Free Payments of £3.63
apple pay
klarna
google pay
paypal
chevron-up
Description

The Pegler Yorkshire VSH XPress stands out as a premier press-fit system, boasting a wide-ranging and adaptable selection suitable for various modern building services. Its design ensures quick, economical, and dependable connections. This innovative and user-friendly system provides the advantages of a no-heat press-fit method, enhancing efficiency and cost savings with each joint made. Its performance is noteworthy, offering a clean, heat-free process that outshines its competitors. The system is ideal for a variety of settings, such as residential complexes, commercial buildings, and public utilities. It melds high performance with a swift, heat-free installation process, presenting a comprehensive system solution.

  • BSI kitemarked
  • WRAS approved
  • Heat free installation
  • 25 years guarantee
Specification

Pegler Yorkshire VSH Xpress Water Straight Coupling - 42mm Specification

Brand Pegler Yorkshire Xpress
Approvals WRAS & KIWA
Kitemark BS 8537:2010
Standards BS EN 1057 R250/R290
Manufactured/Approved to BS EN ISO 9001:2008
Connection Type M Press
For use with Water
Max. Operating Pressure 16 bar
Operating Pressure Working Pressure Range : 16 bar at -24° C to 110° C
Equal/Reducing Equal
Fitting Type Straight Coupling
Material Copper
Size 42mm
Dimensions 50 x 50 x65mm
Application Designed for use on hot and cold water services, vented and unvented closed circuit heating and chilled water applications



Features

Pegler Yorkshire VSH Xpress Water Straight Coupling - 42mm Features

  • BSI Kitemark approved (BS 8537:2010) from 12mm to 108mm
  • Temperature rating from -20°C to 110°C
  • Pressure rating 16 bar across the temperature range
  • Unique Leak Before Press feature ensure any unpressed fittings are identified upon testing
  • Wide range of British and International approvals
  • Rapid jointing technique ensures time and labour saving compared to traditional jointing methods
  • Heat free jointing - "no hot works permits or insurance required".
