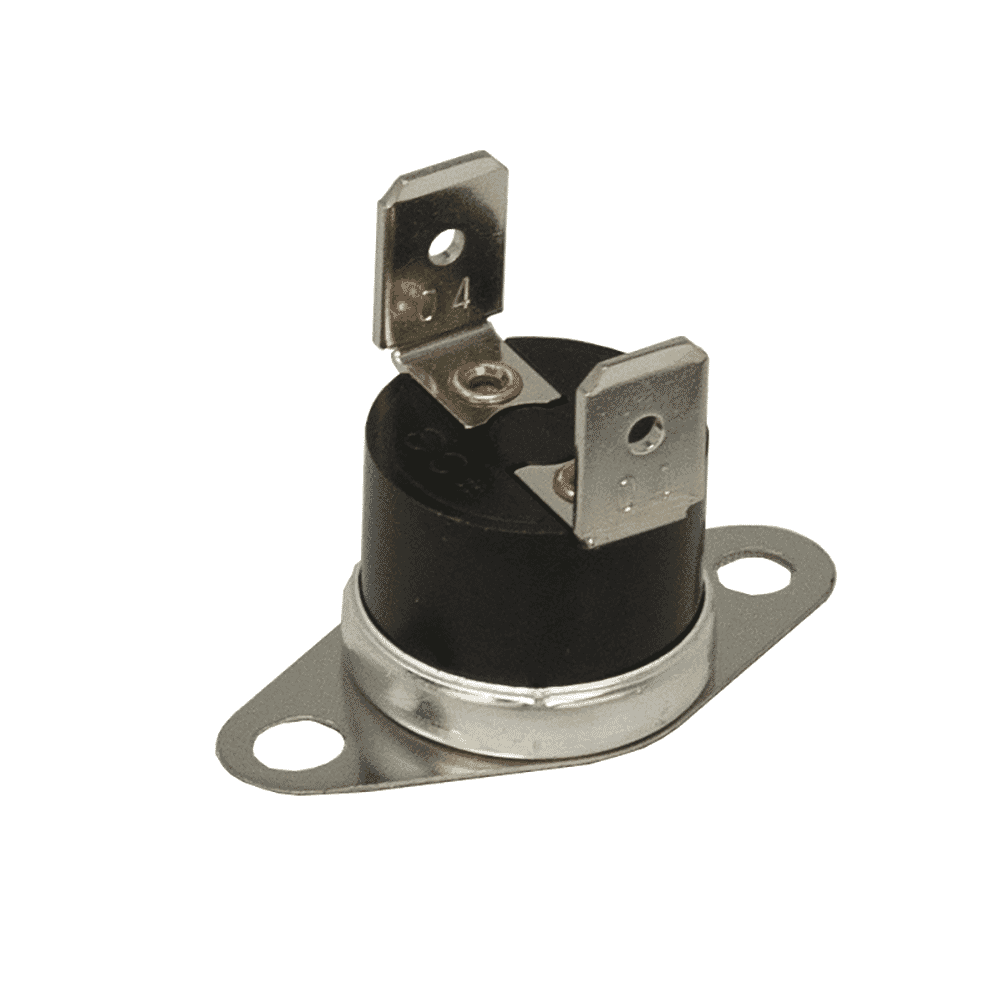

Innovita Gas Water Heater Hi-Limit Thermostat – Primo 6 & Primo 11
The Genuine Replacement Hi-Limit Thermostat for the Innovita Primo 6 and Primo 11 Instantaneous Gas Water Heaters. The Hi-Limit Thermostat is a Safety Cutout Overheat Device; It Cuts Off Gas Supply When the Heat Exchanger Reaches Unsafe Operating Temperature. When it Fails Open, the Appliance Locks Out and Will Not Fire Again. Compatible with Both Models Primo 6 & Primo 11.
Common Problems This Part Fixes
Lock-Out Condition of the Appliance Which Does Not Permit the Burner to Operate After Overheating - The Hi-Limit Thermostat Is a Non Self Resetting Safety Device. If the Appliance Has Overheated and the Thermostat Has Tripped, the Heater Will Not Function Again Until the Thermostat is Reset or Replaced. A Thermostat which Has Been Tripped and Will Not Reset Must Be Replaced.
Will Not Fire Despite No History of Overheating - An Internal Failure of the Hi Limit Thermostat Will Present as a Permanent Lockout - Even Though All Other Components Are Functional, the Burner Will Never Operate.
Recurring Lockout Events During Normal Operation - If the Appliance Is Locking Out Due to the Hi-Limit Thermostat Under Normal Conditions of Use, This May Indicate a Real Issue With Overheating (Blocked Flue, Scale Build Up On the Heat Exchanger, Inadequate Flow Rate), Rather Than a Faulty Thermostat. Before Replacing the Thermostat, Investigate the Root Cause of the Overheating Event.
Damage Found to the Thermostat During Service Inspection - Any Visible Damage Or Corrosion on the Body of the Thermostat Identified During Annual Inspection.
Ideal For
Replacing a tripped or failed hi-limit thermostat causing appliance lockout
Annual service inspection replacement of a degraded thermostat
Gas Safe engineers servicing Innovita Primo 6 and 11 water heaters
Restore safe operation to your locked-out Innovita Primo 6 or 11. The Innovita Primo 6 & 11 Hi-Limit Thermostat is in stock and ready to ship. Gas Safe registered engineer installation required. Note: if the appliance is locking out repeatedly during normal operation, investigate the root cause of overheating before replacing the thermostat.
Specification
Innovita Gas Water Heater Hi-Limit Thermostat - Primo 6 & 11 Specification
