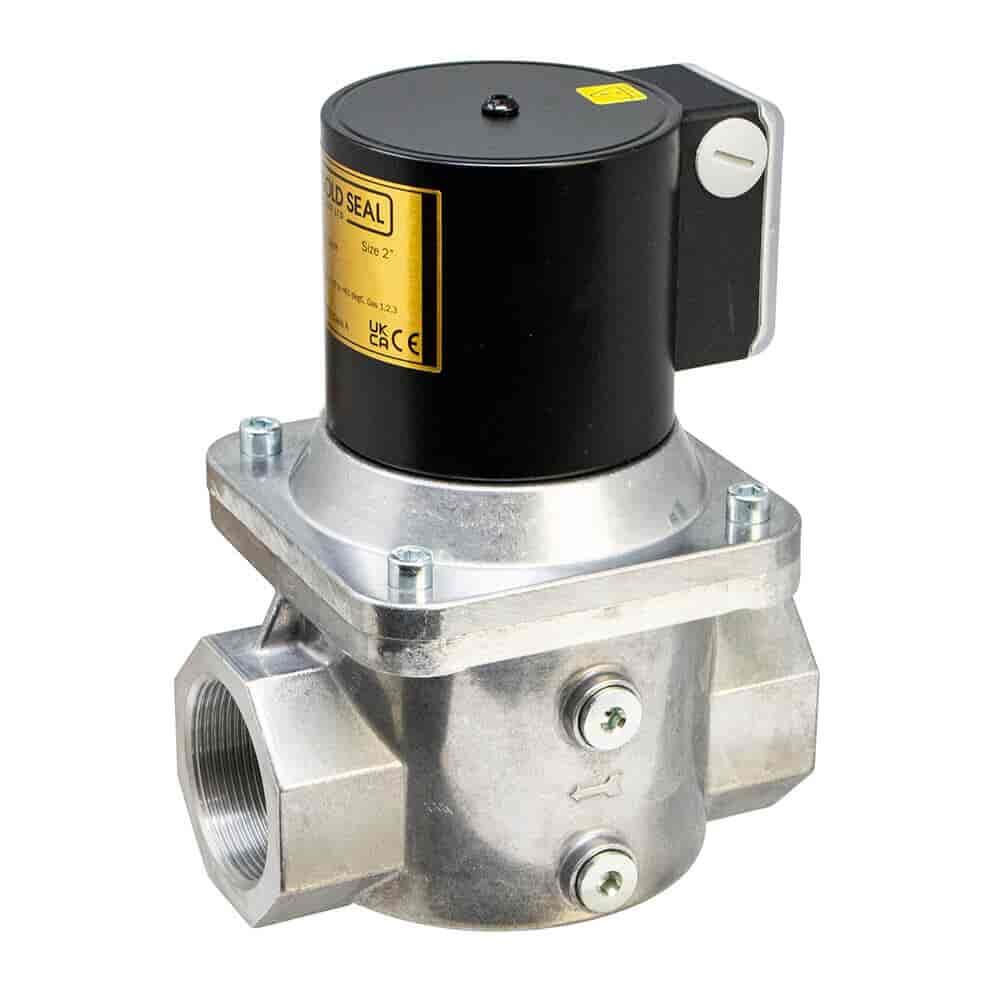

The Gold Seal GSV Solenoid Valve is a premier choice for gas distribution systems, providing reliable isolation and emergency shut-off capabilities. This 2" valve is compatible with various hydrocarbon gases, including natural gas, methane, and liquid petroleum gas, making it versatile for multiple applications.
Key Features:
Auto Reset Functionality: Automatically resets after shut-off, ensuring seamless operation without manual intervention.
Durable Construction: Made from high-quality aluminum alloy, this valve is built to last, offering robust performance in any environment.
Enhanced Safety: Features a blue indicator light on the terminal box, providing a clear visual signal when the valve is energized and operational.
Multiple Applications: Suitable for various uses, including CPI (closed position indicator) or gas proving systems, thanks to the G¼ holes on both sides and at the bottom of the valve body.
Compliance and Protection: Meets EN 161 standards and offers IP54 protection, ensuring high safety and reliability.
Specifications:
Size: 2" BSPT female connection
Voltage: 230VAC, 50/60Hz
Material: Aluminum alloy construction
Protection: IP54 rated
Standards: EN 161 compliant
Benefits:
Wide Compatibility: Suitable for a range of hydrocarbon gases, making it an excellent choice for diverse gas distribution needs.
Emergency Shut-Off: Quickly isolates gas flow in emergencies, enhancing safety for residential, commercial, and industrial applications.
Visual Indicator: The blue neon light provides an added level of safety by indicating the valve's operational status.
Reliable and Efficient: Ensures consistent performance and reduces the risk of gas-related incidents, protecting both property and lives.
Ideal for gas distribution applications, the Gold Seal GSV Gas Solenoid Valve with 2" BSP Female connection ensures your systems are safe, reliable, and efficient.
Specification
Gold Seal Gas Solenoid Shut Off Valve Auto Reset - 2" Specification
Brand
Gold Seal
Approvals
CE, Meets Class A EN161 approval.
Ambient Temperature
15°C to +60°C
Closing Time
Less than 1 Second
Connection
BSP F x F
Size
2"
Dimensions HxWxD
230 x 170 x 142mm
Applicable Gases
Natural Gas, LPG, Air and non-aggressive gases (EN 437, families 1, 2, 3)
Flow Rate Control
Yes
Inlet Pressure
200 mbar
IP Rating
IP 54
Nominal Bore
50mm
Power
230 V AC
Pressure Rating
200 mbar
Reset Type
Automatic
Suitable Applications
Gas Safety Shut-Off Valve, compatible with electrical connections to both alarm systems and emergency stop switches.
Voltage
230V AC (+10% -15%) 50 to 60 Hz
Weight
0.91 kg
Warranty
1 Year
Product Type
Gas Solenoid Valve
Features
Gold Seal Gas Solenoid Shut Off Valve Auto Reset - 2" Features
Auto Reset Feature: Automatically resets after shut-off, ensuring continuous protection.
Durable Aluminum Alloy Construction: Built to last with robust, corrosion-resistant materials.
Visual Indicator: Blue neon light signals when the valve is energised and operational.
Versatile Compatibility: Works with various hydrocarbon gases including natural gas, methane, and LPG.
Emergency Shut-Off Capability: Quickly isolates gas flow in emergencies for enhanced safety.
Multiple Application Ports: G¼ holes on both sides and bottom for CPI or gas proving systems.
High Safety Standards: Compliant with EN 161 and offers IP54 protection.
Reliable Performance: Ensures consistent and dependable operation in diverse environments.
Easy Installation: User-friendly design simplifies the installation process.
Energy Efficient: Operates on 230VAC, 50/60Hz, optimising energy use.
