Gold Seal GSV15G Gas Solenoid Shut-Off Valve – 1/2" | EN 161 Class A | Auto Reset | 230V AC

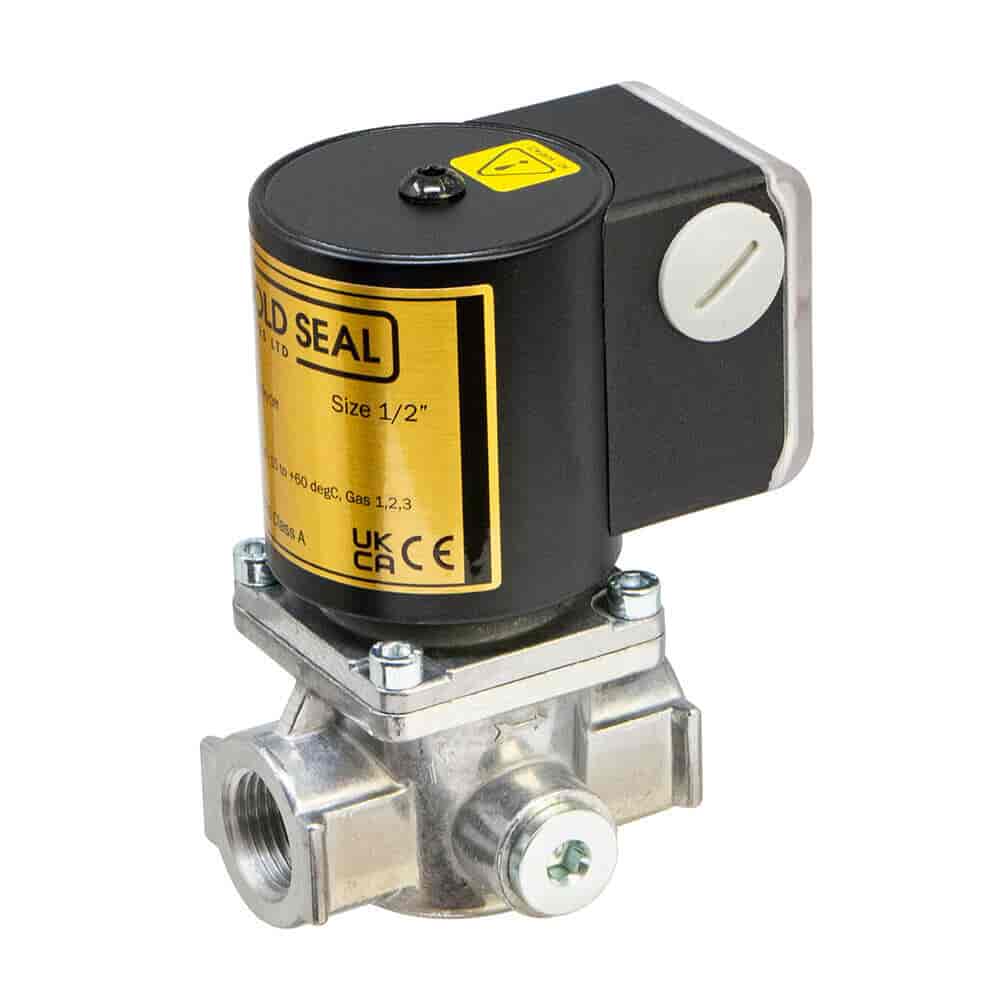

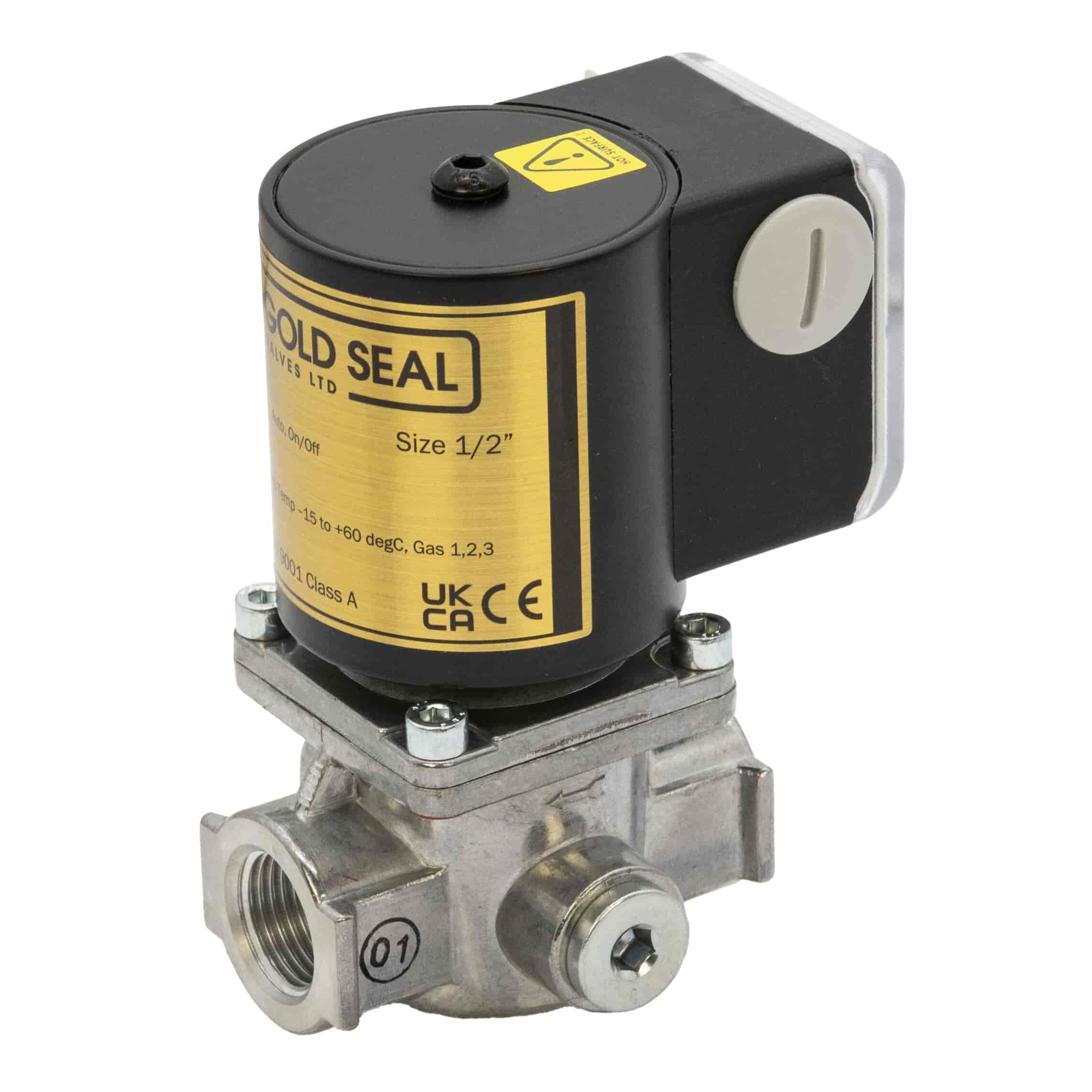

A Gold Seal 1/2" gas solenoid safety shut-off valve that automatically resets itself when power comes back on. EN 161 Class A, CE marked, and 230V AC. 15mm nominal bore, 360mbar max inlet, and rated IP54 for protection against the elements. For CPI or gas proving connections the valve has G¼ ports on both sides and the bottom. A blue neon light tells you the valve is powered and open. It's made of aluminium alloy and handles natural gas, LPG and non-aggressive gases. The unit itself is 115 × 71 × 72mm and weighs 0.91kg. Comes with a 1 year warranty.
The GSV15G is a big bore gas solenoid valve, its 15mm nominal bore is a lot bigger than the Elektrogas 1/4" range – 15mm compared to a paltry 4mm – so you might want to think about it for use on your gas distribution mains and in commercial kitchens where you really need a good flow rate. Like the smaller versions, it's normally closed and fails safe (it will shut itself off if the power goes), and the auto reset means it will spring back open when the power is restored.
Those big G¼ ports on the side and bottom of the valve are useful for commercial kitchen and interlock applications – you can plug in a CPI switch to give you a remote readout on the valve's position, or hook it into a gas proving system circuit. That makes this valve a good choice for installations that have to meet BS 6173 requirements for gas proving on your appliances (the ones that don't have a flame failure device).
Key Features & Benefits
15mm Bore - 1/2" connection so it can handle higher flow rates than those tiny 1/4" valves - ideal for big commercial installations.
Normally closed - auto resets itself - fails safe on power loss. Automatically reopens when power comes back on - no fiddling with a reset switch.
Class A, CE marked for European standards - EN 161 is the European standard for shut-off valves in gas systems and this valve meets it.
G¼ Ports on both sides and bottom - useful for linking in CPI switches or gas proving system circuitry - perfect for BS 6173 compliant installs.
Blue neon light on the front - so you can see at a glance when the valve is powered and open.
360mbar is the maximum inlet pressure
230V AC power – usual sort of voltage
Closes in about a second
IP54 - built to withstand the elements
Made from aluminium alloy - tough and light
Operates in temps from 15°C to 60°C
works with natural gas, LPG and non-aggressive gases (EN 437 groups 1, 2, 3)
Ideal For
Commercial kitchen gas shut off and isolation valves
Gas proving circuits (thanks to those handy G¼ ports)
Isolating boiler houses and commercial gas distribution systems
Fitting in with alarm systems and emergency stops in big installations
Ideal for gas distribution applications, the Gold Seal GSV Gas Solenoid Valve with 1/2" BSP Female connection ensures your systems are safe, reliable, and efficient. Order today.
Specification
Gold Seal Gas Solenoid Shut Off Valve Auto Reset - 1/2" Specification
