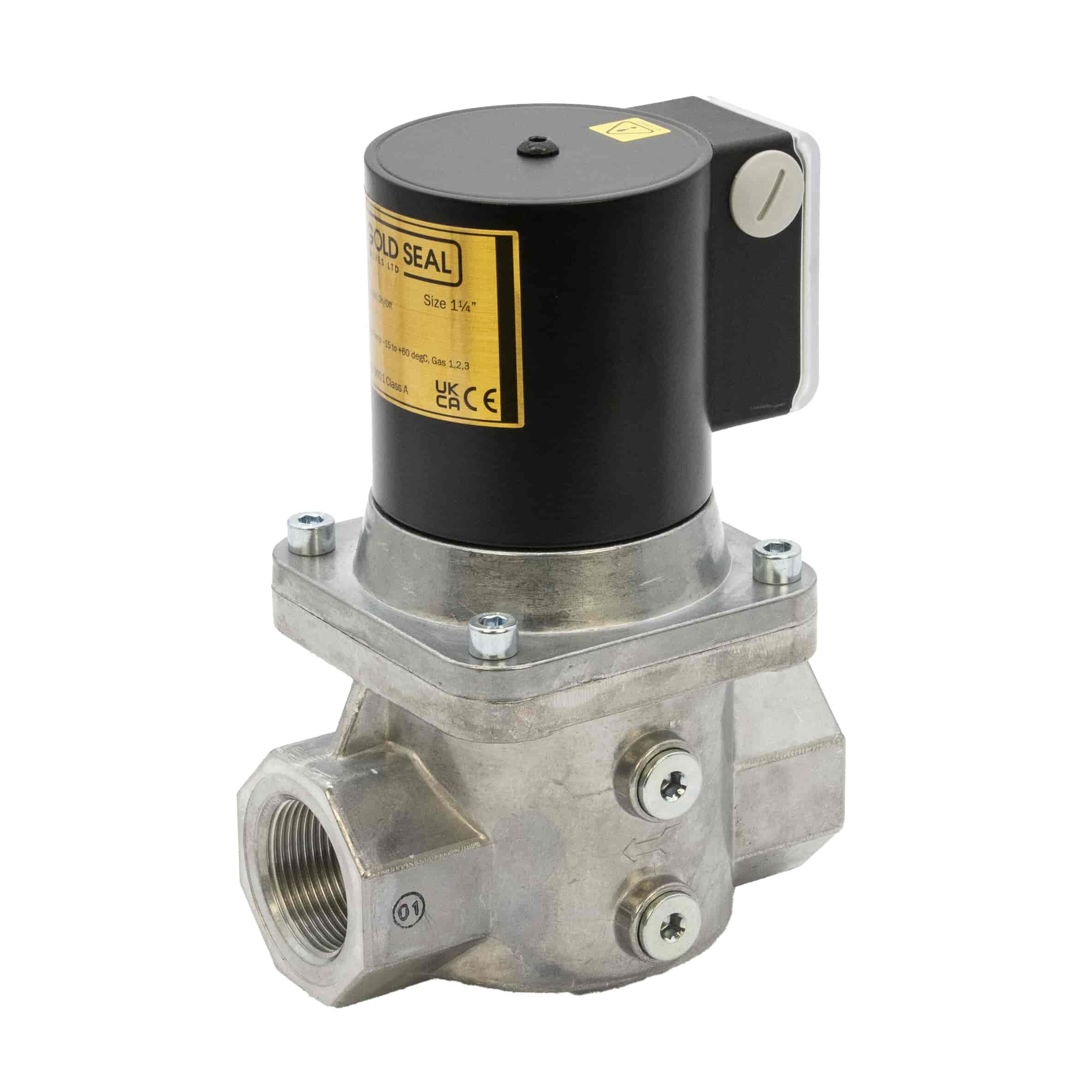

Gold Seal GSV32G Gas Solenoid Shut-Off Valve – 1-1/4" | EN 161 Class A | Auto Reset | 32mm Bore | 230V AC
Gold Seal 1-1/4" gas solenoid safety shut-off valve with automatic reset. EN 161 Class A, CE marked. 230V AC. 32mm nominal bore, 200mbar max inlet, IP54. G¼ ports on both sides and bottom for CPI or gas proving connections. Blue neon indicator light. Aluminium alloy. Natural gas, LPG and non-aggressive gases. 216 × 149 × 115mm. 1-year warranty.
Key Features & Benefits
32mm Nominal Bore, 1-1/4" Connection For large commercial and industrial gas supply mains requiring a 1-1/4" solenoid valve.
Normally Closed - Auto Reset - Fails safe on power loss. Reopens automatically on power restore.
EN 161 Class A, CE Marked
G¼ Ports - Both Sides and Bottom - For CPI switch or gas proving system connections.
Blue Neon Indicator Light
200mbar Maximum Inlet Pressure - Note: lower than the GSV15G and GSV25G (360mbar) - check installation pressure before specifying.
230V AC (+10%/-15%), 50–60Hz
Closes in Under 1 Second
IP54 Protection
Aluminium Alloy Construction
Ideal For
1-1/4" gas supply main shut-off in large commercial and industrial gas installations
Gas proving systems (via G¼ ports)
Boiler house and industrial gas supply safety isolation
Ideal for gas distribution applications, the Gold Seal GSV Gas Solenoid Valve with 1.1/4" BSP Female connection ensures your systems are safe, reliable, and efficient. Order today.
Specification
Gold Seal Gas Solenoid Shut Off Valve Auto Reset - 1.1/4" Specification
