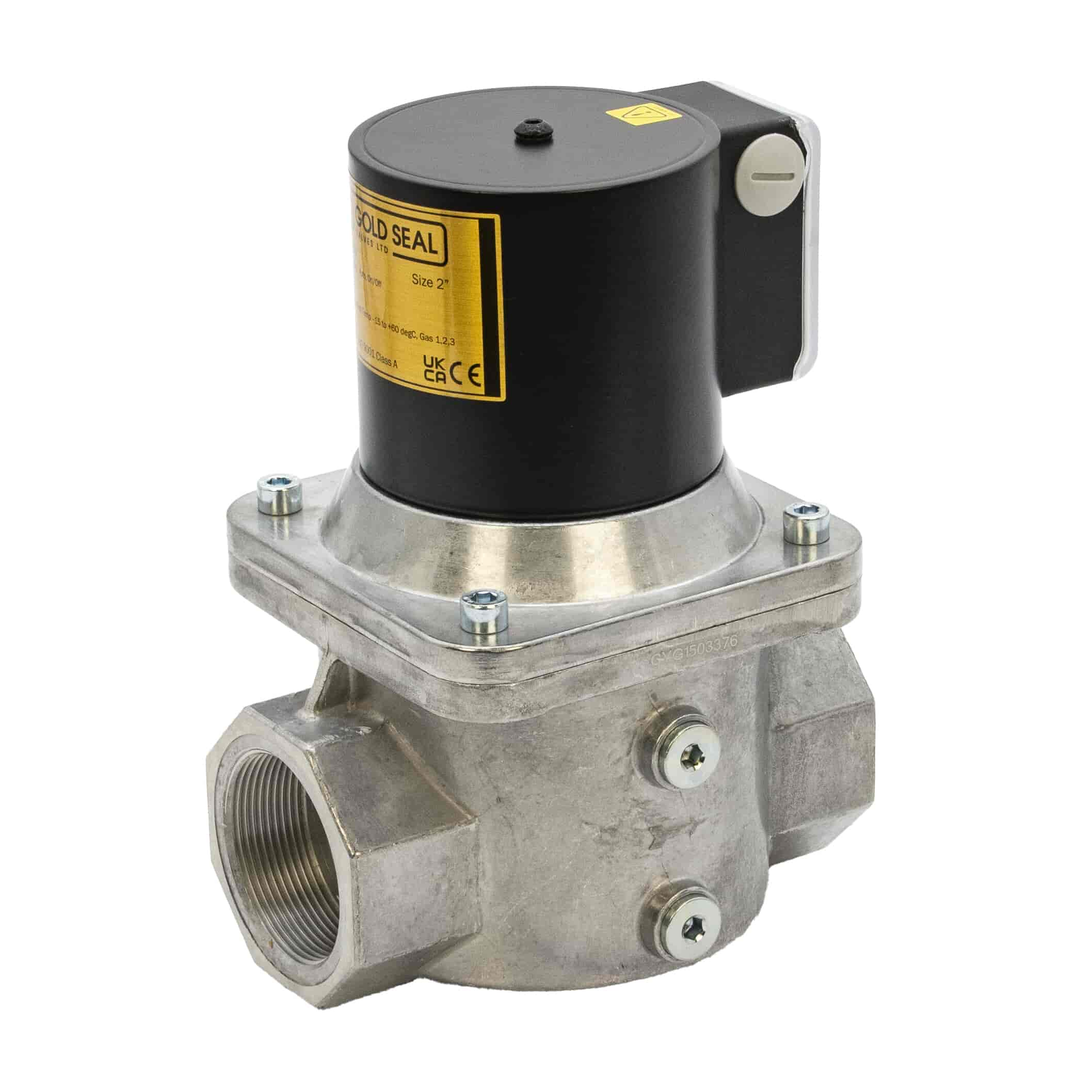

Gold Seal GSV32G Gas Solenoid Shut-Off Valve – 2" | EN 161 Class A | Auto Reset | 50mm Bore | 230V AC
Gold Seal 2" gas solenoid safety shut-off valve with automatic reset. EN 161 Class A, CE marked. 230V AC. 50mm nominal bore, 200mbar max inlet, IP54. G¼ ports on both sides and bottom for CPI or gas proving connections. Blue neon indicator light. Aluminium alloy. Natural gas, LPG and non-aggressive gases. 230 × 170 × 142mm. 1-year warranty.
Key Features & Benefits
50mm Nominal Bore, 2" Connection For large commercial and industrial gas supply mains requiring a 2" solenoid valve.
Normally Closed - Auto Reset - Fails safe on power loss. Reopens automatically on power restore.
EN 161 Class A, CE Marked
G¼ Ports - Both Sides and Bottom - For CPI switch or gas proving system connections.
Blue Neon Indicator Light
200mbar Maximum Inlet Pressure - Note: lower than the GSV15G and GSV25G (360mbar) - check installation pressure before specifying.
230V AC (+10%/-15%), 50–60Hz
Closes in Under 1 Second
IP54 Protection
Aluminium Alloy Construction
Ideal For
2" gas supply main shut-off in large commercial and industrial gas installations
Gas proving systems (via G¼ ports)
Boiler house and industrial gas supply safety isolation
Ideal for gas distribution applications, the Gold Seal GSV Gas Solenoid Valve with 2" BSP Female connection ensures your systems are safe, reliable, and efficient. Order today.
Specification
Gold Seal Gas Solenoid Shut Off Valve Auto Reset - 2" Specification
