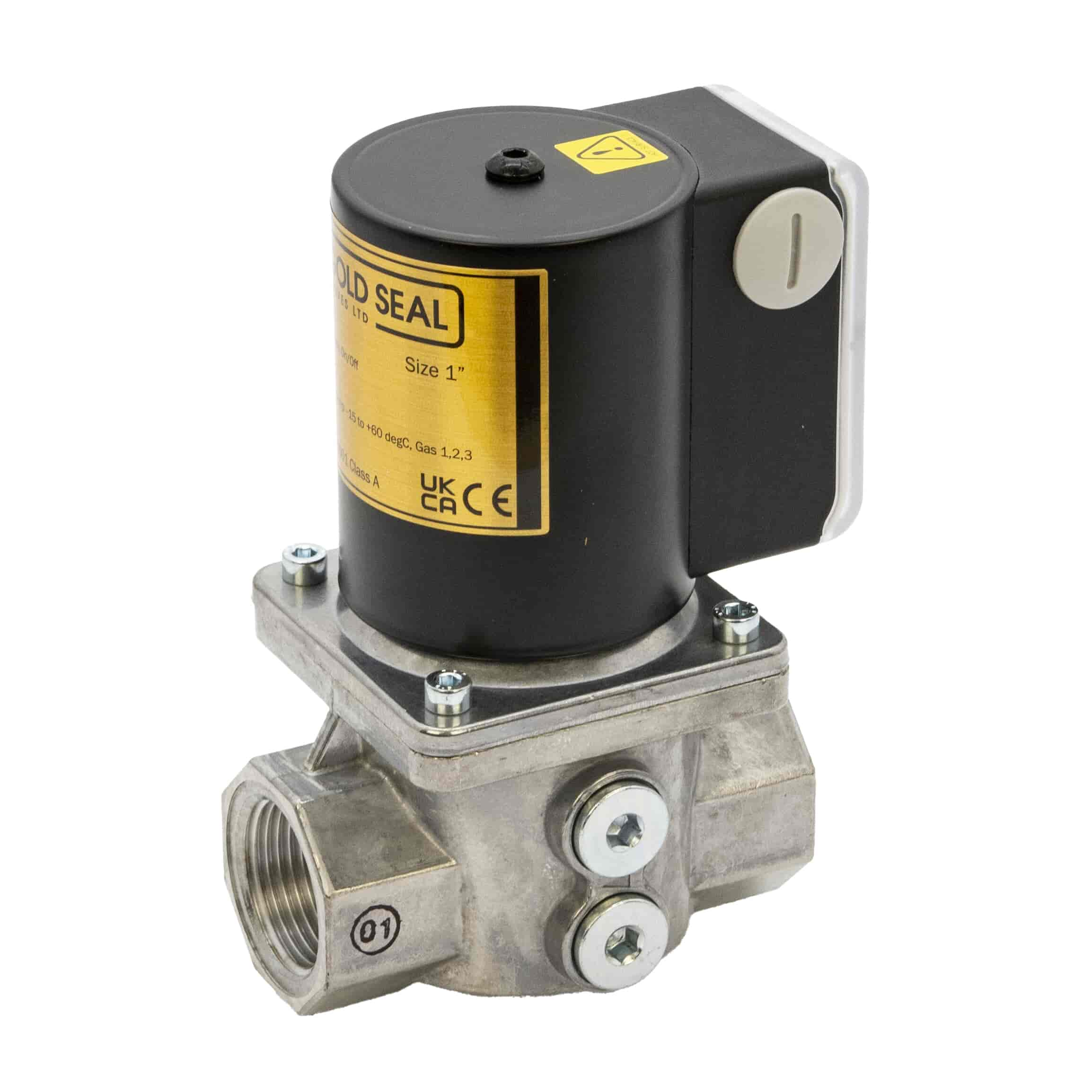

Gold Seal GSV25G Gas Solenoid Shut-Off Valve – 1" | EN 161 Class A | Auto Reset | 25mm Bore | 230V AC
Gold Seal 1" Gas Solenoid safety shut-off valve with Automatic Reset. EN 161 Class A, CE marked. 230V AC. 25mm nominal bore, 360mbar max inlet, IP54. G¼ ports on both sides and bottom for CPI or gas proving connections. Blue neon indicator light. Aluminium alloy. Natural gas, LPG and non-aggressive gases. 158 × 100 × 80mm. 1-year warranty.
The Gold Seal GSV25G is the 1" version of the GSV solenoid valve range — 25mm nominal bore for higher-flow commercial gas supply mains where the 1/2" or 3/4" is insufficient. The same EN 161 Class A approval, auto reset function, G¼ CPI/proving ports, blue neon indicator and aluminium alloy construction apply across the range. Choose the valve size based on pipeline size and flow rate requirements.
Key Features & Benefits
25mm Nominal Bore — 1" Connection — For high-flow commercial and industrial gas supply mains.
Normally Closed — Auto Reset — Fails safe on power loss. Reopens automatically on power restore.
EN 161 Class A, CE Marked
G¼ Ports — Both Sides and Bottom — For CPI switch or gas proving system connections.
Blue Neon Indicator Light — Visual confirmation the valve is energised and open.
360mbar Maximum Inlet Pressure
230V AC (+10%/-15%), 50–60Hz
Closes in Under 1 Second
IP54 Protection
Aluminium Alloy Construction
Natural Gas, LPG, Air and Non-Aggressive Gases (EN 437 Families 1, 2, 3)
Ideal For
1" gas supply main shut-off in commercial and industrial gas installations
Gas proving systems (via G¼ ports)
Boiler house main gas supply safety isolation
Commercial kitchen interlock on larger gas supply mains
Ideal for gas distribution applications, the Gold Seal GSV Gas Solenoid Valve with 1" BSP Female connection ensures your systems are safe, reliable, and efficient. Order today.
Specification
Gold Seal Gas Solenoid Shut Off Valve Auto Reset - 1" Specification
