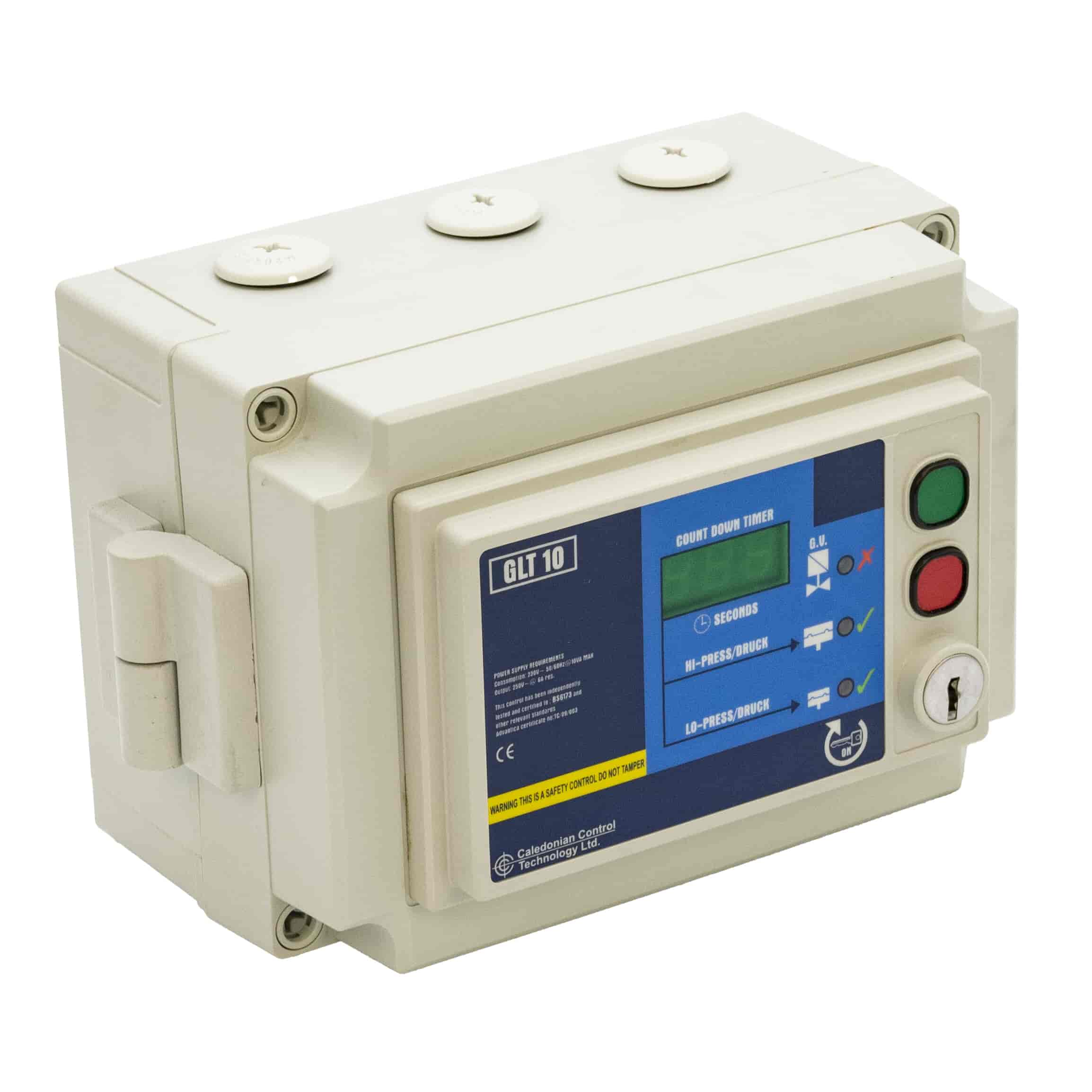

Caledonian Controls GLT10 Gas Proving System – BS 6173 | DW172 | Commercial Kitchen Gas Safety
Gas proving system for commercial kitchens — required under BS 6173 when any appliance without a flame failure device (FFD) is installed. The GLT10 tests the gas system for leaks before allowing gas to flow to appliances. Multiple operating modes including the 'weep' system required by BS 6173 and described in IGE document IM20. Standalone and systems integration versions. Certified accessory range available. CE marked. IP65. 2-year warranty.
BS 6173 requires a gas proving system in any commercial kitchen where at least one appliance does not have a flame failure device. A plain gas interlock (such as the Banico ISP-3 or Caledonian EMX range) confirms that the extraction fan is running before allowing gas — but it does not test the gas system for leaks. A gas proving system adds a leak detection cycle: before gas is allowed to flow to appliances, the system pressurises the gas distribution pipework, holds the pressure for a set period, and confirms no pressure drop has occurred. Only when the integrity of the system has been confirmed does it allow gas to the appliances.
The GLT10 operates in several modes to accommodate different installation requirements, including the 'weep' system described in IGE document IM20 — this mode allows a controlled weep of gas past the proving valve to simulate normal gas consumption during the proving cycle, which is required for certain installation configurations. The GLT10 is available in standalone versions (with its own control panel) and systems integration versions (for use within a broader kitchen ventilation and interlock system). A full range of certified accessories is available: gas pressure switches, charging valves and venting valves.
When Is a Gas Proving System Required?
BS 6173 requires gas proving when any appliance in the kitchen does not have a flame failure device (FFD). This applies most commonly to:
Small gas rings and traditional Chinese wok burners without FFD
Older grills and ovens not equipped with FFD
Any appliance where the gas tap can be left open without the burner being lit
A gas proving system tests the entire gas distribution system for leaks before each service, providing a higher level of safety than extraction interlock alone — and will also detect a gas tap that has been left open without ignition.
Key Features & Benefits
BS 6173:2001 & DW172 Compliant - Meets all mandatory requirements for commercial kitchen gas proving installations.
Exceeds Current Standards - Designed to meet and exceed BS 6173 requirements, not merely comply.
Multiple Operating Modes - Including the 'weep' system required by BS 6173 and described in IGE document IM20.
Standalone and Systems Integration Versions - Can operate independently or integrate with Caledonian EMX interlock systems and building management systems.
Certified Accessory Range - Compatible gas pressure switches, charging valves and venting valves available separately.
IP65 Protection - Suitable for commercial kitchen environments.
CE Marked - Complies with low voltage directive and EMC emissions.
2-Year Manufacturer's Warranty
Ideal For
Commercial kitchens with any appliance not fitted with a flame failure device
Chinese restaurants and takeaways with traditional wok burners without FFD
Kitchens with older equipment (grills, ovens) not equipped with FFD
New kitchen builds where future installation of non-FFD appliances is anticipated
Installations requiring both extraction interlock and gas proving compliance
BS 6173 gas proving for commercial kitchens with non-FFD appliances. In stock and ready to ship.
Specification
Caledonian Controls GLT10 Gas Proving System Specification
Manufacturer
Caledonian Controls
Model
GLT10
Product Type
Gas Proving System
Compliance Standards
BS 6173:2001 & DW172
Operating Modes
Multiple – including 'weep' system (BS 6173 / IGE IM20)
Caledonian Controls GLT10 Gas Proving System Features
BS 6173:2001 & DW172 Compliant - Meets all mandatory requirements for commercial kitchen gas proving installations.
Exceeds Current Standards - Designed to meet and exceed BS 6173 requirements, not merely comply.
Multiple Operating Modes - Including the 'weep' system required by BS 6173 and described in IGE document IM20.
Standalone and Systems Integration Versions - Can operate independently or integrate with Caledonian EMX interlock systems and building management systems.
Certified Accessory Range - Compatible gas pressure switches, charging valves and venting valves available separately.
IP65 Protection - Suitable for commercial kitchen environments.
CE Marked - Complies with low voltage directive and EMC emissions.
2-Year Manufacturer's Warranty
