Anton Sprint Pro 5 Multifunction Flue Gas Analyser – With NO/NOx Sensor | Bluetooth | BS 7967 | EN 50379 BSI Tested
⚠ Made to Order - Typical lead time 2–3 weeks. Please contact us for an exact delivery date before ordering. Not eligible for cancellation or return due to bespoke sensor configuration.
The Anton Sprint Pro 5 is for engineers who need to measure nitrogen oxides (NO and NOx) alongside the standard combustion gases. NOx measurement is increasingly relevant for boiler types and combustion systems where nitrogen oxide emissions are a regulatory or performance concern, and the dedicated NO sensor gives that reading in the same flue gas analysis session as CO, O₂ and the calculated values.
Everything else works the same as the rest of the Sprint Pro range: built-in pressure testing for let-by and tightness checks, gas leak detection via the included Anton Gas Pro Detector with LED searchlight, Bluetooth connectivity to the Anton Sprint Mobile app, and BS 7967 CO sweep and room safety reporting. CO₂ is still calculated rather than directly measured on the Pro 5 — if direct ambient CO₂ measurement is needed as well as NOx, the sensor can be added as a future upgrade, or you can step up to the Pro 6.
Double water-stop technology gives robust condensate protection, and the housing is made from the same material used in motorcycle crash helmets. It's BSI independently tested to EN 50379-1:2012 and EN 50379-3:2012, suitable for BS 7967 and BS 8494 use, and hydrogen blend ready.
Key Features & Benefits
- Dedicated NO Sensor – NO and NOx Measurement: Measures nitric oxide and calculates nitrogen oxide readings in FGA mode, alongside CO, O₂ and CO₂.
- CO, O₂ Direct Measurement, CO₂ Calculated: CO:CO₂ ratio, excess air and efficiency calculated.
- Gas Leak Detection with LED Searchlight: Connects to the included Anton Gas Pro Detector for integrated leak checking with visual illumination in dark areas.
- Full Pressure Menu – Let-By and Tightness Testing: Built-in manometer, no separate instrument required.
- Bluetooth – Anton Sprint Mobile App: View and manage results remotely, email or print reports wirelessly.
- BS 7967 CO Sweep and Ambient Air Monitoring: Produces BS 7967 CO room safety reports.
- Future Upgradeable: Add a dual-beam IR CO₂ sensor at a later date, or upgrade to Pro 6 specification.
- Rugged Construction: Made from the same material used in motorcycle crash helmets, with a secure click-in flue probe connector.
- Double Water-Stop Technology: Robust, easy-to-empty condensation trap with washable particulate filter.
- Over-Range Sensor Protection: Built in as standard.
- USB-C Charging: For the analyser and compatible printer (printer sold separately).
- BSI Independently Tested: To EN 50379-1:2012 and EN 50379-3:2012, for use with BS 7967 and BS 8494.
- Hydrogen Blend Ready: Prepared for current and developing fuel gas compositions.
- 14-Hour Battery: Li-ion rechargeable, USB-C.
Ideal For
- Engineers and commissioning professionals requiring NO and NOx measurement alongside standard combustion analysis.
- Plumbers, oil engineers and commissioning engineers working to BS 7967.
- Engineers wanting future flexibility to add direct CO₂ measurement.
Note: if testing oil-powered appliances, the Sprint Pro Flue Probe with 3 Micron Filter (C03767/S) is recommended.

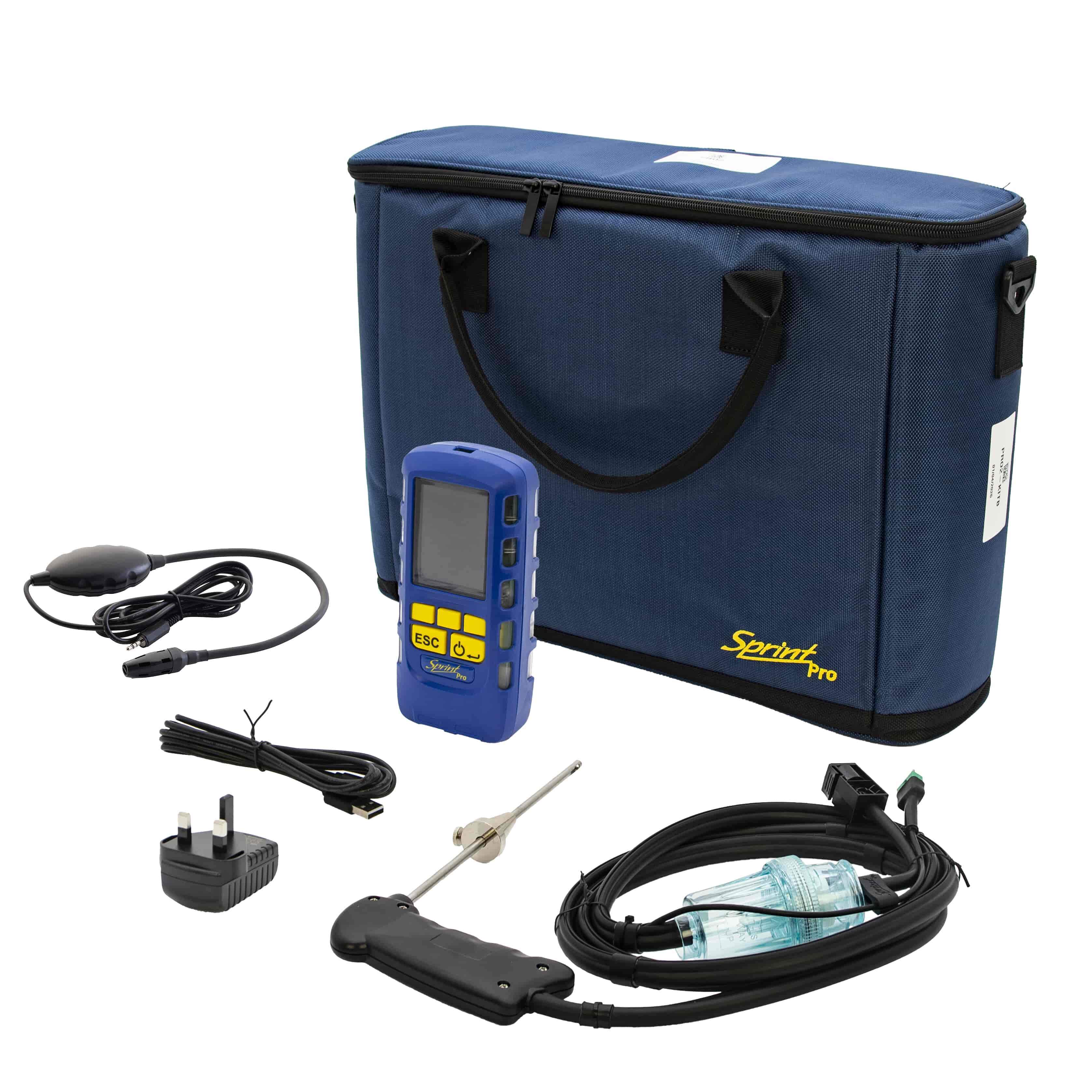

What's Included
- 1 x Anton Sprint Pro 5 Flue Gas Analyser with NO Sensor.
- 1 x USB Charger and Lead.
- 1 x Sprint Pro Quick Drop-In Bag.
- 1 x Sprint Pro Flue Probe with Water Stop Technology and Washable Particulate Filter.
- 1 x Sprint Pro Gas Escape Probe.
- 1 x Standard Pressure Hose.
- 1 x Spare Washable Particulate Filter.
- Certificate of Calibration and Quick Start Guide.
Anton Sprint Pro Range — Which Model?
- Pro 1: CO, O₂, temperature. No pressure testing.
- Pro 2: As Pro 1, plus built-in pressure testing. Gas leak probe ready but sold separately.
- Pro 3: As Pro 2, plus a gas leak probe included and Bluetooth app.
- Pro 4: As Pro 3, plus a direct infrared CO₂ sensor for COMCAT/CMDDA1. Made to order.
- Pro 5 (this product): As Pro 3, plus a dedicated NO sensor for NO/NOx measurement. Upgradeable to a direct CO₂ sensor or Pro 6 later.
- Pro 6: Combines the NO/NOx sensor with a direct CO₂ sensor — the full-spec model.
Why Buy This Product?
Adding a dedicated NO sensor to the standard Sprint Pro capability gives NO and NOx readings in the same session as CO, O₂ and the calculated combustion values, which matters where nitrogen oxide emissions are a regulatory or performance concern. Everything from pressure testing to gas leak detection and Bluetooth reporting carries over unchanged from the rest of the range, and being upgradeable to a direct CO₂ sensor or full Pro 6 specification later means the investment isn't fixed if requirements grow.
Order the Anton Sprint Pro 5 Multifunction Flue Gas Analyser online today.
