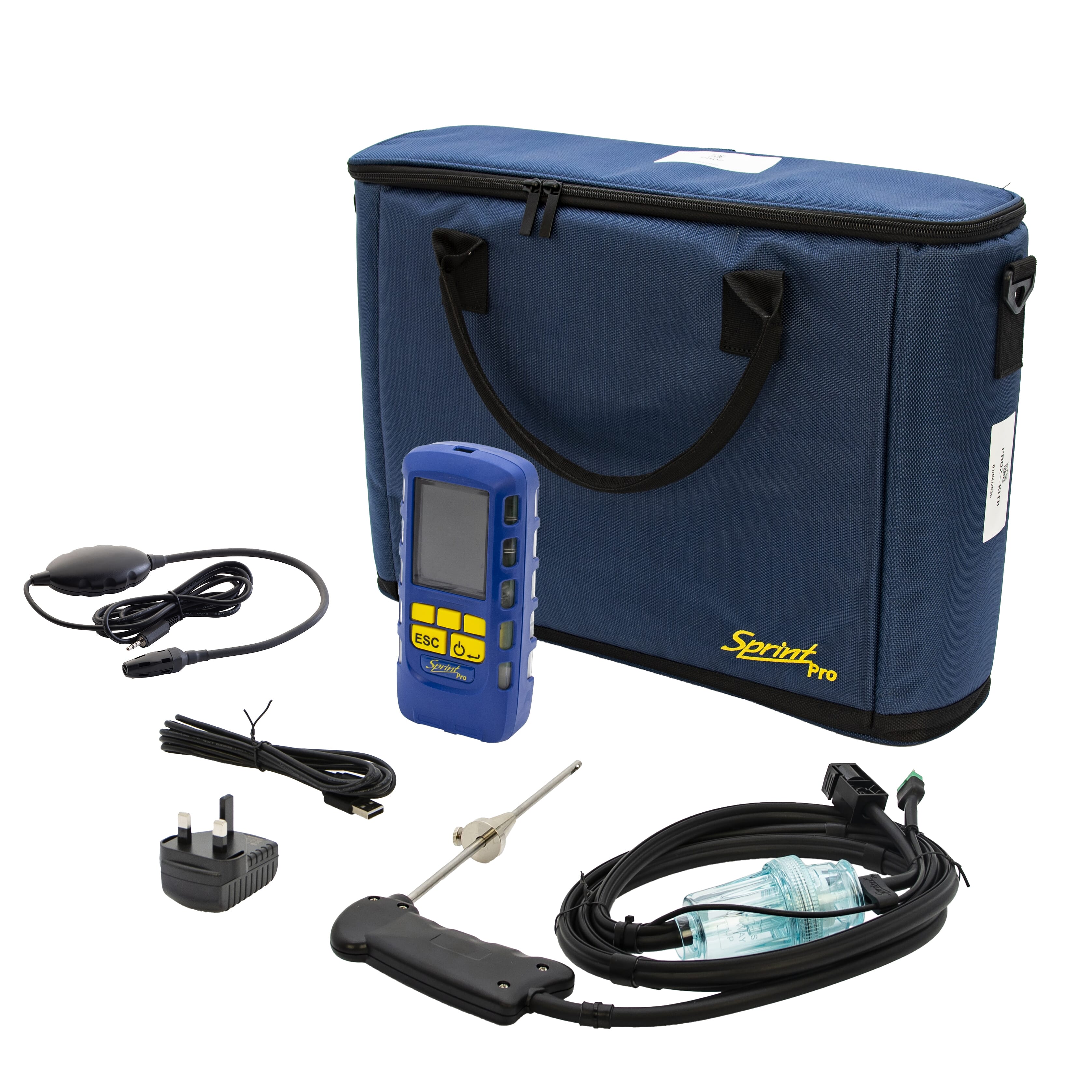

The Anton Sprint Pro 6 Multifunction Flue Gas Analyser is the most sophisticated model in Anton's Sprint Pro series of flue gas analysers. As such, it features a NO sensor for measuring NO and NOx levels; it also includes a dual-beam infrared CO2 sensor for conducting ambient CO2 monitoring and facilitating simultaneous CO and CO2 monitoring. Wireless communication on the Anton Sprint Pro 6 allows it to communicate with the user's iOS or Android smartphone (Anton Sprint Pro app required) whilst the USB port can be used to carry out direct transfers to a PC. Operation is conducted through the analyser's large push buttons and intuitive menus. A sturdy design makes the Anton Sprint Pro 6 suitable for day-to-day use in the field. It has double condensate protection with a moisture trap that is very easy to empty as and when required. The secure click function on the analyser means that probes can be simply and easily interchanged in the field.
Regardless of the set up, whether the boiler is powered by gas, oil coal, wood pellets in residential or commercial environments. The Sprint Pro is the only tool you will need, now hydrogen blend ready.
Manufactured in the UK to exacting standards, stay on the job longer with a reliable device you can trust. Multi-function and easy-to-use, it is designed to last with troubleshooting built in and triple filter water trap system for total hydrophobic protection.
The Sprint Pro flue gas analyser is BSI tested to EN50379-1:2012 & EN50379-3:2012 and is suitable for engineers working with BS7967:2015.
Please note that this product is made to order. The typical lead time may be 2-3 weeks. Please contact us to get a more exact delivery date.
Specification
Anton Sprint Pro 6 Multifunction Flue Gas Analyser Kit A Specification
Battery Life
Up to 14 hrs
Co Range
Calculated range: 0 to 21%, Resolution: 0.1%, Accuracy: ±0.3%
Differential Pressure
Range: 0 to 400 mbar, Resolution: 0.01 mbar, Accuracy: ±0.5 mbar or 1% of reading
Dimensions
Analyser: H 183 x W 85 x D 50 mm
Draught
Yes
Flue Temperature
Range: 5°C to 400°C, Resolution: 1°C, Accuracy: ±2°C or 1.5% of reading
Gas Measurements
Measures and calculates O₂, CO, CO₂, CO/CO₂ ratio, excess air, temperature and efficiency.
Hose Length
2.146 m
Insertion Length
250 mm
Max Temperature
K-Type thermocouple measurement range: -50°C to 1000°C, Accuracy: ±2°C or 1.5% of reading
Operating Temperature
-10°C to 50°C
Power supply
Li-ion rechargeable battery
Suitable Application
Fuel options: natural gas, LPG, heavy oil, light oil, coal, wood, wood pellet dry, coke, Biomass and Bagasse.
Type Of Analyser
Boiler Flue Gas
Weight
490 g
Features

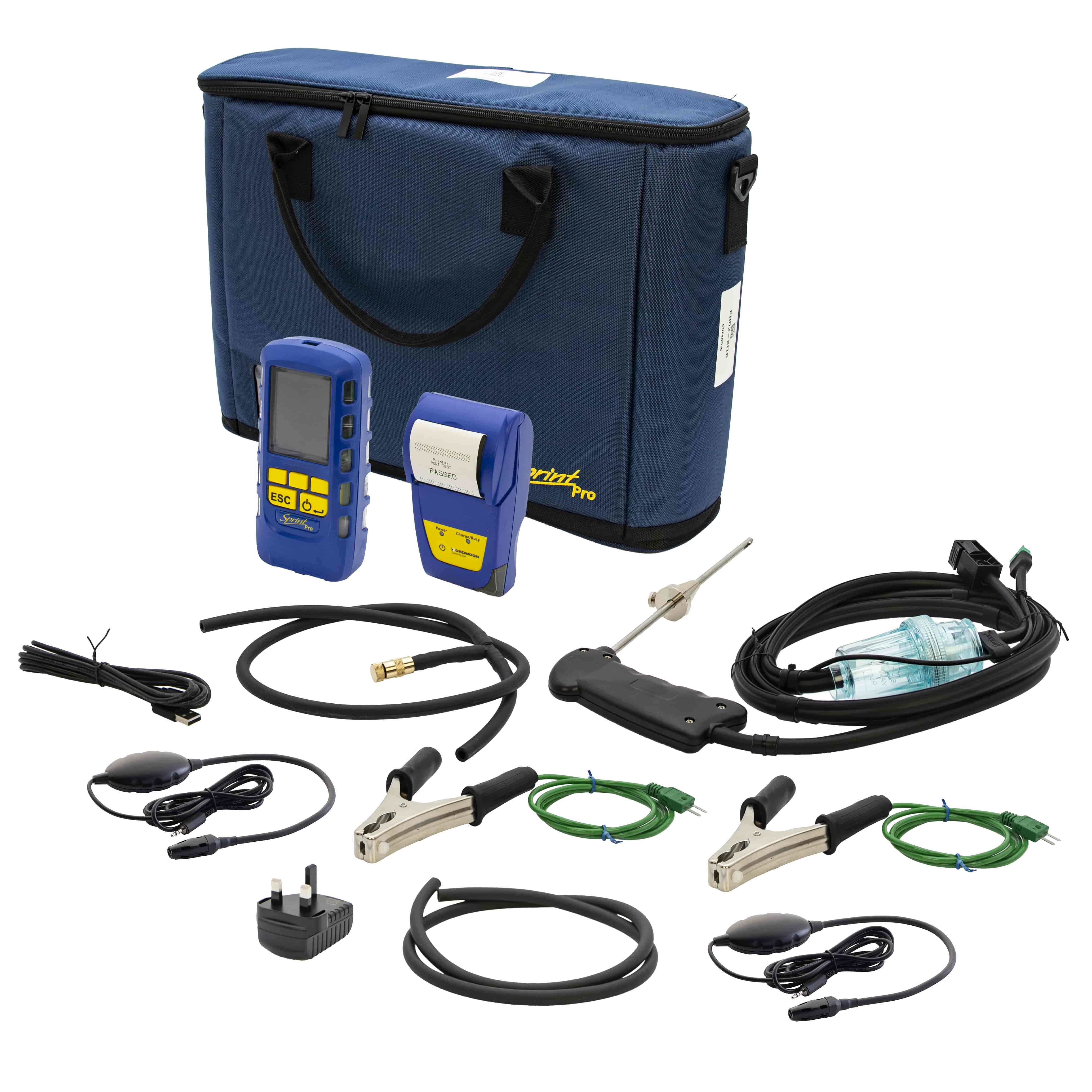

Anton Sprint Pro 6 Multifunction Flue Gas Analyser Kit A Features
Anton Sprint Pro 6 Multifunction Flue Gas Analyser
Gas Leak Detector
Charger
Pressure Hose Bag Printer
Anton Pressure Relief Valve
(APRV) 2x Temperature Clamps
Calibration Certificate (1st Year)
