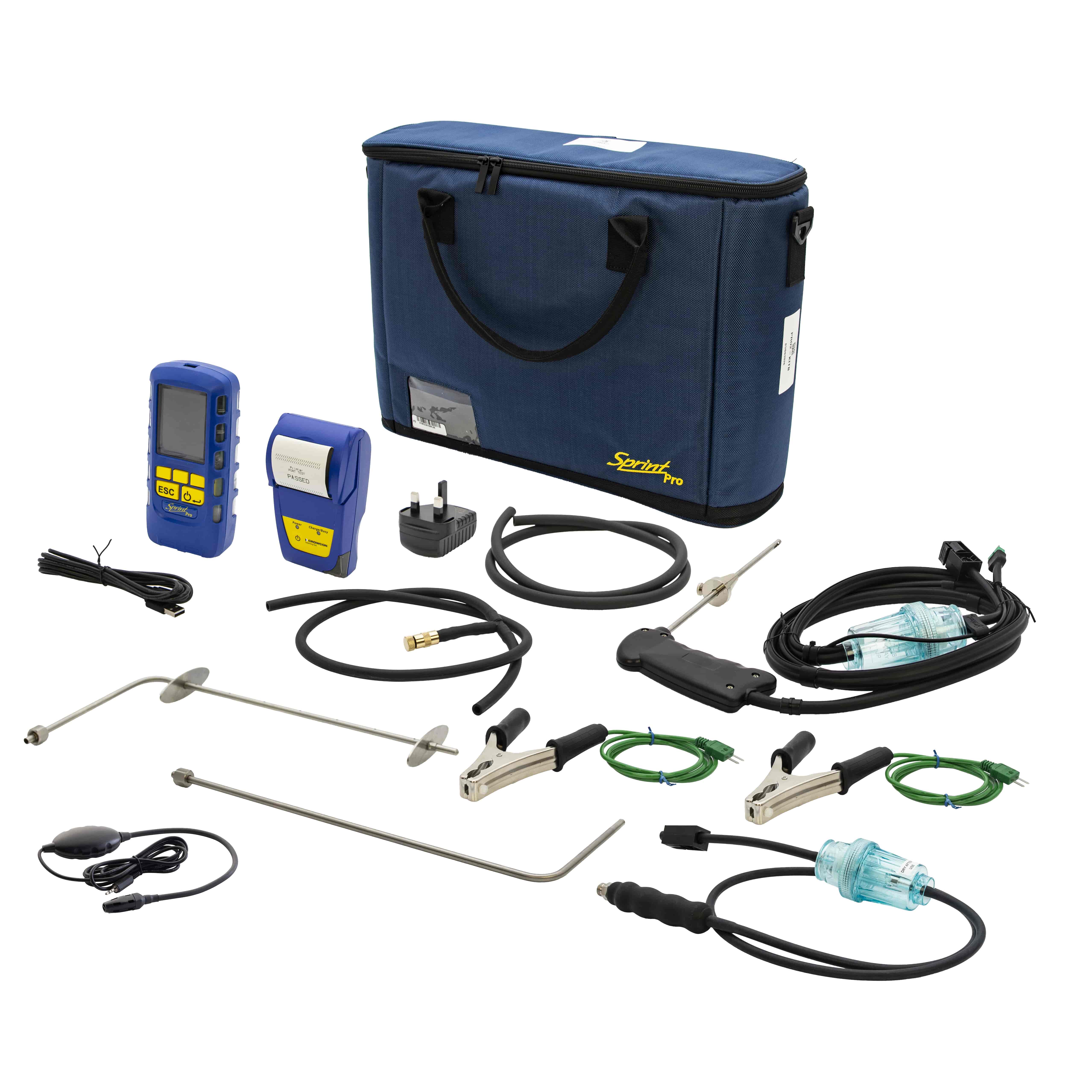

The Anton Sprint Pro 5 Multifunction Flue Gas Analyser includes a NO sensor for conducting NO (nitric oxide) and NOx (nitrogen oxide) measurements in FGA mode. In this mode, it can also perform the following measurements and tests: Carbon Monoxide (CO) levels, Carbon Dioxide (CO2) levels, Oxygen (O2) levels, CO: CO2 ratios, Excess air temperature, Flow temperature, Return temperature, Differential Temperature, Efficiency, BS7967 CO sweep tests, and CO ambient air monitoring. The Anton Sprint Pro 5 has wireless connectivity, which means that the user can communicate with the analyser from their Android or iOS smartphone as long as they have downloaded the Anton Sprint app. The USB port allows physical communication to the user's PC. The flue gas analyser is operated using large push buttons and an intuitive menu system that can be easily used even when wearing gloves. Menus are shown on the large colour screen. The Anton Sprint Pro 5 Multifunction Flue Gas Analyser's support of future upgradability allows it to be adapted to the user's requirements and adds to its longevity. Also adding to this combustion gas analyser's longevity is its construction. The Anton Sprint Pro 5 Multifunction Flue Gas Analyser is made from the same material used to create motorcycle crash helmets and includes a secure, click-in flue probe ensuring that it can be used in rugged environments.
Please note that this product is made to order. The typical lead time may be 2-3 weeks. Please contact us to get a more exact delivery date.
Battery Life | Up to 14 hrs |
---|---|
Co Range | Calculated range: 0 to 21%, Resolution: 0.1%, Accuracy: ±0.3% |
Differential Pressure | Range: 0 to 400 mbar, Resolution: 0.01 mbar, Accuracy: ±0.5 mbar or 1% of reading |
Dimensions | Analyser: H 183 x W 85 x D 50 mm |
Draught | Yes |
Flue Temperature | Range: 5°C to 400°C, Resolution: 1°C, Accuracy: ±2°C or 1.5% of reading |
Gas Measurements | Measures and calculates O2, CO, CO2, CO/CO2 ratio, excess air, temperature and efficiency. |
Hose Length | 2.146 m |
Insertion Length | 250 mm |
Max Temperature | K-Type thermocouple measurement range: -50°C to 1000°C, Accuracy: ±2°C or 1.5% of reading |
Operating Temperature | -10°C to 50°C |
Power supply | Li-ion rechargeable battery |
Suitable Application | Fuel options: natural gas, LPG, heavy oil, light oil, coal, wood, wood pellet dry, coke, Biomass and Bagasse. |
Type Of Analyser | Boiler Flue Gas |
Weight | 490 g |
