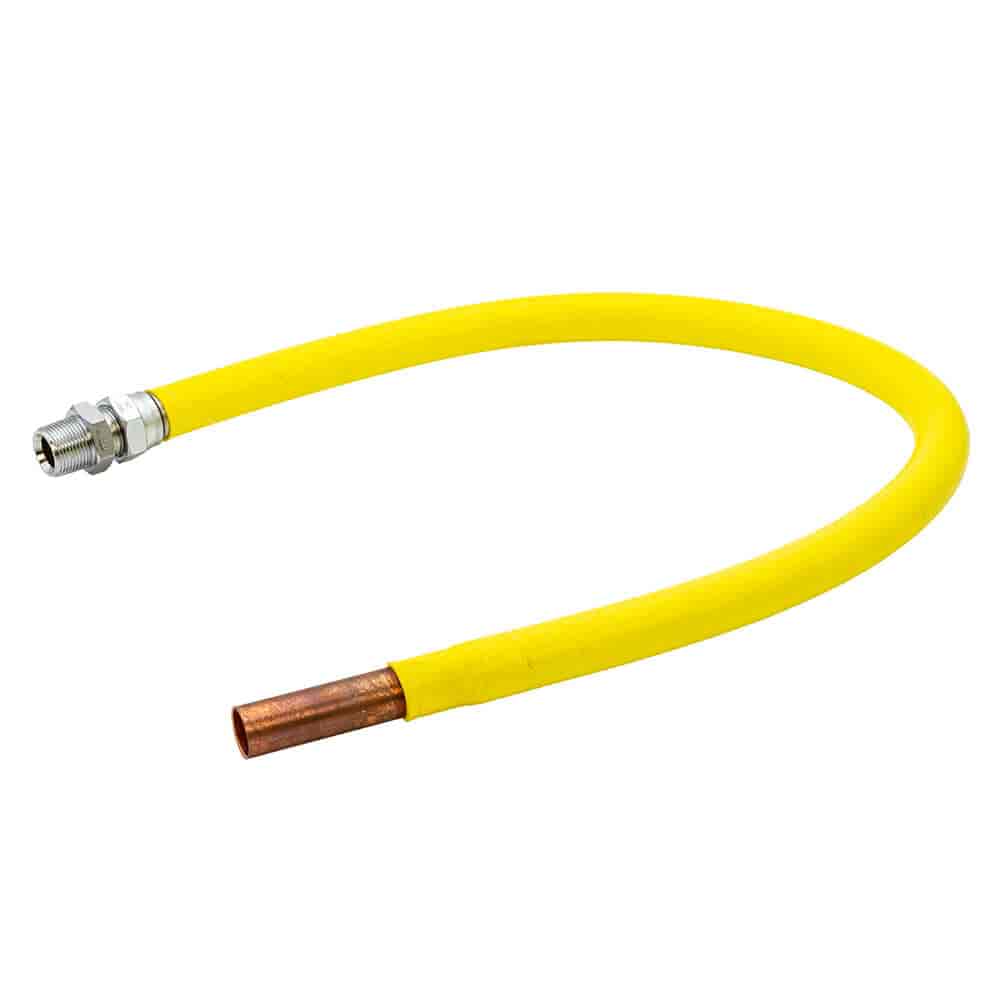

This flexible Caravan LPG Hose Assembly 1m - 3/4" Bsp MT x 22mm Standpipe, is made from convoluted 321 stainless steel and meets the ISO 10380 standards. It features a 3/4" union stainless steel nipple at one end, welded and secured with a plated nut. The opposite end is equipped with a copper tube, 22 mm diameter and 1000 mm in length. The entire assembly is encased in a yellow PVC cover for added protection.
Designed for optimal safety and durability, the hose can withstand maximum working pressures of up to 3 bar for the 3/4" size. In terms of burst pressure, the 3/4" hose can withstand up to 12 bar.
Each hose comes with a 20-year replacement guarantee and is clearly marked with the ISO standard to ensure compliance and quality assurance. Primarily, this hose is intended for connecting gas supplies to static caravans and residential park homes, providing a reliable and safe solution for gas delivery in these applications.
| Brand | Gas Products |
|---|---|
| Standards | ISO 10380 |
| Colour | Yellow |
| Connections | 3/4" Bsp Male Taper Union x 22mm Standpipe |
| Inside Diameter | 19.5mm |
| Length | 1 m |
| Material | Stainless Steel, PVC Cover |
| Operating Temperature | -20ºC to +60ºC |
| Operating Pressure | 3 bar (Max) |
| Suitable Applications | Connection of a gas supply to static caravans and residential park homes. |
| Service Life | 20 Years depending on installation and use conditions. |
