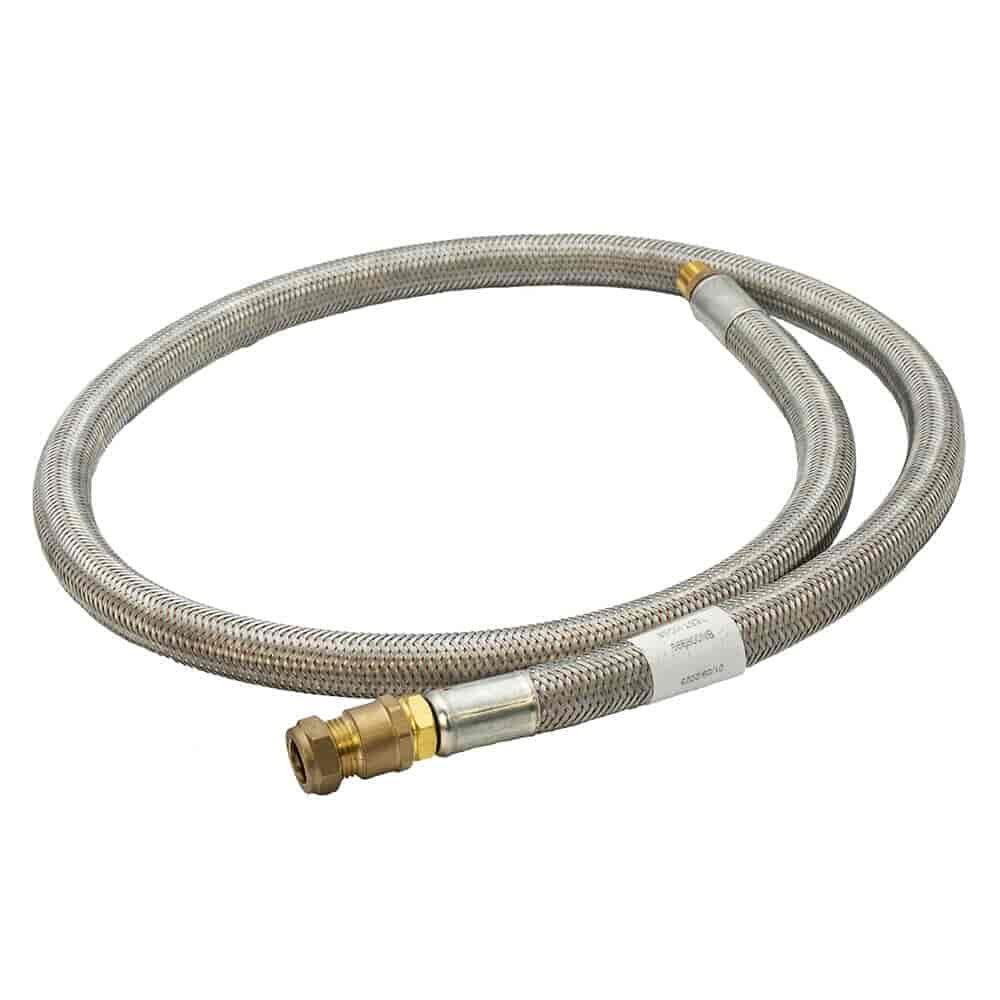

The Caravan LPG Hose Assembly Galvanised Steel, 1.5m - 3/8" Bsp MT x 15mm , meticulously crafted from galvanised steel to offer unparalleled durability and performance. This premium hose assembly spans 1.5 meters in length, featuring connections of 3/8" BSP Male Taper on one end and 15mm compression on the other, making it an ideal choice for a wide range of applications including cookers, heaters, and caravans.
Designed to meet the rigorous standards of EN-16436-1 Class 2, our high-pressure hose assembly is engineered to handle the demands of your LPG (Liquefied Petroleum Gas) systems with ease. It boasts a robust working pressure of 10 bar, ensuring reliable operation under typical usage conditions, and an impressive burst pressure of 30 bar, offering peace of mind against the unexpected.
Each hose assembly is reinforced with a steel overbraid, providing an extra layer of protection and durability. This reinforcement not only enhances the assembly's resistance to wear and external damage but also ensures a safer connection by minimizing the risk of leaks and ruptures.
Please note, this hose assembly is only for use with LPG systems
| Brand | Gas Products |
|---|---|
| Standards | EN 16436-1 Class 2 |
| Colour | Galvanised Steel |
| Connections | 3/8" Bsp Male Taper x 15mm Compression |
| Inside Diameter | 12.5mm |
| Length | 1.5 m |
| Material | Galvanised Steel Overbraid Rubber Gas Hose |
| Operating Temperature | -30ºC to +70ºC |
| Operating Pressure | 10 bar (Max) |
| Suitable Applications | Connection of a low pressure gas supply to static caravans and residential park homes. |
| Service Life | 5 Years depending on installation and use conditions. |
