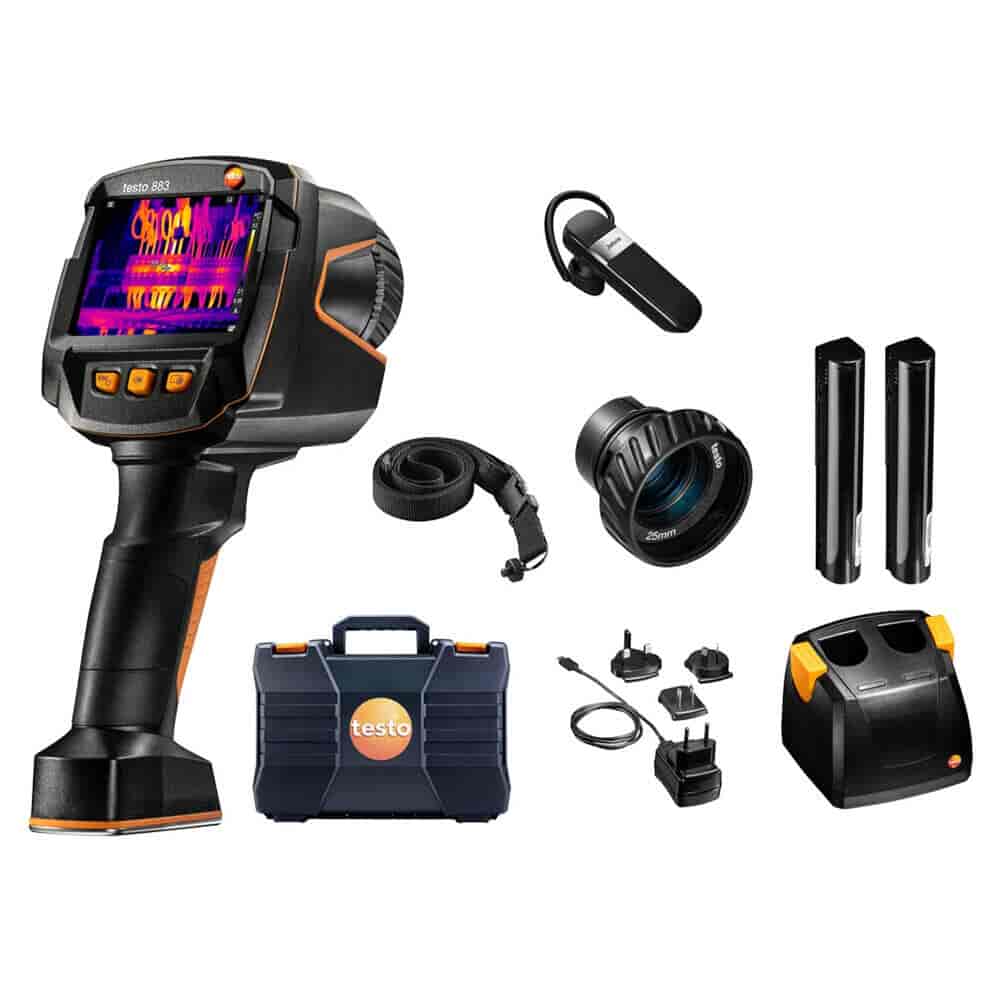

The Testo 883-2 Thermal Imaging Camera Kit is a professional-grade solution for thermal inspections, energy audits and building diagnostics. Designed for consultants, engineers and surveyors, it combines high-performance thermal imaging with smart software and interchangeable lenses for flexibility and accuracy.
Equipped with a high-resolution 320 x 240 IR sensor (enhanced to 640 x 480 pixels with SuperResolution), this camera delivers crystal-clear thermal images, even from long distances. Its <0.04°C thermal sensitivity ensures even the smallest temperature anomalies are detected, helping uncover insulation issues, moisture ingress and heat loss quickly.
The included 42° wide-angle lens and 12° telephoto lens allow switching seamlessly between scanning large surface areas and focusing on distant targets. With manual focus, the image stays sharp and detailed at any distance.
Thanks to IRSoft software and the Testo Thermography App, results can be analysed, streamed and reported in real time. The kit also features Bluetooth connectivity for pairing with other Testo measuring tools (sold separately), and includes a spare battery and charging dock to keep working all day long.
A 42° wide-angle lens as standard suits tight spaces and confined building surveys better than the 883-1's narrower 30° lens, while the included 12° telephoto lens still covers distant targets when needed. A spare battery and charging dock mean back-to-back inspections aren't interrupted by a flat battery partway through a job.
Order the Testo 883-2 Thermal Imaging Camera Kit online today. Please note there is a 3-5 day lead time on this product.
| Brand | Testo |
|---|---|
| Part Number | 0563 8836 |
| Product Type | Thermal Imaging Camera Kit |
| Standards | RED: 2014/53/EU; EMC: 2014/30/EU; WEEE: 2012/19/EU; RoHS: 2011/65/EU + 2015/863; REACH: 1907/2006 |
| Product Colour | Black |
| Display Lighting | Bright / Normal / Dark |
| Display Type | Capacitive Touch Display, 3.5" TFT QVGA (320 x 240 Pixels) |
| Field of View | 42° x 32° (Wide-Angle Lens), 12° x 9° (Telephoto Lens) |
| Focus | Manual |
| Minimum Focus Distance | 0.1m (Wide-Angle); 0.5m (Telephoto); <0.4m (Visual) |
| Geometric Resolution (IFOV) | 2.3 mrad (Wide-Angle), 0.7 mrad (Telephoto) |
| Image Refresh Rate | 27 Hz (Limited to 9 Hz Inside EU) |
| Infrared Resolution | 320 x 240 Pixels |
| SuperResolution (Pixel) | 640 x 480 Pixels |
| SuperResolution (IFOV) | 1.4 mrad (Wide-Angle), 0.4 mrad (Telephoto) |
| Thermal Sensitivity | <40 mK (0.04°C) |
| Spectral Range | 7.5 to 14 µm |
| Visual Image Size | 5 MP |
| Display Colours | 12 Palettes incl. Humidity Palette |
| Digital Zoom | 2x; 4x |
| Display Option | IR Image / Real Image |
| Measurement Accuracy | ±2°C, ±2% of m.v. (Greater Value Applies) |
| Emissivity | 0.01 to 1 |
| Measuring Range | -30 to +650°C |
| Reflected Temperature | Manual |
| Testo ε-Assist | Included |
| Analysis Functions | Up to 5 Points, Hot/Cold Spot, Delta T, Area Min/Max, Alarms, Isotherm |
| Solar Mode | Manual Input |
| Electrical Mode | Manual Input |
| Humidity Mode | Included |
| Humidity Measurement | Via Bluetooth from testo 605i (Optional) |
| Electrical Measurement | Via Bluetooth from testo 770-3 (Optional) |
| IFOV Warner | Included |
| Testo ScaleAssist | Included |
| Voice Recording | Included |
| Video Streaming | Via WLAN with App; via USB |
| Standard Lens | 42° x 32° |
| SiteRecognition | Included |
| Laser | Laser Marker (Region Dependent) |
| Digital Camera | Included |
| Interface | USB 2.0; USB-C |
| WLAN Connectivity | BT/WLAN with App (Region Dependent) |
| Bluetooth | Voice Annotation, testo 605i and 770-3 (Optional) |
| Image File Formats | .bmt; .jpg; Export: .bmp, .jpg, .png, .csv, .xls |
| Internal Memory | 2.8 GB |
| Battery Type | Fast-Charging Li-Ion (Field Replaceable) |
| Charging Options | In-Instrument / Charging Station Included |
| Mains Operation | Yes |
| Operating Time | ≥5 Hours (Extended with Spare Battery) |
| Air Humidity | 20 to 80% RH Non-Condensing |
| Warranty | 2 Years |
