The Testo 883-1 Thermal Imaging Camera Kit is a premium, all-in-one solution for professionals who demand precision, versatility, and uninterrupted performance. Engineered for HVAC engineers, building energy consultants, and facility managers, this comprehensive kit combines advanced infrared imaging with extended usability and enhanced diagnostic capabilities.
At its core is the powerful Testo 883-1 thermal imager, featuring a 320 x 240 pixel IR resolution—upgradeable to 640 x 480 pixels with SuperResolution—and <0.04°C thermal sensitivity. This ensures ultra-clear thermal images and the ability to detect the smallest temperature differentials with accuracy and ease.
The kit includes two interchangeable lenses to adapt to diverse inspection requirements:
The 30° x 23° standard lens is ideal for wide-area building and facility scans.
The 12° x 9° telephoto lens is perfect for long-distance inspections, such as elevated machinery, electrical cabinets, or distant thermal bridges.
For continuous operation, the kit includes a spare Li-ion battery and a charging station, allowing users to work for extended periods without downtime. Built-in Testo SiteRecognition technology automatically organises and tags thermal images by location, streamlining workflows and eliminating manual sorting.
The Testo 883-1 Kit also supports Bluetooth connectivity, enabling seamless integration with Testo instruments like the 770-3 Clamp Meter and 605i Thermohygrometer. These measurements—current, voltage, humidity, and ambient temperature—can be overlaid directly onto thermal images for comprehensive, real-time diagnostics.
Rugged, reliable, and equipped with IRSoft software for professional analysis and reporting, the Testo 883-1 Kit is your go-to choice for advanced thermal inspections across industrial, commercial, and energy assessment environments.
✅ 320 x 240 IR Resolution – Upgradeable to 640 x 480 pixels with SuperResolution
✅ <0.04°C NETD Sensitivity – Accurately detects even the smallest temperature differences
✅ Dual Lens Flexibility – Includes 30° standard lens and 12° telephoto lens for near and distant inspections
✅ Smart Image Management with SiteRecognition – Automatically assigns images to correct measurement sites
✅ Bluetooth Integration – Connect with Testo 770-3 and 605i for multi-parameter analysis
✅ Humidity Mode & Mould Risk Visualisation – Identify structural risk areas with real-time traffic light system
✅ Extended Usage – Spare battery and charging dock included for continuous inspection capability
✅ Rugged IP54 Design – Suitable for harsh job site environments
✅ IRSoft Pro Software – Create detailed reports with thermal and visual images
✅ Wi-Fi & App Support – Stream, control, and share data directly from the field
The Testo 883-1 Kit is the complete professional solution for high-performance thermal inspections, offering exceptional IR resolution, dual lens flexibility, and extended battery life for all-day use. With a 320 x 240 thermal resolution (upgradable to 640 x 480), <0.04°C sensitivity, and SiteRecognition technology, it delivers unmatched accuracy and smart image management. Ideal for HVAC, electrical, and building diagnostics, this kit also includes a telephoto lens, spare battery, and charging station, making it the perfect choice for professionals who demand precision, reliability, and versatility in every environment.

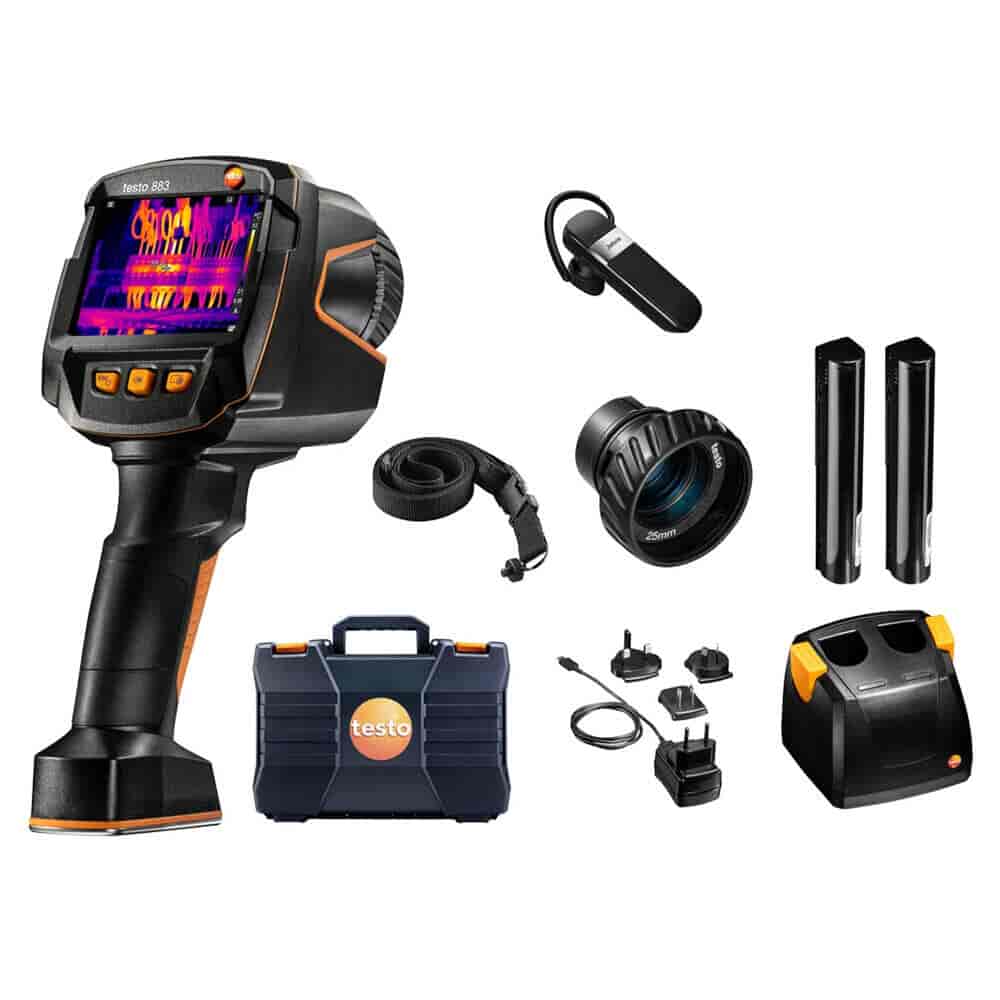

The Testo 883-1 Thermal Imaging Camera Kit includes everything you need for professional thermal inspections: the 883-1 thermal imager with a 30° x 23° standard lens, a 12° x 9° telephoto lens, robust carry case, IRSoft analysis software, USB-C cable, mains charger, two Li-ion rechargeable batteries, a charging station, carrying strap, Bluetooth® headset (region dependent), quick-start instructions, and a calibration protocol. Please note there is a 3-5 day lead time on this product.
| Brand | Testo |
|---|---|
| Product Type | Thermal Imaging Camera |
| Standards | RED: 2014/53/EU; EMC: 2014/30/EU; WEEE: 2012/19/EU; RoHS: 2011/65/EU + 2015/863; REACH: 1907/2006 |
| Product Colour | Black |
| Display Lighting | Bright / Normal / Dark |
| Display Type | Capacitive Touch Display, 3.5" TFT QVGA (320 x 240 pixels) |
| Field of View | 30° x 23° (Standard lens), 12° x 9° (Telephoto lens) |
| Focus Type | Manual |
| Minimum Focus Distance | <0.1 m (Standard lens); <0.4 m (Visual) |
| Geometric Resolution (IFOV) | 1.7 mrad (Standard lens), 0.7 mrad (Telephoto lens) |
| Image Refresh Rate | 27 Hz (limited to 9 Hz inside EU) |
| Infrared Resolution | 320 x 240 pixel |
| SuperResolution (Pixel) | 640 x 480 pixel |
| SuperResolution (IFOV) | 1.1 mrad (Standard lens), 0.4 mrad (Telephoto lens) |
| Thermal Sensitivity | < 40 mK |
| Spectral Range | 7.5 to 14 µm |
| Visual Image Size | 5 MP |
| Display Colours | 12 palettes incl. humidity palette |
| Digital Zoom | 2x; 4x |
| Display Option | IR image / Real image |
| Measurement Accuracy | ±2 °C, ±2 % of m.v. (greater applies) |
| Emissivity | 0.01 to 1 |
| Measuring Range | -30 to +650 °C |
| Reflected Temperature | Manual |
| Testo ε-Assist | Included |
| Analysis Functions | Up to 5 measuring points, hot/cold spot, Delta T, area min/max, alarms, isotherm |
| Solar Mode | Manual input of solar radiation |
| Electrical Mode | Manual input of current, voltage, power |
| Humidity Mode | Included |
| Humidity Measurement | Via Bluetooth from testo 605i (optional) |
| Electrical Measurement | Via Bluetooth from testo 770-3 (optional) |
| IFOV Warner | Included |
| Testo ScaleAssist | Included |
| Voice Recording | Included |
| Video Streaming | Via WLAN (App) and USB |
| Standard Lens | 30° x 23° |
| SiteRecognition | Included |
| Laser | Laser marker (region dependent) |
| JPEG Storage | Included |
| Full Screen Mode | Included |
| Digital Camera | Included |
| Interface | USB 2.0; USB-C |
| WLAN Connectivity | BT/WLAN (region dependent) |
| Bluetooth | Supports headset (voice annotation), testo 605i and 770-3 (optional) |
| Image File Formats | .bmt; .jpg; export: .bmp, .jpg, .png, .csv, .xls |
| Internal Memory | 2.8 GB |
| Battery Type | Fast-charging Li-ion (replaceable) |
| Charging Options | In-instrument / optional charger |
| Mains Operation | Yes |
| Operating Time | ≥ 5 hours |
| Air Humidity | 20 to 80 %RH non-condensing |
| Protection Class | IP54 |
| Vibration Resistance | 2G |
| Storage Temperature | -30 to +60 °C |
| Operating Temperature | -15 to +50 °C |
| Tripod Mounting | 1/4" - 20UNC; carrying strap |
| Weight | 824 g |
| Dimensions (L x W x H) | 171 x 95 x 236 mm |
| PC Software Compatibility | Windows® 7, 8, 10, 11 |
| Warranty | 2 Years |
320 x 240 Thermal Resolution – Upgradeable to 640 x 480 pixels with SuperResolution for high-definition infrared imaging
<0.04°C Thermal Sensitivity (NETD) – Detects ultra-fine temperature differences for precision fault detection
Manual Focus & Interchangeable Lenses – Capture sharp thermal images at close or long distances
Testo SiteRecognition Technology – Automatically tags thermal images to correct measurement locations for faster reporting
Humidity Mode with Mould Risk Detection – Visualise moisture risk areas with traffic light colour indicators
Bluetooth Connectivity – Seamlessly integrates with Testo 770-3 Clamp Meter and 605i Thermohygrometer for multi-parameter thermal analysis
Wi-Fi Enabled with Testo Thermography App – Remote operation, live image streaming, and instant report creation from mobile devices
Built-in Digital Camera – Captures side-by-side visual and thermal images for enhanced diagnostics
IP54 Rated Rugged Housing – Dust and splash-proof design for reliable use in demanding environments
Long Battery Life – Supports extended inspections without interruption
Touchscreen & Joystick Controls – Intuitive navigation and ease of use in the field
Includes IRSoft Pro Software – Perform advanced thermal analysis and generate professional reports
