The Testo 883-1 Thermal Imaging Camera is a high-performance thermography tool engineered for building energy consultants, facility managers, service engineers, and industrial maintenance professionals. Featuring a 320 x 240 infrared resolution—upgradable to 640 x 480 pixels via SuperResolution technology—this device delivers ultra-sharp thermal imaging for accurate analysis of electrical systems, HVAC units, building insulation, and machinery.
With < 0.04°C NETD thermal sensitivity, the 883-1 detects even the slightest thermal anomalies, making it ideal for preventive maintenance and structural assessments. The manual focus and interchangeable lenses allow for detailed thermography at both short and long ranges, ensuring flexibility across multiple applications.
Smart features like Testo SiteRecognition automatically tag thermal images with the correct location, reducing errors and saving time in reporting. The Testo Thermography App enables remote camera operation, real-time image sharing, and on-site reporting from your smartphone or tablet—perfect for fast-paced inspections.
The 883-1 also integrates with Bluetooth-enabled Testo instruments such as the Testo 770-3 Clamp Meter and Testo 605i Thermohygrometer, overlaying real-time electrical and humidity measurements directly onto thermal images. This seamless integration enhances diagnostics for electrical faults, ventilation issues, and building moisture concerns.
Humidity mode helps building energy professionals assess mould risk areas using colour-coded traffic light indicators—green (safe), yellow (caution), and red (high risk)—to prevent structural damage and improve occupant safety.
Housed in a rugged IP54-rated body and featuring touchscreen and joystick controls, the Testo 883-1 offers long battery life, user-friendly navigation, and professional reporting software (IRSoft) for deeper analysis and compliance documentation.
✅ 320 x 240 IR Resolution – Upgradeable to 640 x 480 with Testo SuperResolution
✅ <0.04°C Thermal Sensitivity (NETD) – Detects minute temperature differences for precise diagnostics
✅ Manual Focus & Interchangeable Lenses – Capture clear, adaptable images at any range
✅ SiteRecognition Technology – Auto-tags images to correct measurement locations
✅ Humidity Mode with Mould Detection – Visualise moisture risks with traffic light colour display
✅ Bluetooth Integration – Syncs with Testo 770-3 & 605i for real-time, multi-parameter overlays
✅ Wi-Fi & App Connectivity – Operate, share, and report instantly via the Testo Thermography App
✅ IRSoft Software (Free) – Generate professional thermal inspection reports
✅ Rugged IP54 Design – Dust and splash resistant for industrial or field use
✅ Touchscreen & Joystick Controls – Intuitive navigation in any environment
✅ Long Battery Life – Designed for extended use during full-day inspections
The Testo 883-1 is the ultimate thermal imaging solution for professionals who demand exceptional image clarity, smart connectivity, and precise diagnostics. With 320 x 240 resolution (upgradable to 640 x 480 with SuperResolution), <0.04°C sensitivity, manual focus, and interchangeable lenses, it delivers sharp thermal images for every application. Advanced features like SiteRecognition, Bluetooth integration, and humidity risk detection make it ideal for HVAC, electrical, and building energy assessments, while the Testo Thermography App ensures fast, on-site reporting and remote collaboration. Rugged, reliable, and built for performance—the 883-1 helps you inspect smarter and report faster.

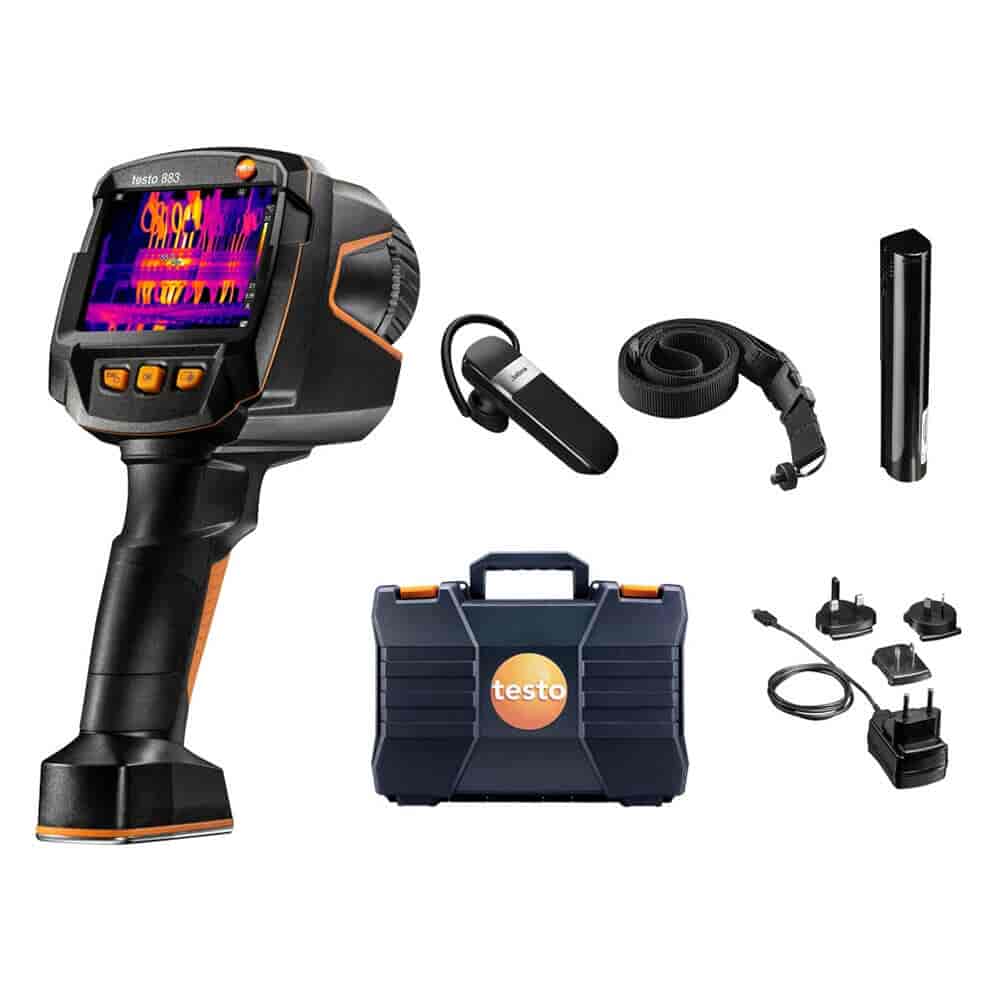

The Testo 883-1 Thermal Imaging Camera comes complete with a 30° x 23° standard lens, a rugged carry case and strap, USB-C cable, mains charger, and a long-lasting Li-ion rechargeable battery. Also included are a Bluetooth headset (availability may vary by region), the professional IRSoft analysis software (free to download), a calibration protocol, and quick start instructions for fast and easy setup. Please note there is a 3-5 day lead time on this product.
| Brand | Testo |
|---|---|
| Product Type | Thermal Imaging Camera |
| Standards | RED: 2014/53/EU; EMC: 2014/30/EU; WEEE: 2012/19/EU; RoHS: 2011/65/EU + 2015/863; REACH: 1907/2006 |
| Product Colour | Black |
| Display Lighting | Bright / Normal / Dark |
| Display Type | Capacitive Touch Display, 3.5" TFT QVGA (320 x 240 pixels) |
| Field of View | 30° x 23° (Standard lens), 12° x 9° (Telephoto lens optional) |
| Focus Type | Manual |
| Minimum Focus Distance | <0.1 m (Standard lens); <0.4 m (Visual) |
| Geometric Resolution (IFOV) | 1.7 mrad (Standard lens), 0.7 mrad (Telephoto lens) |
| Image Refresh Rate | 27 Hz (limited to 9 Hz inside EU) |
| Infrared Resolution | 320 x 240 pixel |
| SuperResolution (Pixel) | 640 x 480 pixel |
| SuperResolution (IFOV) | 1.1 mrad (Standard lens), 0.4 mrad (Telephoto lens) |
| Thermal Sensitivity | < 40 mK |
| Spectral Range | 7.5 to 14 µm |
| Visual Image Size | 5 MP |
| Display Colours | 12 palettes incl. humidity palette |
| Digital Zoom | 2x; 4x |
| Display Option | IR image / Real image |
| Measurement Accuracy | ±2 °C, ±2 % of m.v. (greater applies) |
| Emissivity | 0.01 to 1 |
| Measuring Range | -30 to +650 °C |
| Reflected Temperature | Manual |
| Testo ε-Assist | Included |
| Analysis Functions | Up to 5 measuring points, hot/cold spot, Delta T, area min/max, alarms, isotherm |
| Solar Mode | Manual input of solar radiation |
| Electrical Mode | Manual input of current, voltage, power |
| Humidity Mode | Included |
| Humidity Measurement | Via Bluetooth from testo 605i (optional) |
| Electrical Measurement | Via Bluetooth from testo 770-3 (optional) |
| IFOV Warner | Included |
| Testo ScaleAssist | Included |
| Voice Recording | Included |
| Video Streaming | Via WLAN (App) and USB |
| Standard Lens | 30° x 23° |
| SiteRecognition | Included |
| Laser | Laser marker (region dependent) |
| JPEG Storage | Included |
| Full Screen Mode | Included |
| Digital Camera | Included |
| Interface | USB 2.0; USB-C |
| WLAN Connectivity | BT/WLAN (region dependent) |
| Bluetooth | Supports headset (voice annotation), testo 605i and 770-3 (optional) |
| Image File Formats | .bmt; .jpg; export: .bmp, .jpg, .png, .csv, .xls |
| Internal Memory | 2.8 GB |
| Battery Type | Fast-charging Li-ion (replaceable) |
| Charging Options | In-instrument / optional charger |
| Mains Operation | Yes |
| Operating Time | ≥ 5 hours |
| Air Humidity | 20 to 80 %RH non-condensing |
| Protection Class | IP54 |
| Vibration Resistance | 2G |
| Storage Temperature | -30 to +60 °C |
| Operating Temperature | -15 to +50 °C |
| Tripod Mounting | 1/4" - 20UNC; carrying strap |
| Weight | 824 g |
| Dimensions (L x W x H) | 171 x 95 x 236 mm |
| PC Software Compatibility | Windows® 7, 8, 10, 11 |
| Warranty | 2 Years |
320 x 240 Thermal Resolution – Upgradeable to 640 x 480 pixels with SuperResolution for high-definition infrared imaging
<0.04°C Thermal Sensitivity (NETD) – Detects ultra-fine temperature differences for precision fault detection
Manual Focus & Interchangeable Lenses – Capture sharp thermal images at close or long distances
Testo SiteRecognition Technology – Automatically tags thermal images to correct measurement locations for faster reporting
Humidity Mode with Mould Risk Detection – Visualise moisture risk areas with traffic light colour indicators
Bluetooth Connectivity – Seamlessly integrates with Testo 770-3 Clamp Meter and 605i Thermohygrometer for multi-parameter thermal analysis
Wi-Fi Enabled with Testo Thermography App – Remote operation, live image streaming, and instant report creation from mobile devices
Built-in Digital Camera – Captures side-by-side visual and thermal images for enhanced diagnostics
IP54 Rated Rugged Housing – Dust and splash-proof design for reliable use in demanding environments
Long Battery Life – Supports extended inspections without interruption
Touchscreen & Joystick Controls – Intuitive navigation and ease of use in the field
Includes IRSoft Pro Software – Perform advanced thermal analysis and generate professional reports
