Testo 865s - Thermal Imaging Camera (160 x 120 pixels) - Precision, Efficiency & User-Friendly Technology
The Testo 865s Thermal Imaging Camera is engineered for professionals, offering high-resolution thermography and essential functions tailored for a contractor's daily work. Designed for fast, efficient use, this thermal imager features advanced ScaleAssist technology to automatically adjust the thermal image scale for building thermography, while the integrated IFOV Warner ensures accurate measurements by displaying the measurement spot size on the thermal image. The Testo 865s guarantees accurate infrared images for maintenance, quality assurance, and production control.
Key Applications of the Testo 865s Thermal Imager:
Detect Leaks: Quickly identify areas of moisture and water leakage in building structures.
Pinpoint Thermal Bridges: Locate thermal bridges and structural defects for building insulation optimization.
Maintenance & Installation: Ideal for daily maintenance tasks in trade and industry, enabling quick and reliable inspections.
Technical Highlights of the Testo 865s Thermal Imager:
High-Resolution Imaging: Equipped with 19,200 temperature measuring points and an infrared resolution of 160 x 120 pixels. Integrated SuperResolution Technology enhances images to 320 x 240 pixels for superior clarity.
Thermal Sensitivity of 0.1°C: Visualises even the smallest temperature differences for precise analysis.
Hot-Cold Spot Recognition: Automatic detection of critical temperature conditions directly displayed on the thermal image for immediate action.
IFOV Warner: Indicates the distance to the measurement object, ensuring accuracy by showing the exact measurement spot size on the thermal image.
ScaleAssist Function: Automatically optimises the thermal image scale for building thermography, enabling consistent and error-free thermal images.
Pro Software for Image Evaluation: Advanced software for image analysis and report creation on a PC. Thermal images can be saved in JPEG format for easy sharing and documentation.
Fast Measurement: Features fixed focus for quick and accurate thermal readings, with a measuring accuracy of ±2°C.

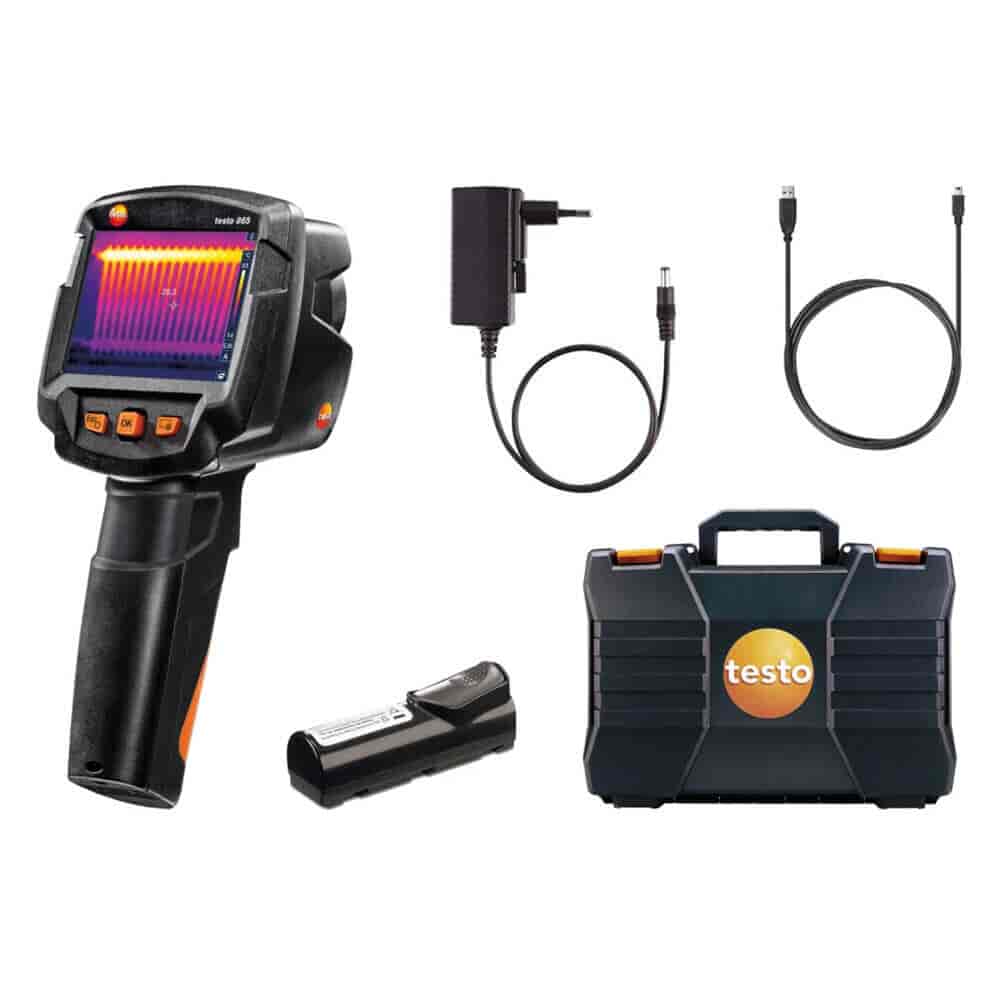

Delivery Scope:
The Testo 865s Thermal Imager comes with a USB cable, mains unit, lithium-ion rechargeable battery, IRSoft professional software (free download), commissioning instructions, short instructions, calibration protocol, and a durable carrying case. Please note there is a 3-5 day lead time on this product.
Specification
Testo 865s Thermal Imaging Camera Specification
Brand
Testo
Product Type
Thermal Imaging Camera
Standards
EMC: 2014/30/EU
Temperature Measurement Range
-20 to +280 °C
Thermal Sensitivity
120mK
Best Temperature Measurement Accuracy
±2 °C
Field of View H x V
31 x 23°
Refresh Rate
9Hz
Maximum Temperature Measurement
160 x 120pixel
Focus Type
Fixed
Visual Camera
Yes
Display Size
3.5in
Minimum Focus
0.5 m
Interface Type
Micro USB
Application
Thermography
Display Resolution
320 x 240pixel
Image Storage
Internal Storage
Field of View
31 x 23°
Dimensions L x W x D
96 x 95 x 219mm
Weight
510g
Vertical Display Resolution
240pixel
Emissivity
1
Horizontal Detector Resolution
160pixel
Horizontal Display Resolution
320pixel
Horizontal Field of View
31°
Vertical Field of View
23°
Storage Media
Internal Storage
Vertical Detector Resolution
120pixel
Battery Type
Fast-charging, Li-ion battery can be changed on-site
Mains Operation
Yes
Operating Time
4 Hours
PC Software
Windows® 11 ; Windows® 10; Windows® 8.1
Warranty
2 Years
Features
Testo 865s Thermal Imaging Camera Features
High-Resolution Thermography: Infrared resolution of 160 x 120 pixels, enhanced to 320 x 240 pixels with integrated SuperResolution Technology.
Thermal Sensitivity of 0.1°C: Detects even the smallest temperature differences for precise inspections and analysis.
Automatic Hot-Cold Spot Recognition: Instantly highlights critical temperature conditions, ensuring fast and effective diagnostics.
IFOV Warner: Displays the measurement spot size on the thermal image, preventing errors by indicating the exact distance from the object.
ScaleAssist Function: Automatically optimises the thermal image scale for building thermography, delivering consistent and error-free images.
Pro Software for Image Evaluation: Includes free professional software for in-depth analysis and report creation; saves images in JPEG format.
Quick Measurements: Features fixed focus for fast, accurate thermal readings with a measuring accuracy of ±2°C.
Versatile Applications: Ideal for detecting leaks, identifying overheating, pinpointing thermal bridges, and conducting maintenance in trade and industry.
Comprehensive Kit: Includes USB cable, mains unit, lithium-ion battery, IRSoft software, instructions, calibration protocol, and a carrying case for convenient use.
