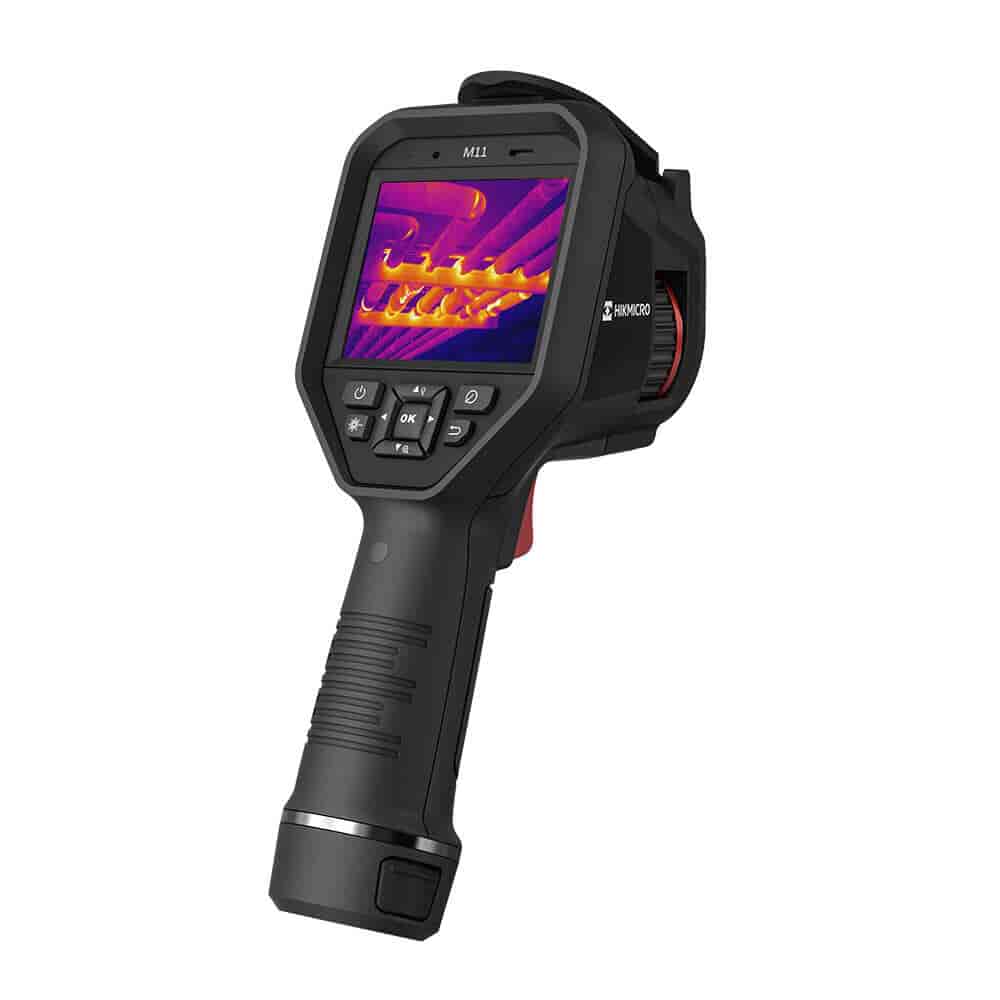

Hikmicro M11W Thermal Handheld Camera – Focus Free
The Hikmicro M11W Thermal Handheld Camera is for professionals who need to inspect large objects, buildings and industrial systems quickly and accurately. With a 37.5° x 27.9° wide-angle lens, a 192 x 144 IR detector and SuperIR image enhancement (up to 384 x 288 pixels), the M11W captures clear thermal images of large areas in one shot.
Equipped with a 3.5" LCD touchscreen, an 8MP visible-light camera and multiple imaging modes (Thermal, Visual, Fusion, PIP, Blending), it ensures precise fault detection and easy operation. With voice/text annotations, laser pointer targeting and Wi-Fi connectivity, the M11W makes inspections and reporting more efficient.
Key Features & Benefits
Wide-Angle Thermal Imaging: 37.5° x 27.9° field of view captures more area in one scan, perfect for large-scale inspections.
High-Resolution Visual Camera: 8MP optical lens with Fusion and PIP imaging for clear contextual detail.
SuperIR Enhanced Detail: Upscales 192 x 144 IR resolution to 384 x 288 pixels for sharper thermal vision.
Accurate Temperature Measurement: Detects -20°C to +550°C with ±2°C/±2% accuracy for reliable diagnostics.
Professional Measurement Tools: Analyse up to 10 spots, 3 rectangles and 1 line with hot/cold spot tracking.
Laser Pointer Targeting: Instantly locate the measurement point on the physical object.
Long Battery Life: 2 x Li-ion batteries with dual-bay charger for up to 12 hours runtime.
Smart Data Management: 16GB removable SD card with space for approximately 60,000 images and 15 hours of video.
Connectivity: Wi-Fi & Bluetooth for image transfer, analysis and reporting via the Hikmicro Viewer app.
Rugged Build: IP54 protection, 2m drop-tested, built for industrial use.
Ideal For
Building surveyors, insulation faults, damp, air leakage and heat loss in large buildings.
HVAC technicians, scanning ductwork, boilers and large HVAC systems.
Industrial maintenance teams, monitoring electrical/mechanical assets and finding overheating components.
Automotive and heavy machinery, diagnosing temperature anomalies in engines and machines.
Why Buy This Product?
A 37.5° wide-angle field of view captures noticeably more of a facade, roof or large HVAC system in a single shot than a standard lens, cutting down the number of images needed to survey a large building. Two swappable batteries with a dual-bay charger give up to 12 hours of runtime, genuinely useful for a full day surveying large sites without an unplanned recharge break.
Order the Hikmicro M11W Thermal Handheld Camera online today.
Specification
Hikmicro M11W Thermal Handheld Camera - Focus Free Specification
Brand
Hikmicro
Product Type
Thermal Imaging Camera
Model
M11W
IR Resolution
192 x 144 (27,648 Pixels), SuperIR Up to 384 x 288
Thermal Sensitivity (NETD)
<40 mK (@25°C, F#=1.0)
Frame Rate
25 Hz
Field of View
37.5° x 27.9°
Focus
Focus-Free
Temperature Range
-20°C to +550°C (-4°F to +1022°F)
Accuracy
±2°C / ±2% of Reading
Display
3.5" LCD Touchscreen, 640 x 480 Resolution
Visual Camera
8MP (3264 x 2448)
Image Modes
Thermal, Visual, Fusion, PIP, Blending
Colour Palettes
White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
Measurement Tools
Centre Spot, Hot Spot, Cold Spot, 10 Spots, 1 Line, 3 Rectangles
