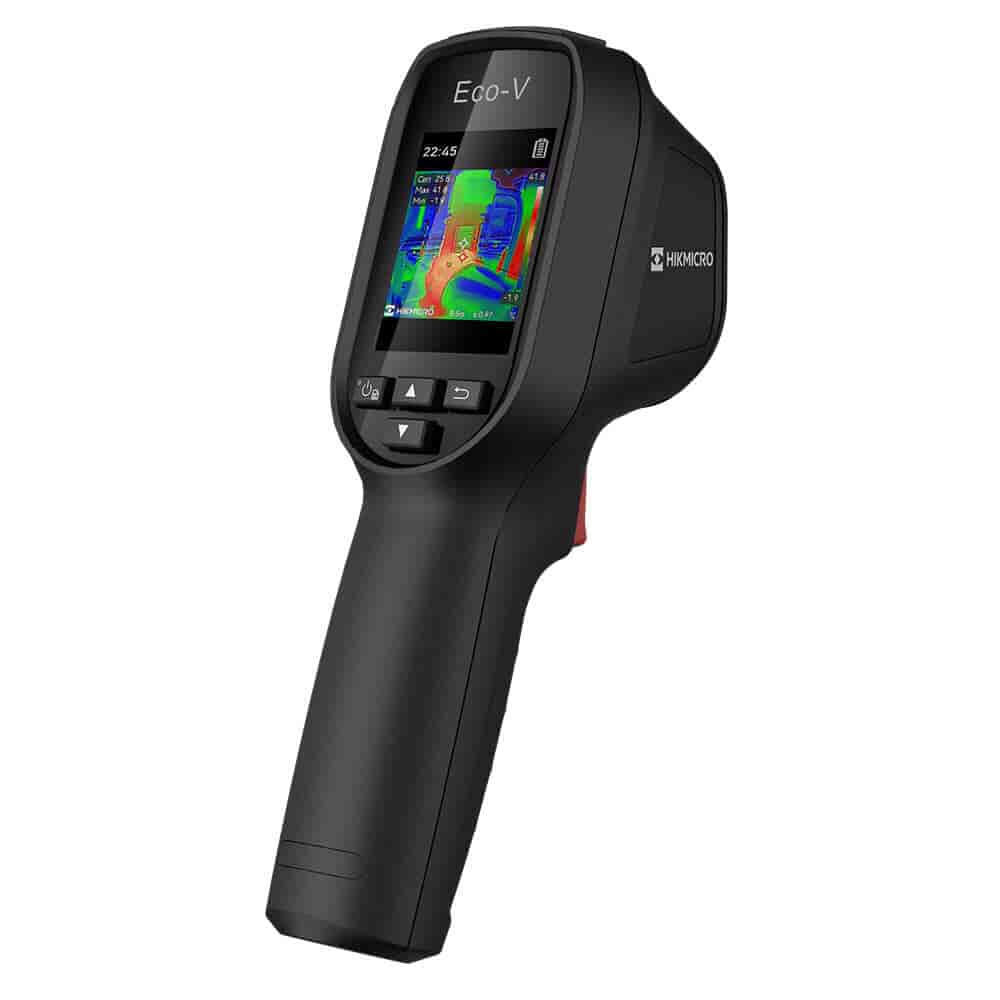

The Hikmicro ECO-V Thermal Imaging Camera is a compact, rugged, professional tool for building inspections, HVAC troubleshooting, electrical diagnostics and maintenance work. With its dual camera system (thermal + visual) and Fusion mode, visual detail can be blended with thermal imagery for sharper, more actionable results.
Featuring a 96 x 96 IR sensor (9,216 pixels) enhanced to 240 x 240 (57,600 pixels) with SuperIR, the ECO-V delivers high-clarity thermal images at a smooth 25Hz refresh rate. A wide 50° field of view suits scanning large areas quickly, and a temperature measurement range of -20°C to 550°C with ±2°C/±2% accuracy suits both residential and industrial applications.
Built tough with IP54 dust/water protection and 2m drop resistance, the ECO-V is designed for real-world fieldwork. With up to 8 hours of continuous battery life, a laser pointer for pinpoint targeting and built-in storage for around 30,000 images, it's a professional solution combining durability with imaging capability.
Fusion mode blending visual and thermal images gives much clearer context for a photo than a thermal image alone, making it easier to identify exactly where an issue is when reviewing images later or sharing a report. An 8-hour battery life and built-in storage for around 30,000 images mean a full day's surveying is covered without needing to offload data mid-job, and a 3-year warranty on an IP54, 2m drop-tested build reflects genuine confidence for daily professional use.
Order the Hikmicro ECO-V Thermal Imaging Camera online today.
| Brand | Hikmicro |
|---|---|
| Product Type | Thermal Imaging Camera |
| Model | ECO-V (HM-TP30-1AQF-Eco-V) |
| Infrared Resolution | 96 x 96 (9,216 Pixels), Enhanced to 240 x 240 with SuperIR |
| NETD Sensitivity | <50 mK (@ 25°C, F#=1.0) |
| Image Frequency | 25 Hz |
| Field of View | 50° x 50° |
| Focus Mode | Focus-Free, Min. Focus 0.1m |
| Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | ±2°C / ±2% of Reading |
| Measurement Tools | Centre Spot, Hot Spot, Cold Spot, 3 Spots, 3 Rectangles, 1 Line |
| Laser Pointer | Class II |
| Image Modes | Thermal, Visual, Fusion |
| Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Above Alarm |
| Display Type | 2.4" LCD, 240 x 320 Resolution |
| Storage | 4GB Internal Memory (~30,000 Images) |
| Battery Life | Up to 8 Hours (Rechargeable Li-Ion) |
| Charging | USB-C, ~3 Hours Full Charge |
| Protection | IP54, Drop Tested 2m |
| Dimensions | 196 x 117 x 59mm |
| Weight | 290g |
| Warranty | 3 Years |
| Included | Camera, USB-C Cable, Quick Start Guide, Calibration Certificate |
