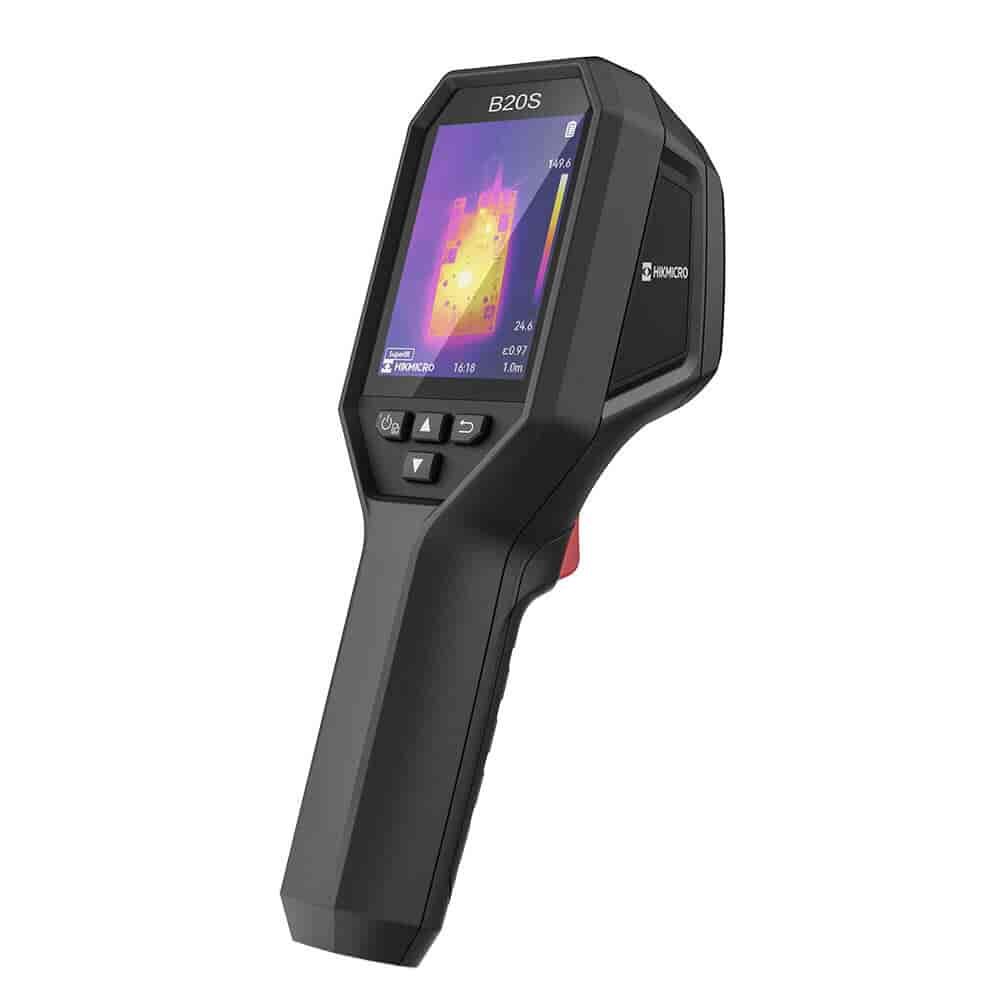

The Hikmicro B20S Handheld Thermal Camera is a compact, high-performance thermal imager for HVAC technicians, building inspectors, electricians and automotive engineers. With a 256 x 192 infrared detector (49,152 pixels), <40mK sensitivity and a 2MP optical camera, it captures sharp, detailed thermal images for faster, more accurate fault detection. SuperIR image enhancement technology upscales captured thermal images to 640 x 480 (307,200 pixels) for significantly improved image quality.
From -20°C to +550°C with an accuracy of ±2°C/2%, the B20S helps find insulation problems, overheating components, water leaks and more. Its 25Hz frame rate ensures smooth imaging, and user-friendly measurement tools such as Centre Spot, Hot Spot, Cold Spot (plus 3 user-definable points) support precise analysis.
Key Features & Benefits
High-Res Imaging: 256 x 192 IR detector with <40mK sensitivity for clear thermal images.
SuperIR Image Enhancement: Upscales captured thermal images to 640 x 480 (307,200 pixels) for improved clarity.
2MP Optical Camera: Capture visible-light images for context and combine with IR via Fusion and PIP modes.
Wide Temp Range: -20°C to +550°C for industrial and HVAC applications.
Multiple Measurement Tools: Centre Spot, Hot Spot, Cold Spot, and 3 custom-defined points for detailed analysis.
Fast 25Hz Frame Rate: Smooth imaging for real-time inspections.
3.2" LCD Display: 640 x 480 touchscreen for easy operation.
Built-In Storage: 16GB memory stores approximately 35,000 radiometric JPEG images.
Rugged & Reliable: IP54, 2m drop-tested, for tough job sites.
Long Battery Life: Up to 6 hours continuous operation, USB-C rechargeable.
Connectivity: Wi-Fi and USB-C for fast data transfer to devices and reporting software.
Automotive engineers, heat issues in engines, exhausts, wiring looms.
Why Buy This Product?
Reaching 550°C makes this suited to hotter industrial and automotive targets that lower-range HVAC-focused cameras can't measure, and SuperIR's real-time upscale to 640 x 480 gives a genuinely sharper preview than the native 256 x 192 sensor alone. A 6-hour battery life is longer than several comparable Hikmicro models, useful for a full day of inspections without needing a mid-shift recharge.
Order the Hikmicro B20S Handheld Thermal Imaging Camera online today.
Specification
Hikmicro B20S Handheld Thermal Imaging Camera Specification
Brand
Hikmicro
Product Type
Thermal Imaging Camera
Model
B20S
IR Resolution
256 x 192 (49,152 Pixels)
SuperIR Enhancement
Upscales to 640 x 480 (307,200 Pixels), Thermal Mode Only
Thermal Sensitivity (NETD)
<40 mK (@25°C, F#=1.0)
Frame Rate
25 Hz
Field of View
37.2° x 50.0°
Temperature Range
-20°C to +550°C (-4°F to +1022°F)
Accuracy
±2°C / ±2% of Reading
Focus
Focus-Free
Display
3.2" LCD, 480 x 640 Resolution
Visual Camera
2MP (1600 x 1200)
Image Modes
Thermal, Optical, Fusion, PIP
Colour Palettes
White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion
