Testo 770-3 TRMS Clamp Meter Premium Kit – 0590 7703 03 | Bluetooth | Retractable Pincer Arm | CAT IV 600V / CAT III 1000V
The Testo 770-3 is the most advanced model in Testo's clamp meter range - a True RMS clamp meter with retractable pincer arm, Bluetooth connectivity to the Testo Smart App, and measurement ranges covering current (AC/DC up to 600A and μA), voltage (up to 1000V AC), resistance, capacitance, frequency, power, continuity, diode and temperature via the included Type K adapter. The premium kit (0590 7703 03) adds crocodile clips, micro clips, magnetic holder and test protocol to the standard kit contents.
In plain terms, a clamp meter is an electrical tester that measures current by clamping around a cable, without needing to break the circuit. The 770-3 takes this further with a retractable pincer arm that slides apart to reach individual cables in tightly packed consumer units and panels where a fixed-jaw clamp can't get around a single cable. The Bluetooth link streams readings live to a smartphone, so you can monitor values from a safe distance or have a second person log the data while you work. It's particularly useful for HVAC and refrigeration engineers checking compressor starting currents, and for electricians carrying out power and load measurements.
Key Features & Benefits
Retractable Pincer Arm - Fully retracts into the instrument body, then extends to clamp around individual cables in tightly packed switchboards and panels - where a fixed-jaw clamp can't select a single cable.
True RMS (TRMS) Measurement - Accurate on non-sinusoidal waveforms - essential for variable speed drives, inverters and switched-mode power supplies.
Bluetooth - Testo Smart App - Streams real-time readings to iOS and Android. View measurement curve graphs, save and send reports. 60m Bluetooth range.
AC/DC Voltage to 1000V - Extended range beyond the standard 600V of most clamp meters.
AC/DC Current to 600A (Clamp) - 0.01A resolution in the lower range (up to 60A) for precision at low current levels.
μA Current Measurement - 0.1 to 600μA (AC/DC) - Via measuring leads - for gas valve coil, ignitor and low-current circuit testing.
Inrush (Starting) Current Capture - Captures the peak current surge at motor or compressor start-up - essential for HVAC and refrigeration diagnostics.
Power Measurement - Active, reactive and apparent power; power factor.
Temperature - Type K Thermocouple Adapter Included - -20°C to +500°C. Adapter is included in the premium kit.
Auto Parameter Detection - Automatically selects AC/DC and test mode (resistance, continuity, diode, capacitance) based on what is connected.
Resistance - 0.1Ω to 60MΩ
Capacitance - 0.001μF to 60,000μF
Frequency - 0 to 10kHz
Two-Line LCD Display - 6,000 Counts
MIN/MAX, Data Hold, Auto Power Off
CAT IV 600V / CAT III 1000V Safety Rating
11MΩ Internal Resistance - High impedance reduces ghost voltage issues.
CE and CSA Certified - EN 61326-1, EN 61010-2-032, EN 61140.
2-Year Warranty
Ideal For
HVAC and refrigeration engineers - compressor inrush current, power measurements, tight heat pump panels
Electricians - load measurements, current and voltage in tightly packed distribution boards
Industrial maintenance - motor testing, power factor, three-phase current measurement
Any application requiring a multifunction clamp meter with Bluetooth data logging

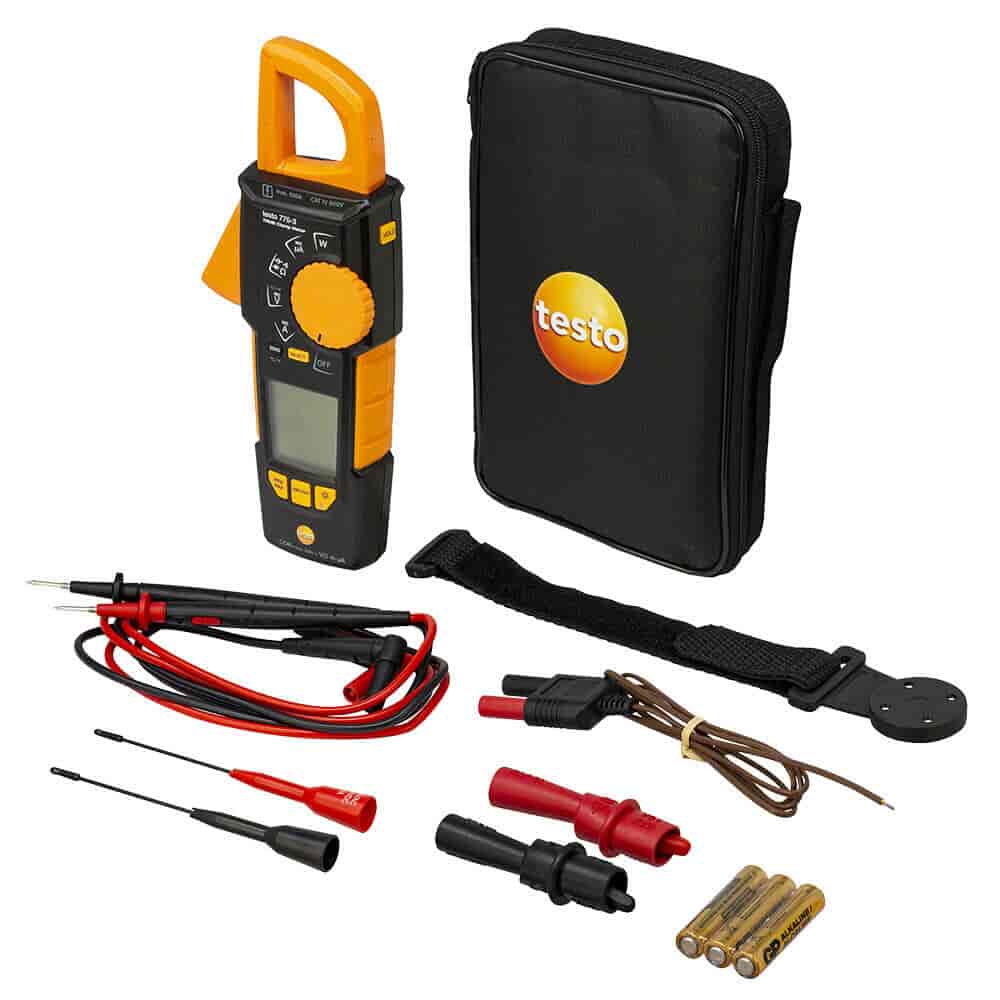

Kit Contents – Premium Kit (0590 7703 03)
Testo 770-3 TRMS Clamp Meter with Bluetooth
1 x set of measuring leads
1 x set of crocodile clips
1 x set of micro clips
1 x magnetic holder
1 x Type K thermocouple temperature adapter
Soft carrying case
3 x AAA batteries
Test protocol
Testo 770-3 Premium Kit - TRMS clamp meter with Bluetooth, retractable pincer arm, power measurement, Type K adapter included. Buy today.
Specification
Testo 770-3 - TRMS Clamp Meter Premium Kit Specification
Testo 770-3 - TRMS Clamp Meter Premium Kit Features
Retractable Pincer Arm - Fully retracts into the instrument body, then extends to clamp around individual cables in tightly packed switchboards and panels - where a fixed-jaw clamp can't select a single cable.
True RMS (TRMS) Measurement - Accurate on non-sinusoidal waveforms - essential for variable speed drives, inverters and switched-mode power supplies.
Bluetooth - Testo Smart App - Streams real-time readings to iOS and Android. View measurement curve graphs, save and send reports. 60m Bluetooth range.
AC/DC Voltage to 1000V - Extended range beyond the standard 600V of most clamp meters.
AC/DC Current to 600A (Clamp) - 0.01A resolution in the lower range (up to 60A) for precision at low current levels.
μA Current Measurement — 0.1 to 600μA (AC/DC) - Via measuring leads - for gas valve coil, ignitor and low-current circuit testing.
Inrush (Starting) Current Capture — Captures the peak current surge at motor or compressor start-up - essential for HVAC and refrigeration diagnostics.
Power Measurement - Active, reactive and apparent power; power factor.
Temperature - Type K Thermocouple Adapter Included - -20°C to +500°C. Adapter is included in the premium kit.
Auto Parameter Detection — Automatically selects AC/DC and test mode (resistance, continuity, diode, capacitance) based on what is connected.
Resistance - 0.1Ω to 60MΩ
Capacitance - 0.001μF to 60,000μF
Frequency - 0 to 10kHz
Two-Line LCD Display - 6,000 Counts
MIN/MAX, Data Hold, Auto Power Off
CAT IV 600V / CAT III 1000V Safety Rating
11MΩ Internal Resistance - High impedance reduces ghost voltage issues.
CE and CSA Certified - EN 61326-1, EN 61010-2-032, EN 61140.
