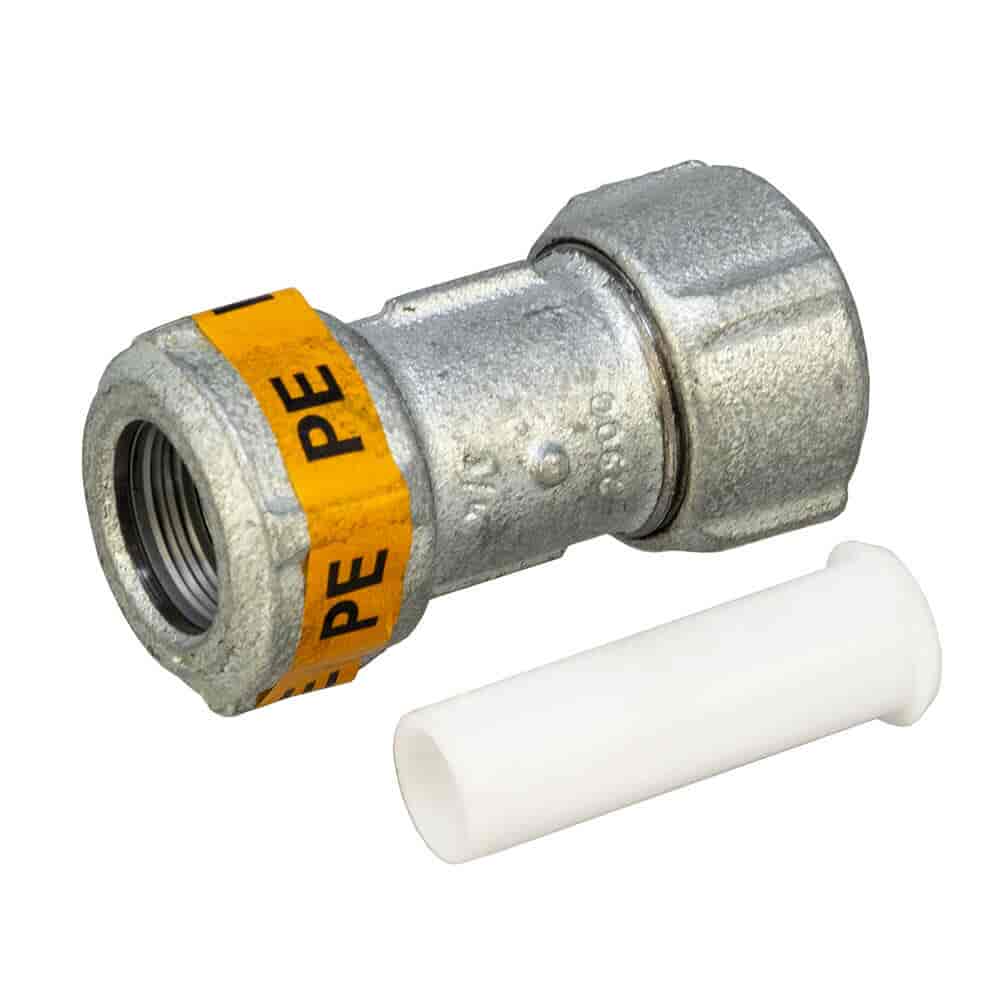

MDPE to Steel Gas Pipe Transition Compression Fitting
The Primofit® Gas Coupling 3/4" Steel Pipe x 25mm MDPE is a compression fitting for safe and easy connection of yellow MDPE gas pipe to steel pipework in Natural Gas or LPG systems. Built for performance and simplicity, this fitting gives a secure, leak free joint without the need for special tools or welding.
Manufactured by a BS EN ISO 9001 certified company, the fitting is suitable for above ground and underground installations (when used with corrosion protection tape). It has insert stiffeners for stability and meets BS EN 10255 and BS EN 10220 standards, making it perfect for gas engineers working in residential, commercial or industrial environments.
Compression Style Connection – Joins MDPE to steel pipe without special tooling.
Supplied with Insert Stiffeners – Pipe stability and long term performance.
Galvanised Nut & Body – Corrosion resistant and suitable for underground use with tape.
GIS/PL3 Compliant – Suitable for installations where galvanised fittings are required.
Certified Manufacturing – Produced by a BS EN ISO 9001 registered manufacturer.
7 Bar Rated at 20°C – High pressure resistance, suitable for most gas systems.
Angular Deflection Tolerance – Misalignment up to 6° for easy installation.
Natural Gas and LPG Compatible – Versatile for all gas piping systems.
Quick Fit: Simple compression connection—no heat, threading or welding required.
Installer Friendly: Supplied with instructions and pipe stiffeners.
Certified & Trusted: Meets UK and EU gas piping standards.
Durable & Versatile: Use above ground or underground with corrosion protection.
Flexible Fit: Ideal for new installations, repairs and retrofits.
| Brand | George Fischer - Primofit® |
|---|---|
| Standards | BS EN 10255, BS EN 10220 and BS EN ISO 9001 |
| Angular Deflection | 6° |
| Colour/Material | Galvanised Malleable Iron |
| Pressure | 7 Bar |
| Size | 3/4" Steel x 25mm MDPE |
| Temperature Range | -20°C to 40°C |
| Dimensions | 86mm x 51mm |
| Insert Stiffeners Included | Yes – For added stability with MDPE pipes |
| Suitable Gases | Natural Gas & LPG |
| Suitable Applications | To join yellow gas MDPE pipe to steel pipe. |
| Warranty | 12 Months |
Compression-Style Connection – Joins MDPE to steel pipe without special tooling.
Supplied with Insert Stiffeners – Enhances pipe stability and long-term performance.
Galvanised Nut & Body – Resistant to corrosion and suitable for underground use with tape.
GIS/PL3 Compliant – Suitable for installations where galvanised fittings are required.
Certified Manufacturing – Produced by a BS EN ISO 9001 registered manufacturer.
7 Bar Rated at 20°C – Strong pressure resistance, suitable for most gas systems.
Angular Deflection Tolerance – Accommodates misalignment of up to 6° for easier installation.
Natural Gas and LPG Compatible – Versatile solution for various gas piping systems.
