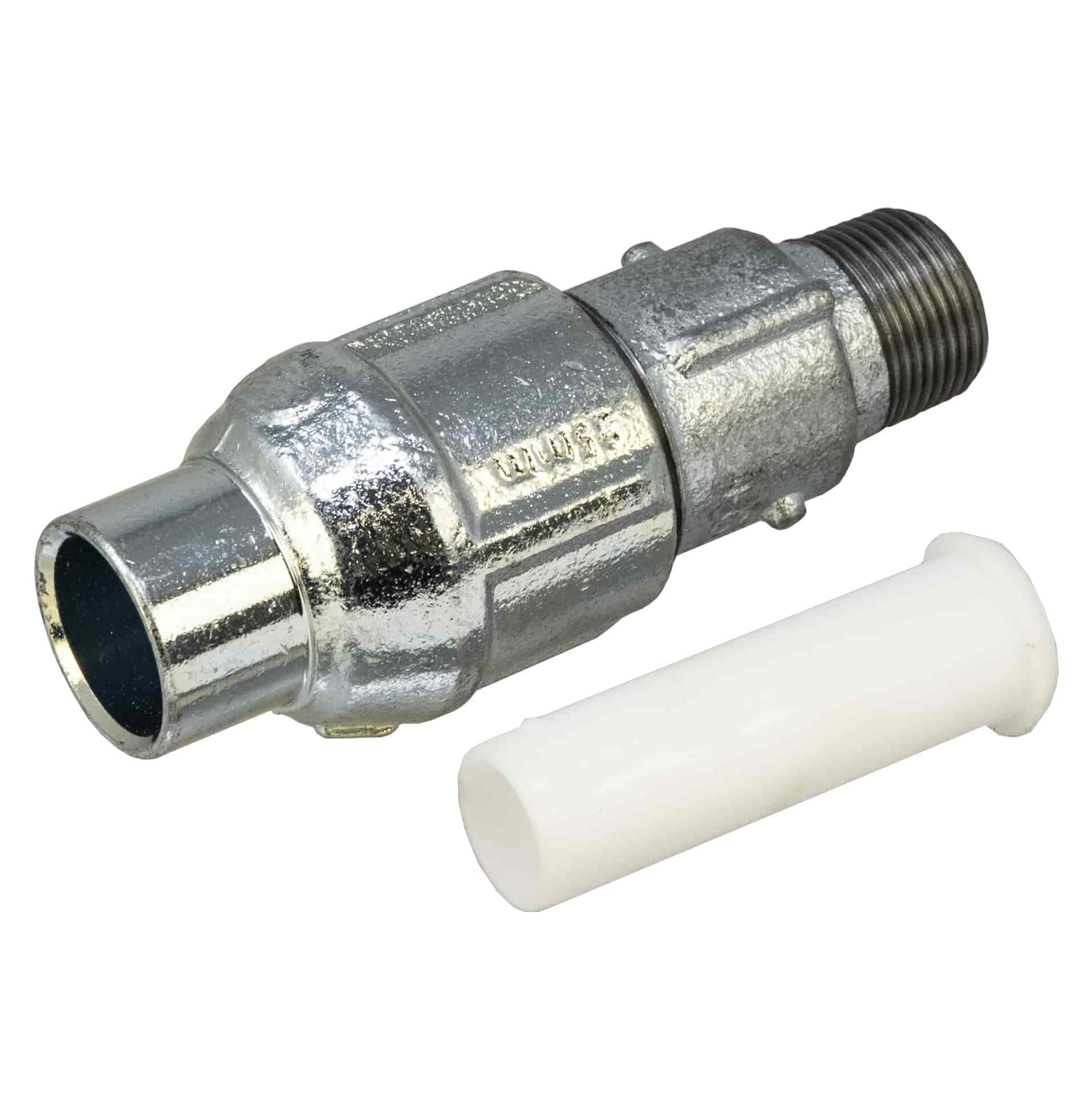

Connecting yellow MDPE gas pipe to steel pipework without welding, threading, or specialist tooling is exactly what this Primofit® compression adaptor is built for. The ¾" BSP male thread mates with standard steel gas pipework, while the 25mm MDPE end takes yellow gas pipe directly, with the insert stiffener supplied to maintain the MDPE's shape under compression.
The galvanised malleable iron body meets BS EN 10255 and BS EN 10220, and the fitting is rated to 7 bar at 20°C — though it's worth noting the actual maximum operating pressure in a given installation also depends on the specification of the MDPE pipe being connected, not the fitting alone. Up to 6° of angular deflection is built in, giving some tolerance for minor pipe misalignment during installation, and the GRP sleeve adds extra mechanical protection at the transition point.
A compression fitting that needs no welding or threading gets the MDPE-to-steel transition done faster on site, and the galvanised body means it holds up whether the run is buried or exposed. With BS EN 10255 and BS EN 10220 compliance and a genuine GF Primofit® pedigree behind it, this is the specified fitting for the job rather than a generic substitute.
Order the Primofit® Galv Gas Adaptor 3/4" BSPM x 25mm MDPE with GRP Sleeve online today.
| Brand | George Fischer – Primofit® |
|---|---|
| Standards | BS EN 10255, BS EN 10220 and BS EN ISO 9001 |
| Angular Deflection | 6° |
| Colour/Material | Galvanised Malleable Iron |
| Pressure | 7 Bar at 20°C (Also Dependent on MDPE Pipe Specification) |
| Size | ¾" BSPM x 25mm MDPE |
| Temperature Range | -20°C to 40°C |
| Dimensions (H x Diameter) | 123mm x 51mm |
| Insert Stiffeners Included | Yes – For Added Stability with MDPE Pipes |
| Suitable Gases | Natural Gas & LPG |
| Suitable Applications | To Join Yellow Gas MDPE Pipe to Steel Pipe |
| Warranty | 12 Months |
