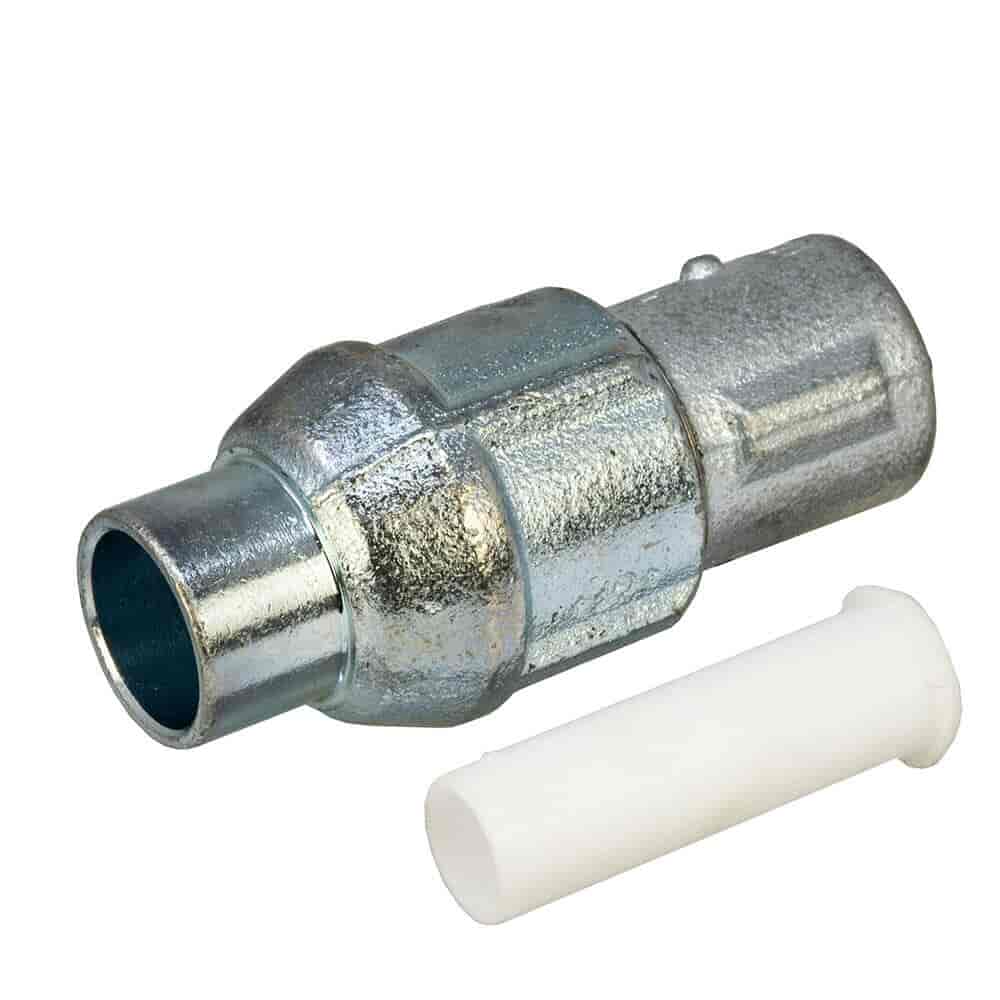

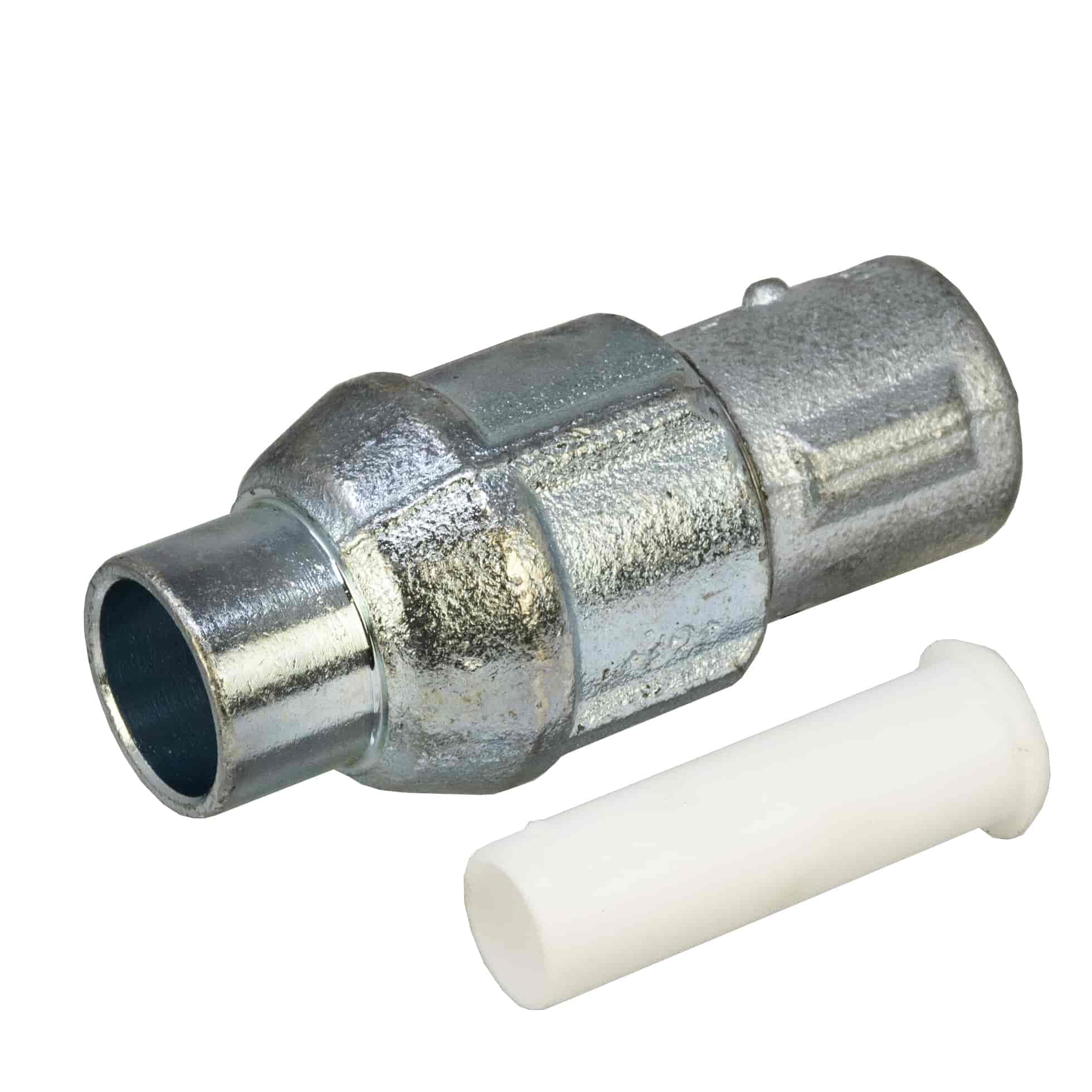

Primofit® Galv Gas Adaptor 3/4" BSP x 25mm MDPE with GRP Sleeve
Connecting yellow MDPE gas pipe to steel pipework without welding, threading, or specialist tooling is exactly what this Primofit® compression adaptor is built for. The BSP male thread mates with standard steel gas pipework, while the 25mm MDPE end takes yellow gas pipe directly, with the insert stiffener supplied to maintain the MDPE's shape under compression.
The galvanised malleable iron body meets BS EN 10255 and BS EN 10220, and the fitting is rated to 7 bar at 20°C — though the actual maximum operating pressure in a given installation also depends on the specification of the MDPE pipe being connected, not the fitting alone. Up to 6° of angular deflection is built in, giving some tolerance for minor pipe misalignment during installation, and the GRP sleeve adds extra mechanical protection at the transition point.
Key Features & Benefits
Reliable Compression Fitting: Connects MDPE to steel with no special tooling required.
Galvanised Malleable Iron: Corrosion resistant for long service life.
BS EN 10255 & BS EN 10220 Compliant: Industry-approved gas safety and performance standards.
High Pressure Rating: Up to 7 bar at 20°C, though also dependent on the MDPE pipe specification used.
Angular Deflection Flexibility: Up to 6° misalignment tolerance for easier installation.
Wide Temperature Range: -20°C to +40°C operating range.
Manufactured to BS EN ISO 9001 Standards: Consistent quality and reliability.
Ideal For
Transitioning yellow MDPE gas pipe to steel pipework.
Natural gas and LPG installations.
Residential, commercial, and industrial gas systems.
Gas engineers needing a compliant, no-tooling MDPE-to-steel connection.
Why Buy This Product?
A compression fitting that needs no welding or threading gets the MDPE-to-steel transition done faster on site, and the galvanised body means it holds up whether the run is buried or exposed. With BS EN 10255 and BS EN 10220 compliance and a genuine GF Primofit® pedigree behind it, this is the specified fitting for the job rather than a generic substitute.
Order the Primofit® Galv Gas Adaptor 3/4" BSP x 25mm MDPE with GRP Sleeve online today.
Specification
Primofit® Galv Gas Adaptor 3/4" BSP x 25mm MDPE with GRP Sleeve Specification
Brand
George Fischer – Primofit®
Standards
BS EN 10255, BS EN 10220 and BS EN ISO 9001
Angular Deflection
6°
Colour/Material
Galvanised Malleable Iron
Pressure
7 Bar at 20°C (Also Dependent on MDPE Pipe Specification)
Size
¾" BSP x 25mm MDPE
Temperature Range
-20°C to 40°C
Dimensions (H x Diameter)
98mm x 51mm
Insert Stiffeners Included
Yes – For Added Stability with MDPE Pipes
Suitable Gases
Natural Gas & LPG
Suitable Applications
To Join Yellow Gas MDPE Pipe to Steel Pipe
Warranty
12 Months
Features
Primofit® Galv Gas Adaptor 3/4" BSP x 25mm MDPE with GRP Sleeve Features
Reliable Compression Fitting: Connects MDPE to steel with no special tooling required.
Galvanised Malleable Iron: Corrosion resistant for long service life.
BS EN 10255 & BS EN 10220 Compliant: Industry-approved gas safety and performance standards.
High Pressure Rating: Up to 7 bar at 20°C, though also dependent on the MDPE pipe specification used.
Angular Deflection Flexibility: Up to 6° misalignment tolerance for easier installation.
Wide Temperature Range: -20°C to +40°C operating range.
Manufactured to BS EN ISO 9001 Standards: Consistent quality and reliability.
