Gas MDPE Pipe Compression Fitting

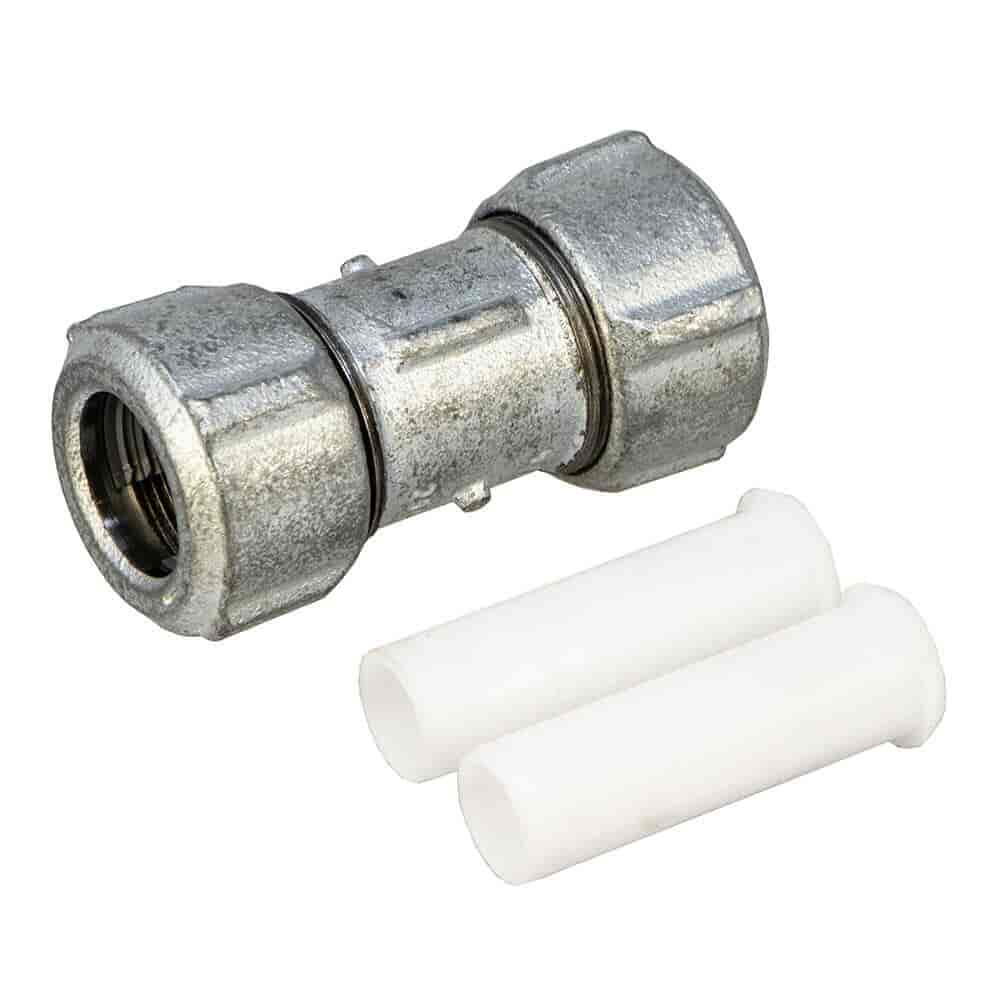

The Primofit® 25mm MDPE Galvanised Coupling is a high quality compression fitting to join yellow MDPE gas pipe for Natural Gas or LPG systems. For straight pipe connections and transitions to steel pipework (BS EN 10255 / BS EN 10220) it gives a strong, leak free seal without heat, welding or special tools.
Manufactured by a BS EN ISO 9001 approved company, this galvanised coupling has insert stiffeners for extra support and is GIS/PL3 compliant when used with galvanised fittings — perfect for above ground and underground installations.
MDPE Pipe Compression Fitting – Joins 25mm yellow gas MDPE pipe.
Galvanised Nut & Body – For underground or outdoor use.
Insert Stiffeners Supplied – For connection to MDPE pipes.
No Special Tools Required – Standard tools only.
High Pressure Tolerance – 7 bar at 20°C (pipe pressure rating dependent).
Angular Deflection of up to 6° – Allows for minor pipe misalignment during installation.
Natural Gas & LPG Compatible – For use with both gases.
GIS/PL3 Compliant – Galvanised finish meets regulations.
Underground Use Ready – Wrap with corrosion protection tape
Professional Quality: Used by gas installers for secure, compliant installations.
Time Saving: No welding, threading or heat required.
Certified Manufacturing: Made by a BS EN ISO 9001 approved facility.
Safe & Flexible: Withstands pressure and pipe misalignment.
Underground Use: Wrap with corrosion tape for buried applications.
Whether you’re installing new, maintaining or upgrading, the Primofit® Galvanised 25mm MDPE Coupling has got you covered.
| Brand | George Fischer - Primofit® |
|---|---|
| Standards | BS EN 10255, BS EN 10220 and BS EN ISO 9001 |
| Angular Deflection | 6° |
| Colour/Material | Galvanised Malleable Iron |
| Pressure | 7 Bar |
| Size | 25mm MDPE |
| Temperature Range | -20°C to 40°C |
| Dimensions | 86mm x 51mm |
| Insert Stiffeners Included | Yes – For added stability with MDPE pipes |
| Suitable Gases | Natural Gas & LPG |
| Suitable Applications | To join yellow gas MDPE pipe to steel pipe. |
| Warranty | 12 Months |
Compression-Style Connection – Joins MDPE to steel pipe without special tooling.
Supplied with Insert Stiffeners – Enhances pipe stability and long-term performance.
Galvanised Nut & Body – Resistant to corrosion and suitable for underground use with tape.
GIS/PL3 Compliant – Suitable for installations where galvanised fittings are required.
Certified Manufacturing – Produced by a BS EN ISO 9001 registered manufacturer.
7 Bar Rated at 20°C – Strong pressure resistance, suitable for most gas systems.
Angular Deflection Tolerance – Accommodates misalignment of up to 6° for easier installation.
Natural Gas and LPG Compatible – Versatile solution for various gas piping systems.
