Pegler VSH Xpress 28mm Gas Straight Coupling

In stock
SKU
39702
£8.14 £6.78
Or 3 Interest-Free Payments of £2.71
apple pay
klarna
google pay
paypal
chevron-up
Description

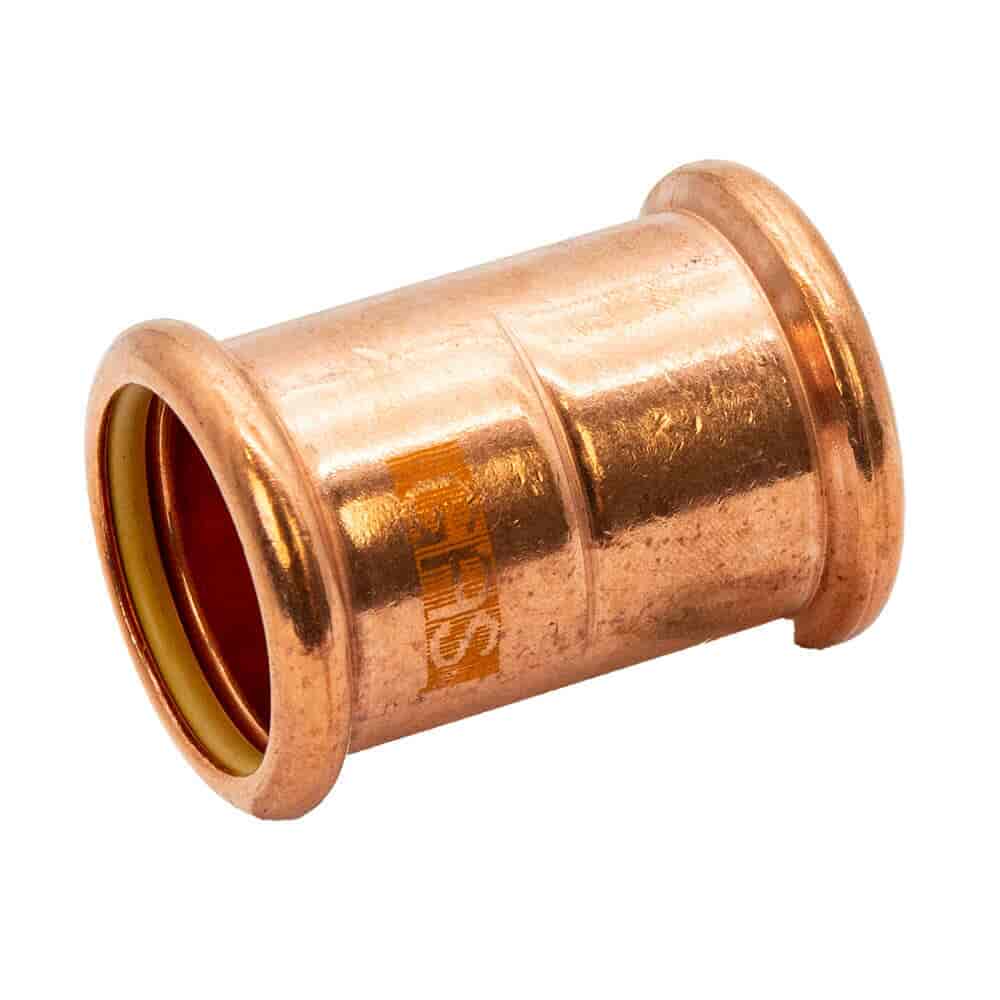

Pegler VSH XPress 28mm Gas Straight Coupling (39702)

Gas pipework needs a fitting made for gas, and a press-fit one avoids a flame in the joint. The Pegler VSH XPress 28mm Gas Straight Coupling is an SG1 copper press-fit coupling for 28mm copper tube on internal and external above-ground 2nd and 3rd family gas installation pipework, which means natural gas and LPG.

It’s BSI Kitemark approved to BS 8537:2010, with DVGW, INIG, KIWA and OVGW approvals listed by Pegler for the XPress Gas range. A yellow HNBR O-ring and a permanent yellow gas marking identify it as a gas fitting. It’s for use with BS EN 1057 R250 and R290 copper tube with M-profile jaws, and it carries Pegler’s 25-year guarantee when used with copper tube to BS EN 1057 (conditions apply).

Pegler gives the working pressure as 1 bar inside buildings and 5 bar outside buildings (maximum test pressure 7.5 bar), at -20°C to 70°C. The XPress Gas fittings don’t have the Leak Before Press feature, so check each joint is pressed and tested as part of your installation process. Don’t use the water-range XPress fittings on gas. Gas work must be carried out by a suitably qualified, registered gas installer in accordance with the relevant standards.

Key Features & Benefits
  • Heat-Free Press-Fit: No naked flame is needed to make the joint.
  • BSI Kitemark (BS 8537:2010): With DVGW, INIG, KIWA and OVGW approvals listed by Pegler.
  • Yellow O-Ring and Gas Marking: Easy to tell from water fittings.
  • Working Pressure: 1 bar inside buildings, 5 bar outside (maximum test pressure 7.5 bar).
  • -20°C to 70°C: Approved temperature range.
  • 2nd and 3rd Family Gases: Natural gas and LPG, above ground.
  • 25-Year Guarantee: With copper tube to BS EN 1057, conditions apply.
Ideal For
  • Domestic and commercial above-ground gas pipework in copper tube.
  • Registered gas installers who want a heat-free joint.
  • Internal pipework up to 1 bar and external pipework up to 5 bar.
Why Buy This Product?

For gas pipework, you want a joint without flame and a fitting made for gas. This coupling is Kitemarked, marked yellow for gas and rated to 1 bar inside and 5 bar outside buildings.

Order the Pegler VSH XPress 28mm Gas Straight Coupling online today.

Specification

Pegler VSH Xpress 28mm Gas Straight Coupling Specification

Brand Pegler Yorkshire
Product Code 39702 (SG1)
Product Type XPress Gas Straight Coupling (Equal)
Size 28mm x 28mm
Material Copper
Approvals BSI Kitemark (BS 8537:2010); DVGW, INIG, KIWA, OVGW (Per Pegler)
For Use With BS EN 1057 R250 / R290 Copper Tube
Connection Press, M Profile
Working Pressure 1 bar Inside Buildings; 5 bar Outside Buildings
Maximum Test Pressure 7.5 bar
Temperature Range -20°C to 70°C
O-Ring Yellow HNBR
Guarantee 25 Years With BS EN 1057 Copper Tube (Conditions Apply)
Suitable Applications Above-Ground 2nd and 3rd Family Gas (Natural Gas and LPG), Installed by a Registered Gas Installer
Features

Pegler VSH Xpress 28mm Gas Straight Coupling Features

  • Heat-Free Press-Fit: No naked flame is needed to make the joint.
  • BSI Kitemark (BS 8537:2010): With DVGW, INIG, KIWA and OVGW approvals listed by Pegler.
  • Yellow O-Ring and Gas Marking: Easy to tell from water fittings.
  • Working Pressure: 1 bar inside buildings, 5 bar outside (maximum test pressure 7.5 bar).
  • -20°C to 70°C: Approved temperature range.
  • 2nd and 3rd Family Gases: Natural gas and LPG, above ground.
  • 25-Year Guarantee: With copper tube to BS EN 1057, conditions apply.
