Description

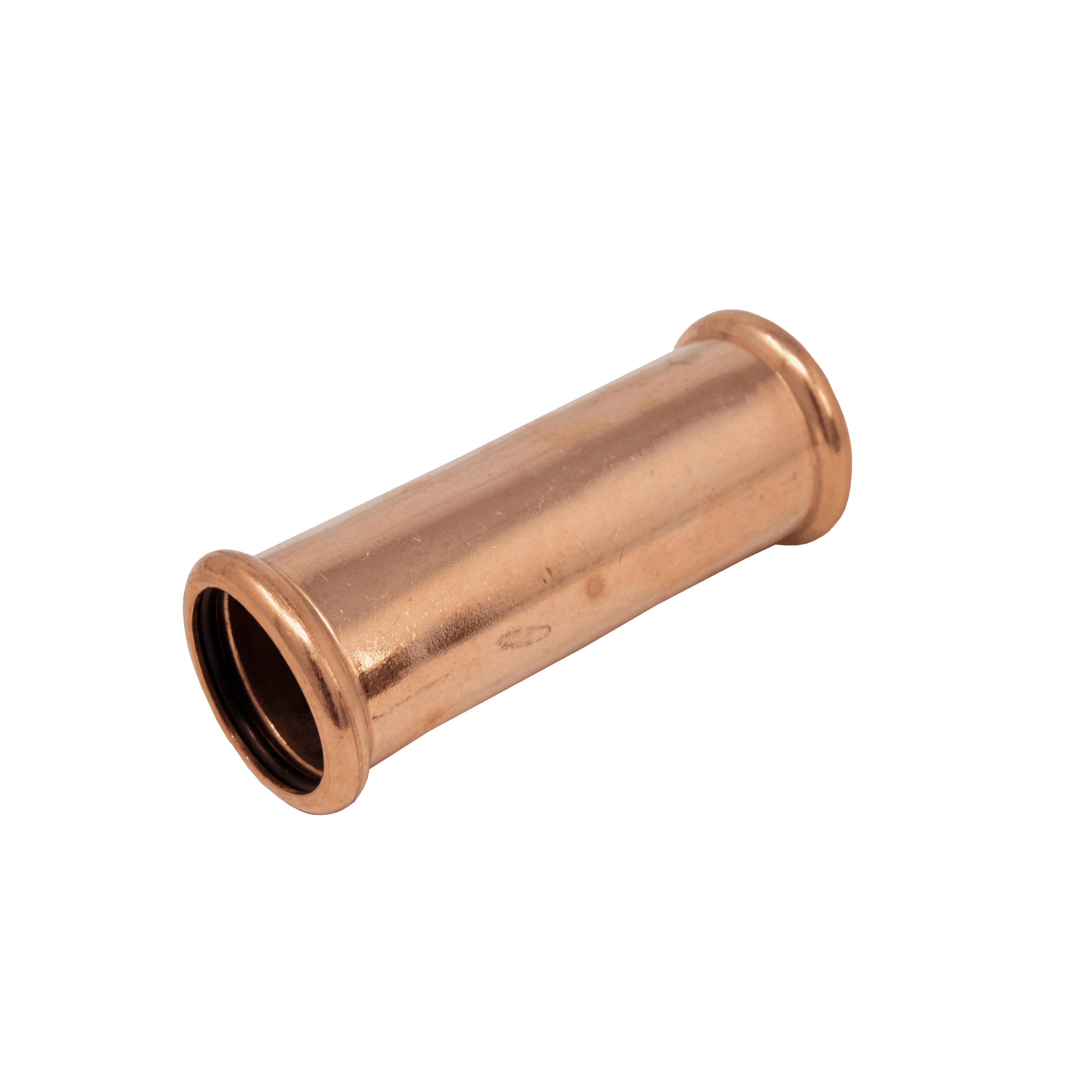

Pegler Yorkshire VSH XPress 28mm Water Slip Coupling (38046)

A slip coupling lets you repair a pipe that can’t be moved apart. The Pegler Yorkshire VSH XPress S1S is a copper slip coupling with press ends on both sides and no tube stop, so it can slide fully over the tube, for jointing 28mm copper tube without a flame. It’s 90mm long.

It’s BSI Kitemark approved to BS 8537:2010 and WRAS approved, and Pegler lists DVGW approval as well. It’s for hot and cold water services, vented and unvented closed circuit heating and chilled water, and rated to 16 bar across a temperature range of -24°C to 110°C. The Leak Before Press feature means an unpressed fitting shows up during pressure testing. It’s M-profile jaw compatible, for use with half-hard and hard copper tube to BS EN 1057 R250 and R290, and it carries Pegler’s 25-year manufacturer’s guarantee (conditions apply).

Because there’s no tube stop, follow Pegler’s installation instructions for insertion depth. The joint needs no flame, though site rules still apply. This fitting is for water and heating, and isn’t for gas: Pegler has a separate XPress Gas range.

Key Features & Benefits
  • Slip Pattern, No Tube Stop: Slides fully over the tube, for repairs.
  • Heat-Free Press-Fit: No flame is needed to make the joint.
  • BSI Kitemark (BS 8537:2010) and WRAS Approved: Plus DVGW, per Pegler's data.
  • Leak Before Press: Unpressed fittings are identified during pressure testing.
  • 16 Bar, -24°C to 110°C: Pressure rating across the temperature range.
  • M-Profile Jaw Compatible: For use with R250 and R290 copper tube.
  • 25-Year Manufacturer's Guarantee: Conditions apply.
Ideal For
  • Repairing a 28mm copper pipe where the ends can't be moved apart.
  • Hot and cold water services and closed circuit heating.
  • Installers who want a heat-free jointing method.
Why Buy This Product?

For repairing a 28mm copper pipe that can’t be moved apart, a slip coupling slides over the tube and presses on without a flame. This one is Kitemarked and WRAS approved, with Leak Before Press.

Order the Pegler Yorkshire VSH XPress 28mm Water Slip Coupling online today.

Specification

Pegler VSH Xpress Water Slip Coupling - 28mm Specification

Brand Pegler Yorkshire
Product Code 38046 (S1S)
Product Type XPress Slip Coupling
Size 28mm x 28mm
Ends Press x Press, Without Tube Stop
Material Copper
Approvals BSI Kitemark (BS 8537:2010); WRAS; DVGW
For Use With BS EN 1057 R250 / R290 Copper Tube
Connection Press (M Profile)
Maximum Pressure 16 bar
Temperature Range -24°C to 110°C at 16 bar
Length 90mm
Guarantee 25 Years (Conditions Apply)
Suitable Applications Hot and Cold Water, Vented and Unvented Closed Circuit Heating, Chilled Water
Not Suitable For Gas (Use XPress Gas Range)
Features

Pegler VSH Xpress Water Slip Coupling - 28mm Features

  • Slip Pattern, No Tube Stop: Slides fully over the tube, for repairs.
  • Heat-Free Press-Fit: No flame is needed to make the joint.
  • BSI Kitemark (BS 8537:2010) and WRAS Approved: Plus DVGW, per Pegler's data.
  • Leak Before Press: Unpressed fittings are identified during pressure testing.
  • 16 Bar, -24°C to 110°C: Pressure rating across the temperature range.
  • M-Profile Jaw Compatible: For use with R250 and R290 copper tube.
  • 25-Year Manufacturer's Guarantee: Conditions apply.
