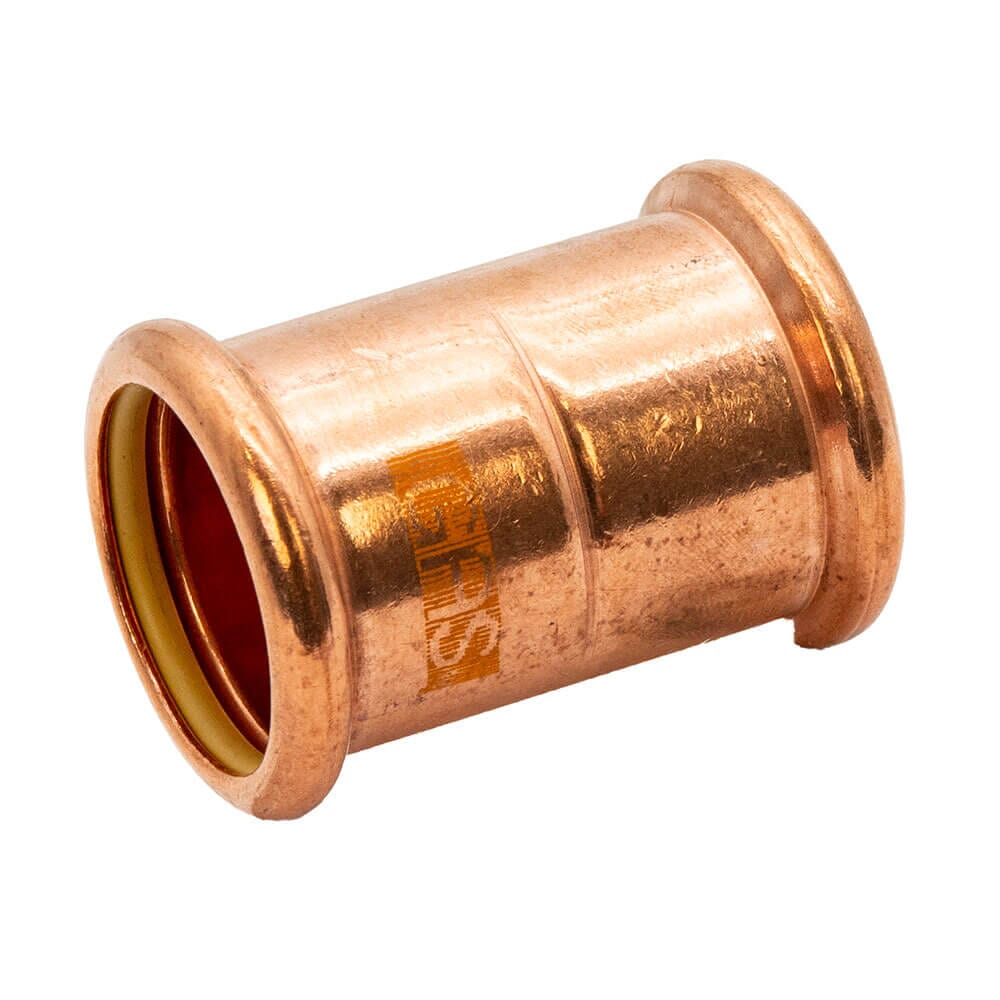

Pegler VSH Xpress Gas Slip Coupling - 28mm
You might also like:
Gas pipework needs a fitting made for gas, and a slip coupling lets you repair a pipe that can’t be moved apart. The Pegler Yorkshire VSH XPress Gas Slip Coupling is an SG1 slip copper coupling with press ends on both sides and no tube stop, so it can slide fully over the tube. It’s for 28mm copper tube on internal and external above-ground 2nd and 3rd family gas installation pipework, which means natural gas and LPG. It’s 90mm long.
It’s BSI Kitemark approved to BS 8537:2010. A yellow HNBR O-ring and a permanent yellow gas marking identify it as a gas fitting. It’s for use with BS EN 1057 R250 and R290 copper tube with M-profile jaws, and it carries Pegler’s 25-year guarantee when used with copper tube to BS EN 1057 (conditions apply).
Pegler gives the working pressure as 1 bar inside buildings and 5 bar outside buildings (maximum test pressure 7.5 bar), at -20°C to 70°C. Because there’s no tube stop, follow Pegler’s installation instructions for insertion depth, and check that every joint is pressed and tested as part of your installation process. Don’t use the water-range XPress fittings on gas. Gas work must be carried out by a suitably qualified, registered gas installer in accordance with the relevant standards.
For repairing 28mm copper gas pipework that can’t be moved apart, a slip coupling slides over the tube and presses on without a flame. This one is Kitemarked, marked yellow for gas and rated to 1 bar inside and 5 bar outside buildings.
Order the Pegler Yorkshire VSH XPress 28mm Gas Slip Coupling online today.
| Brand | Pegler Yorkshire |
|---|---|
| Product Code | 39712 (SG1 Slip) |
| Product Type | XPress Gas Slip Coupling |
| Size | 28mm x 28mm |
| Ends | Press x Press, Without Tube Stop |
| Material | Copper |
| Approvals | BSI Kitemark (BS 8537:2010) |
| For Use With | BS EN 1057 R250 / R290 Copper Tube |
| Connection | Press (M Profile) |
| Working Pressure | 1 bar Inside Buildings; 5 bar Outside Buildings |
| Maximum Test Pressure | 7.5 bar |
| Temperature Range | -20°C to 70°C |
| O-Ring | Yellow HNBR |
| Length | 90mm |
| Guarantee | 25 Years With BS EN 1057 Copper Tube (Conditions Apply) |
| Suitable Applications | Above-Ground 2nd and 3rd Family Gas (Natural Gas and LPG), Installed by a Registered Gas Installer |
