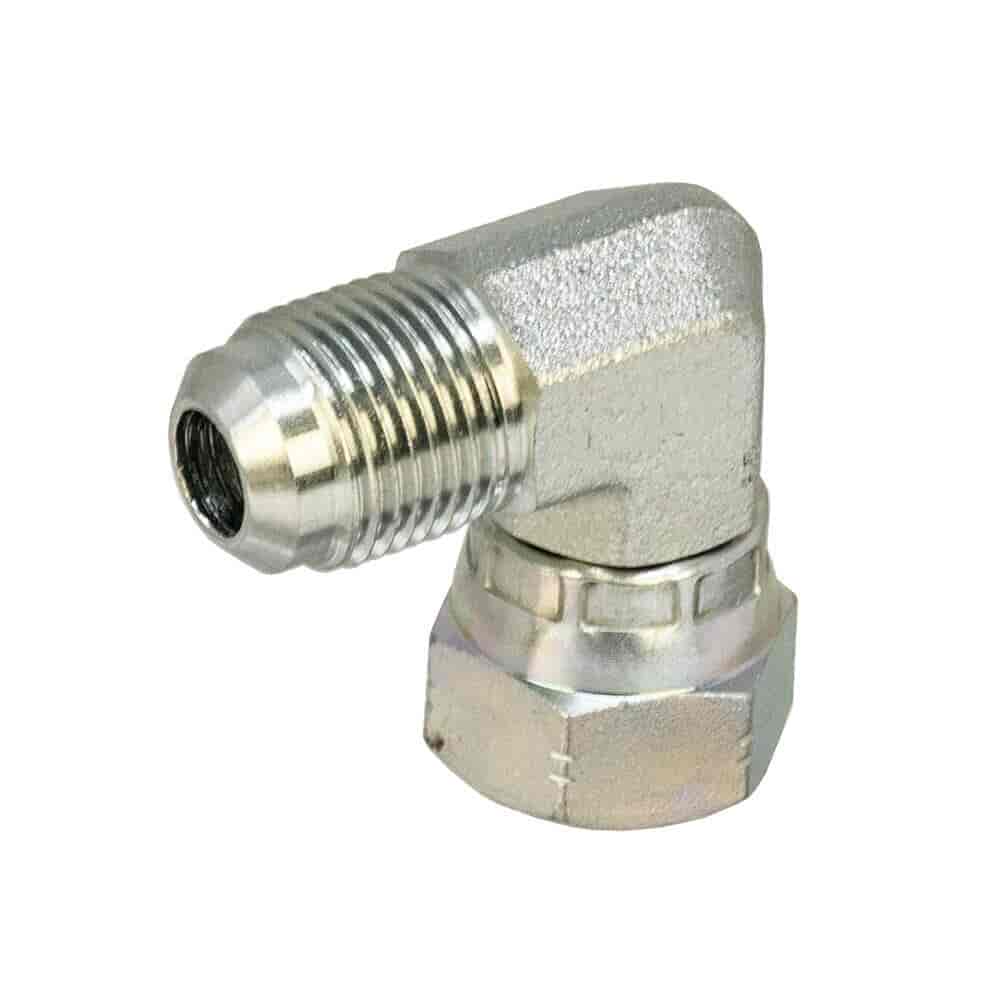

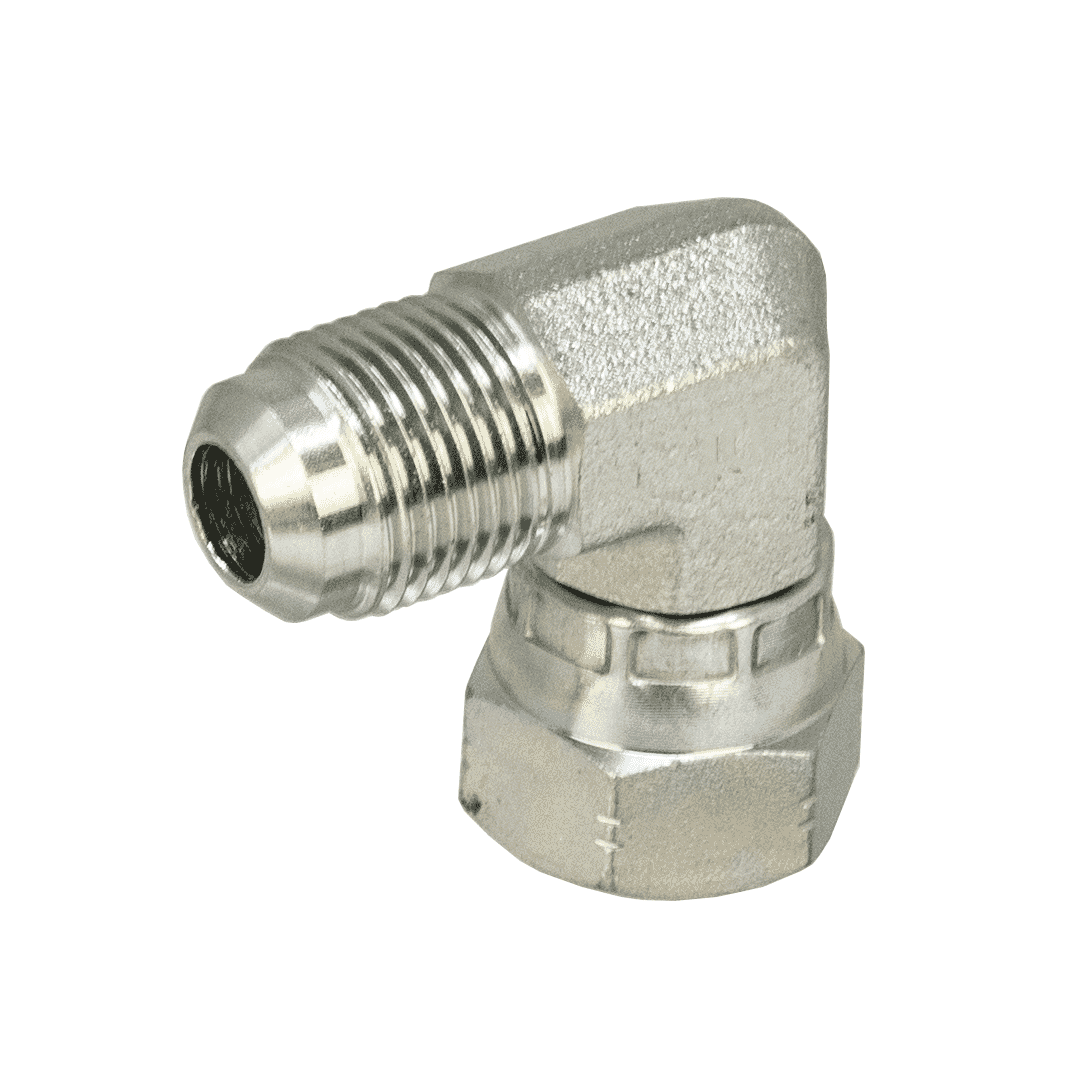

A 90° elbow adaptor for the Gaslow refillable cylinder fill valve — used in two specific scenarios where a straight hose connection would cause kinking or hose damage. 2-year warranty.
The 01-4210 is used in two installation situations:
Gas locker height restriction above the No.2 cylinder — When there is insufficient clearance above the second cylinder's fill valve for the connector hose to exit straight up without bending sharply against the locker roof, the 90° adaptor turns the fill valve connection sideways so the hose can route horizontally rather than vertically. This prevents sharp bends and hose kinking at the valve.
Filler kit hose routing through an access door or panel — When installing the 01-4100 filler kit, if there is limited clearance behind the filler point (between the filler pod and the locker wall), the 90° adaptor allows the stainless steel hose to fold back naturally with the direction of the access door opening rather than being forced through a tight bend. Gaslow's installation instructions for the 01-4100 specifically recommend this adaptor in this configuration.
Key Features & Benefits
90° Angle at the Fill Valve — Redirects the fill valve hose connection from vertical to horizontal in height-restricted lockers, preventing hose kinking against the locker roof.
Filler Hose Door Routing — Allows the 01-4100 stainless steel fill hose to fold back through the door correctly rather than bending at the filler pod connection.
Prevents Hose Damage — Eliminates sharp bend stress on the stainless steel fill hose at the connection point.
Durable Metal Construction
2-Year Warranty
Ideal For
Twin cylinder installations where the No.2 cylinder has limited clearance above the fill valve
Filler kit (01-4100) installations where clearance behind the filler pod is restricted
Any Gaslow refillable installation where a straight fill valve hose connection would cause kinking
The solution for height-restricted cylinders and filler hose routing. Order the Gaslow 90° 2nd Cylinder Fill Adaptor 01-4210 today.
Specification
Gaslow 90 Degree 2nd Cylinder Fill Adaptor Specification
Brand
Gaslow
Part Number
01-4210
Product Type
90° Fill Valve Adaptor
Angle
90°
Primary Uses
Height restriction at No.2 cylinder fill valve; filler kit hose door routing
Compatible With
Gaslow refillable cylinder fill valves & Gaslow 01-4100 filler kit
Material
Durable metal
Warranty
2 years
Features
Gaslow 90 Degree 2nd Cylinder Fill Adaptor Features
90° Angle at the Fill Valve — Redirects the fill valve hose connection from vertical to horizontal in height-restricted lockers, preventing hose kinking against the locker roof.
Filler Hose Door Routing — Allows the 01-4100 stainless steel fill hose to fold back through the door correctly rather than bending at the filler pod connection.
Prevents Hose Damage — Eliminates sharp bend stress on the stainless steel fill hose at the connection point.
Durable Metal Construction
2-Year Warranty
