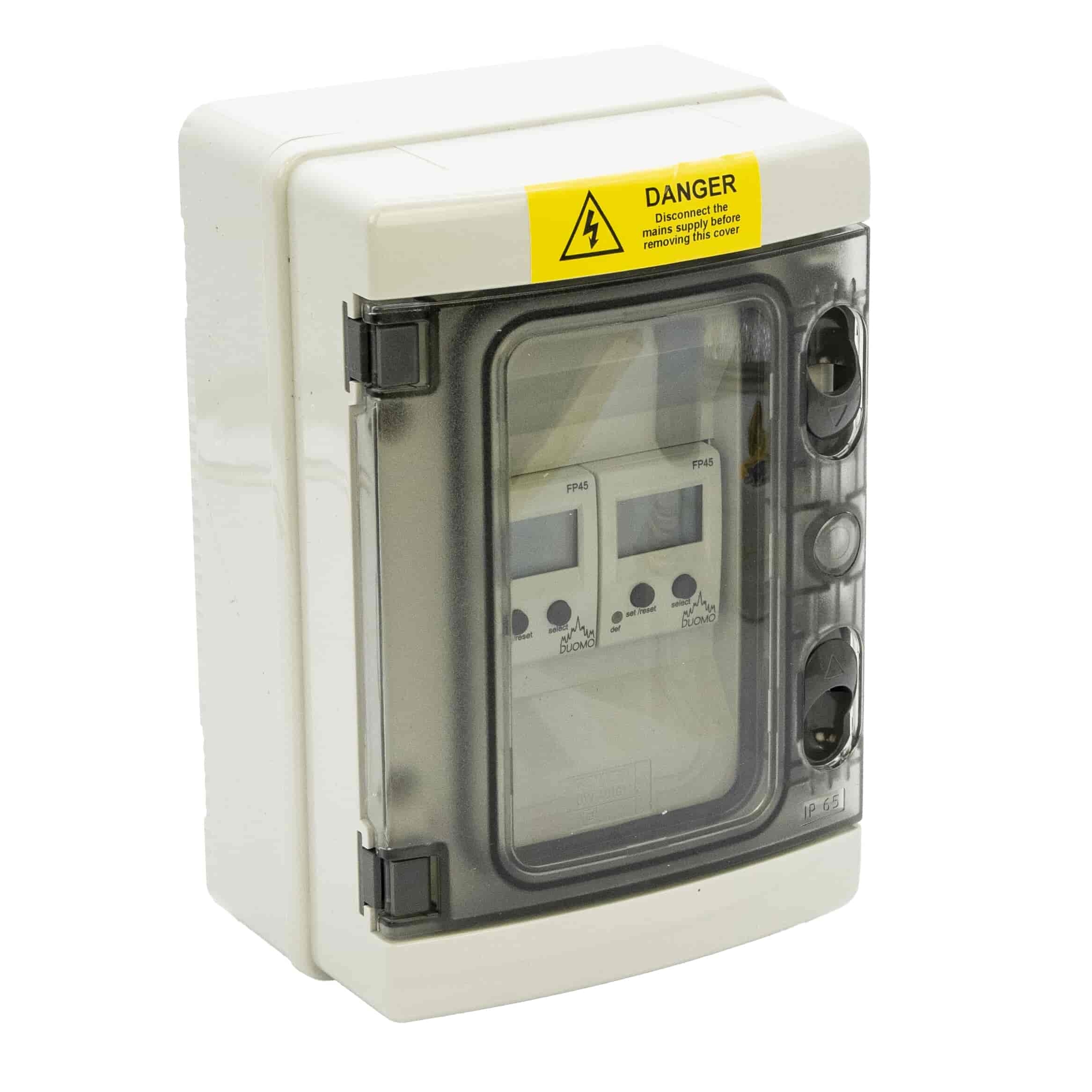

Duomo FP45 Double Current Monitor with Enclosure – Two-Fan BS 6173 Gas Interlock
Double model of Duomo FP45 current monitor -- monitors two simultaneous extraction fan motors in order to confirm BS 6173 gas interlock compliance. Direct measurement current range from 0.1 A to 10 A AC and DC. LCD display. Three operating modes — overcurrent, undercurrent, current band. Dual threshold levels to verify fan operation and loading. Enclosed unit. Two-fan models available. 230 V AC @ 50 Hz / 60 Hz. -20° C to +55° C. EN 50022 compliant. Dimensions: 143 x 210 x 100 mm. Includes three year limited warranty.
The Duomo FP45 double current monitor will check the electrical current being drawn by two separate motors — one for each of two extraction fans — prior to permitting gas to be released to cooking equipment. This is mandatory per BS 6173:2009 for all commercial food service operations. The dual switching levels create a complete monitoring package: the lower switching point verifies the fan is working (i.e., minimum current consumption), while the upper switching point verifies the fan's load is at its expected value during normal operation (e.g., stops false alarms when the fan is still operational but its load has decreased due to a damaged belt or an impeller slipping).
The FP45 provides AC and DC current monitoring capabilities, as well as, overcurrent, undercurrent and current band operating modes. It also includes adjustable release and hysteresis thresholds, T1 and T2 type delay times, and can activate fault storage for diagnostic use. All user parameters are entered through two push buttons located on the front panel which have backlit LCD displays providing visual feedback.
Support for direct measurements of 0.1-10A, and support through a current transformer coil (50/5 to 600/5) for installations where a higher current needs to be measured.
Key Features & Benefits
Monitors Two Fans 0 Simultaneous monitoring of two extraction fans for extract and supply fan applications.
Two Level Switching Points - Low point: fan running confirmation. High point: normal load verification. Detects stopped fans and broken belts/slipping impellers.
BS 6173 Compliant - Suitable for commercial catering gas interlock compliance.
AC and DC Current Monitoring - 0.1–10A direct measurement; also supports current transformer coil input (50/5 to 600/5) for larger motors.
Three Operating Modes - Overcurrent, undercurrent and current band - configurable to the application.
LCD Front Display - Real-time current monitoring with clear display.
Adjustable Release and Hysteresis Thresholds
T1 and T2 Delay Types - Configurable time delays to avoid nuisance tripping on fan start-up.
Fault Storage Activation - Record fault events for diagnostic purposes.
IP65 Enclosure - Suitable for commercial kitchen environments.
EN 50022 Conformance
Insulation Class II (Double Insulated)
3-Year Warranty
Ideal For
BS 6173 commercial kitchen gas interlock systems monitoring two fans
Extract and supply fan dual monitoring
Installations requiring more comprehensive fan load monitoring than basic on/off current detection
Two-fan BS 6173 current monitor — LCD display, dual switching points, IP65. Order today.
Specification
Duomo FP45 Double Current Monitor – Two-Fan Gas Interlock Specification
Two level — low (running confirmation) & high (load verification)
Display
LCD front display
IP Rating
IP65
Insulation Class
Class II (double insulated)
Standard
EN 50022
Operating Temperature
-20°C to +55°C
Storage Temperature
-40°C to +70°C
Dimensions (L × H × D)
143 × 210 × 100mm (max)
Warranty
3 years
Features
Duomo FP45 Double Current Monitor – Two-Fan Gas Interlock Features
Monitors Two Fans - Simultaneous monitoring of two extraction fans for extract and supply fan applications.
Two Level Switching Points - Low point: fan running confirmation. High point: normal load verification. Detects stopped fans and broken belts/slipping impellers.
BS 6173 Compliant — Suitable for commercial catering gas interlock compliance.
AC and DC Current Monitoring - 0.1–10A direct measurement; also supports current transformer coil input (50/5 to 600/5) for larger motors.
Three Operating Modes - Overcurrent, undercurrent and current band - configurable to the application.
LCD Front Display - Real-time current monitoring with clear display.
Adjustable Release and Hysteresis Thresholds
T1 and T2 Delay Types - Configurable time delays to avoid nuisance tripping on fan start-up.
Fault Storage Activation - Record fault events for diagnostic purposes.
IP65 Enclosure - Suitable for commercial kitchen environments.
EN 50022 Conformance
Insulation Class II (Double Insulated)
3-Year Warranty
