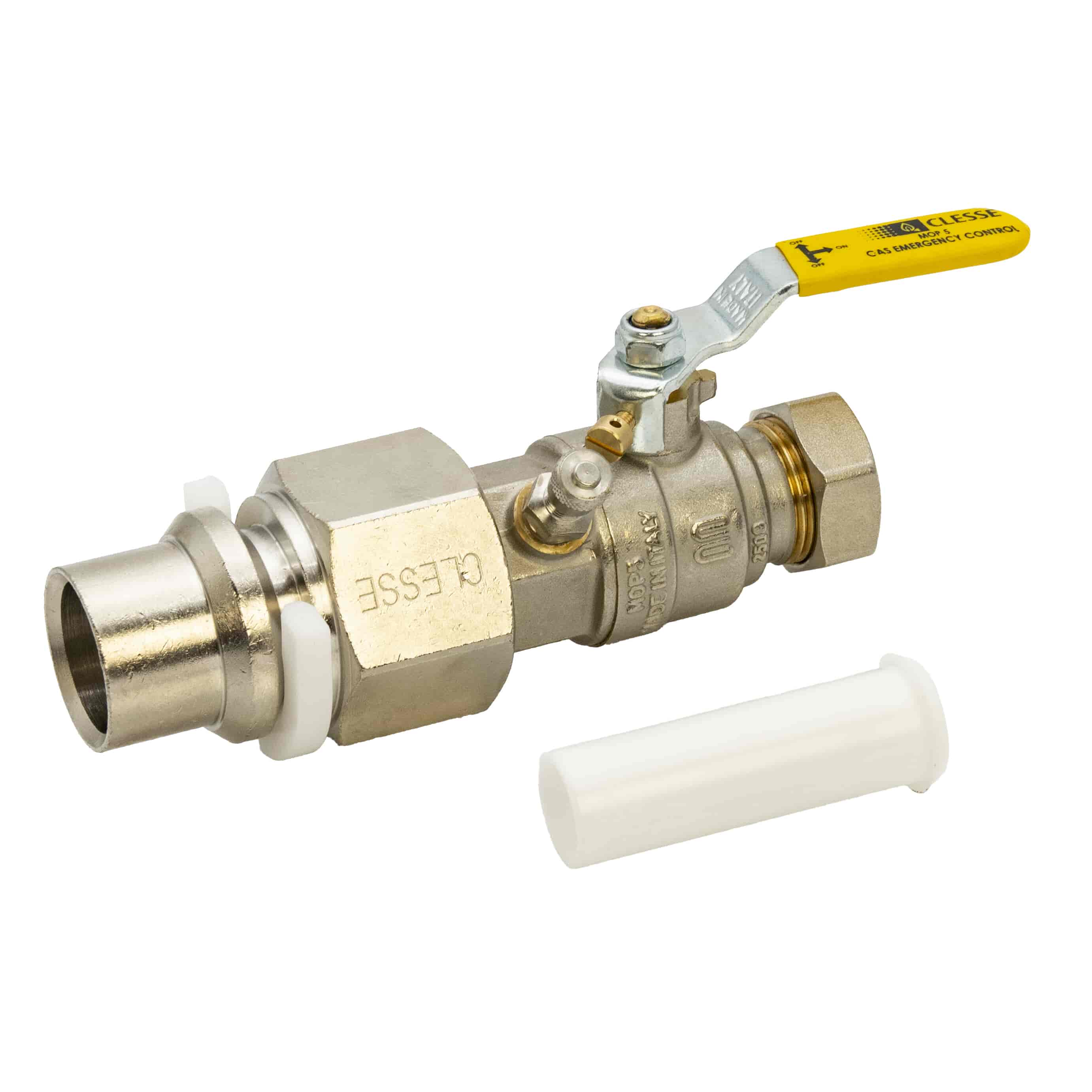

Installing a gas meter box connection usually means sourcing a transition fitting, an isolation valve, and a test point separately — the Clesse EvoFit combines all three into one compact unit. The mechanical compression fitting makes a safe, leak-free transition between 25mm MDPE pipe and ¾" BSP threaded equipment, with no heat fusion tooling required on site.
Built into the same unit is a MOP 5 ball valve compliant with EN 331, giving a proper isolation point to safely control gas supply, along with a factory-fitted test point complete with a 1/8" Schrader valve and protective cap for commissioning and testing. The nickel-plated brass construction and conical nitrile rubber seal (tested to EN 682) are built for long service life, and the whole assembly meets EN 1555-2 for mechanical PE pipe fittings.
Fitting a transition, an isolation valve, and a test point separately means three components to source, fit, and check for leaks individually. This EvoFit unit puts all three in one factory-assembled package, so a meter box installation is done with fewer joints, less time on site, and no compromise on the safety-critical isolation and test functions.
Order the Clesse EvoFit Meterbox Transition Fitting 3/4" BSP Male x 25mm MDPE online today.
| Brand | Clesse |
|---|---|
| Product Type | Meterbox PE Transition Fitting with Valve & Test Point |
| Thread Type | ¾" BSP Parallel Male (60° Conical) |
| Transition Size | 25mm MDPE with C-Clip |
| Isolation Valve | MOP 5 Ball Valve – EN 331 Compliant |
| Locking Pin | Yes |
| Test Point | 1/8" BSPT Schrader Valve & Cap (Factory Assembled) |
| Test Point Tapping | R1/8 ISO 7 |
| Material & Finish | Valve: Brass / Transition Body: Nickel-Plated Brass |
| Seal Type | Conical Nitrile Rubber – EN 682 GBL |
| Standard | EN 1555-2:2002 |
| Temperature Limits | -20°C to +60°C |
| Marking | CLESSE – 25mm |
