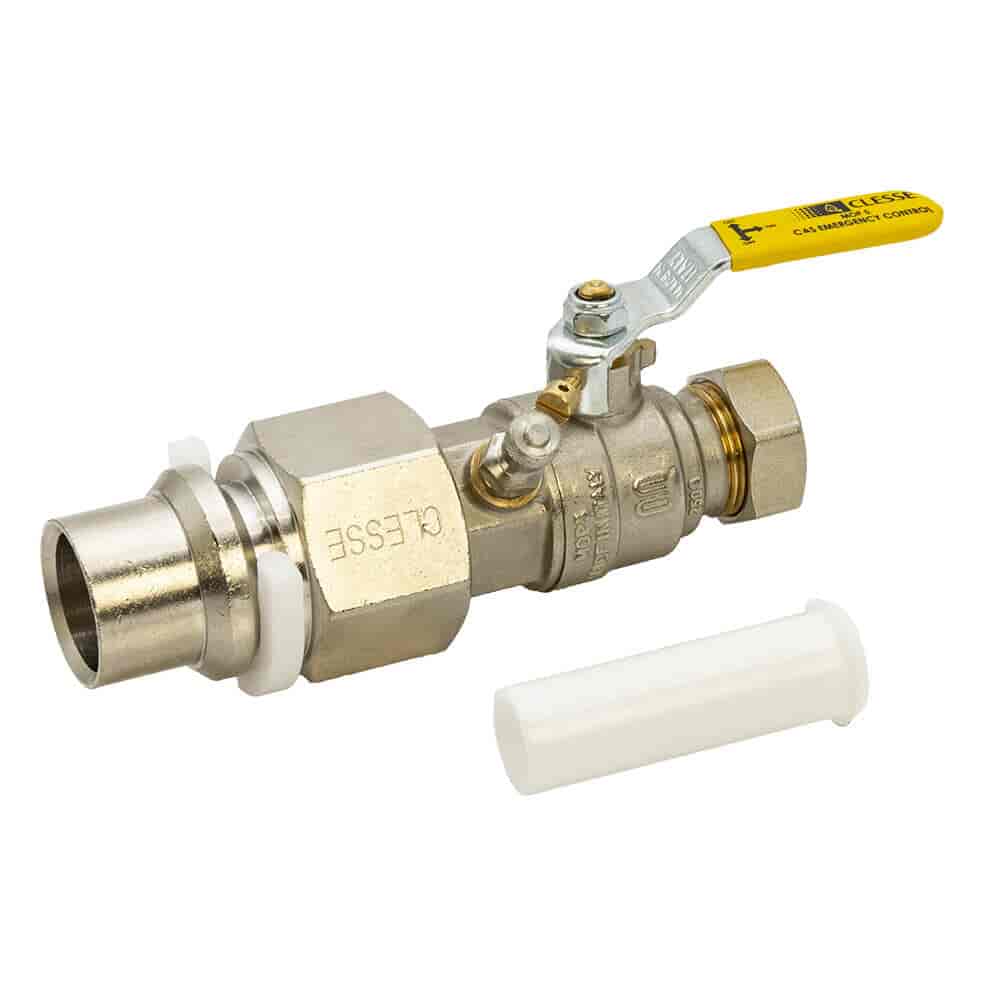

The Clesse EvoFit Meterbox Transition Fitting - 3/4" BSP Male x 25mm MDPE is basically a top-class all-in-one product which is specifically designed for installing gas meters. This mechanic compression fitting makes a really safe, quick and totally leak-free transition between 25mm MDPE pipe & whatever BSP threaded gas equipment you might have on site.
This EvoFit unit is a real game-changer in that it comes with three of the most important bits you need all in one single bit of kit:
A PE transition fitting with a C-clip
A built-in MOP 5 isolation ball valve - a vital safety feature for gas installations
A pre-assembled test point complete with a Schrader valve
Manufactured from tough, nickel-plated brass and made to very strict European standards, this is just the job for LPG installations where getting things done fast, safely, and to the right spec is crucial.
Key Features and Benefits
All-in-One Meterbox Solution : It's a transition fitting, an isolation valve and a test point - all in one neat little package.
Connects 25mm MDPE to 3/4" BSP : Handy for any domestic or light commercial gas services.
Makes use of MOP 5 Ball Valve (EN 331) : That's the integrated isolation valve that lets you safely stop the gas supply.
Has a factory-fitted Test Point : This includes a 1/8" Schrader valve & a protective cap for testing & commissioning.
Uses C-clip Compression System : Easy-to-use and fast to install.
Made from tough Nickel-Plated Brass : Should last you a good long time.
No Fiddling with Heat or Fusion Required - Saves loads of time on site.
Who'd this be ideal for?
Pro gas meter box installations
LPG service connections
When you need to switch from 25mm MDPE to BSP pipework
Domestic & light commercial gas systems
Gas engineers & installers
So why buy this ?
It makes installation so much easier because it has all the bits you need in one compact package, so you can tell your clients - "Job done, no worries." Gas engineers across Europe know they can trust it to last in tough conditions.
Save yourself a heap of time on site by ordering a totally compliant solution - the Clesse EvoFit 25mm Meterbox Transition Fitting today.
Specification
Clesse EvoFit Meterbox Transition Fitting 3/4" BSP Male x 25mm MDPE Specification
Brand
Clesse
Product Type
Meterbox PE Transition Fitting with Valve & Test Point
Thread Type
3/4\" BSP Parallel Male (60° Conical)
Transition Size
25mm MDPE with C-Clip
Isolation Valve
MOP 5 Ball Valve – EN 331 Compliant
Locking Pin
Yes
Test Point
1/8\" BSPT Schrader Valve & Cap (Factory Assembled)
