Cavagna 30mbar Marine LPG Bulkhead Regulator Kit – Campingaz 907 | BS EN 16129 Annex M

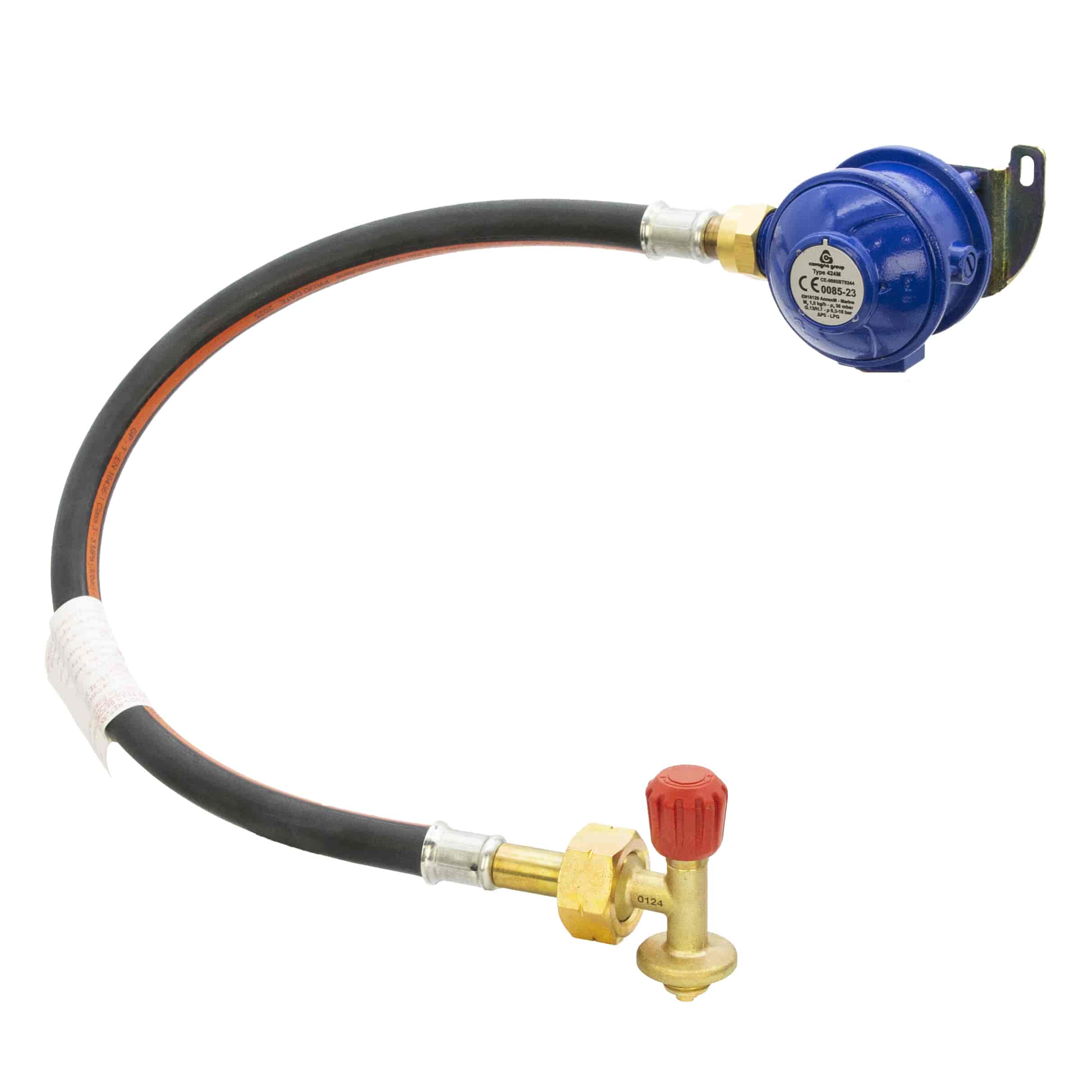

The Cavagna Marine Bulkhead LPG Regulator kit with a Campingaz connection for use with 907 Campingaz cylinders. This double-stage regulator has an output pressure of 30 mbar and is certified by BS EN 16129 Annex M (Marine, 2013). It features an EN 16436-1 Class 3 pigtails with a working pressure of 30 bar and a bursting pressure of 90 bar. A non-return/excess flow valve is also included. Additionally it can be used with Calor butane cylinders using the 21.8 LH butane nut fitting. The regulator kit includes a 3/8" BSP female outlet and a 75mbar over-pressure relief.
The Cavagna Marine Bulkhead Kit is manufactured by Cavagna and supplied as a Campingaz version of the standard Cavagna marine bulkhead LPG regulator kit. The primary purpose of this product is for Campingaz 907 butane cylinders which are the most commonly found Campingaz cylinder sizes on european and UK cruising yachts. However, the same kit will also fit Calor butane cylinders via the 21.8 LH butane nut connection. All other components including connections, regulation, pigtails and safety aspects are identical to those of the standard butane/propane bulkhead kits.
Everything required for a marine bulkhead LPG installation that complies with BS EN 16129 Annex M (marine, 2013) is contained within the kit.
Key Features & Benefits
Campingaz 907 Compatible - Inlet connection suited to Campingaz 907 butane cylinders - the most widely available cylinder for cruising yachts across UK and European marinas.
Also Fits Calor Butane (21.8LH) - Dual-use inlet - also connects to Calor butane cylinders using the 21.8LH butane nut connection.
BS EN 16129 Annex M (Marine, 2013) Compliant - Insurance-required standard for onboard LPG installations.
Double Stage - Consistent 30mbar - Stable outlet pressure throughout cylinder life.
EN 16436-1 Class 3 Pigtail - 30 bar working / 90 bar burst pressure, 6.3mm ID, 16.3mm OD. Non-return/excess flow valve fitted. Advisory label attached.
75mbar Over-Pressure Relief
Reinforced Diaphragms
3/8" BSP Female Outlet
Marine-Grade Construction
Ideal For
Marine bulkhead LPG installations using Campingaz 907 cylinders
Cruising yachts filling up in UK and European marinas where Campingaz is widely available
Dual-cylinder setups where both Campingaz and Calor butane cylinders may be used
Campingaz 907 marine bulkhead regulator kit - Annex M compliant, Class 3 pigtail. Order today for fast shipping.
Note: Manufacturing date June 2023
Specification
Cavagna 30mbar Marine LPG Bulkhead Campingaz Gas Regulator Kit Specification
Brand
Cavagna
Product Type
Marine Bulkhead Double Stage LPG Regulator Kit
Approval
BS EN 16129 Annex M (Marine, 2013)
Stage
Double stage
Outlet Pressure
30 mbar
Flow Rate
1.5 kg/h
Inlet Connection
Campingaz (suits 907 cylinders) – also fits as butane nut (21.8LH) for Calor butane
Marine bulkhead LPG installations – boats and yachts
Features
Cavagna 30mbar Marine LPG Bulkhead Campingaz Gas Regulator Kit Features
Campingaz 907 Compatible - Inlet connection suited to Campingaz 907 butane cylinders - the most widely available cylinder for cruising yachts across UK and European marinas.
Also Fits Calor Butane (21.8LH) - Dual-use inlet - also connects to Calor butane cylinders using the 21.8LH butane nut connection.
BS EN 16129 Annex M (Marine, 2013) Compliant - Insurance-required standard for onboard LPG installations.
Double Stage - Consistent 30mbar - Stable outlet pressure throughout cylinder life.
EN 16436-1 Class 3 Pigtail - 30 bar working / 90 bar burst pressure, 6.3mm ID, 16.3mm OD. Non-return/excess flow valve fitted. Advisory label attached.
75mbar Over-Pressure Relief
Reinforced Diaphragms
3/8" BSP Female Outlet
Marine-Grade Construction
