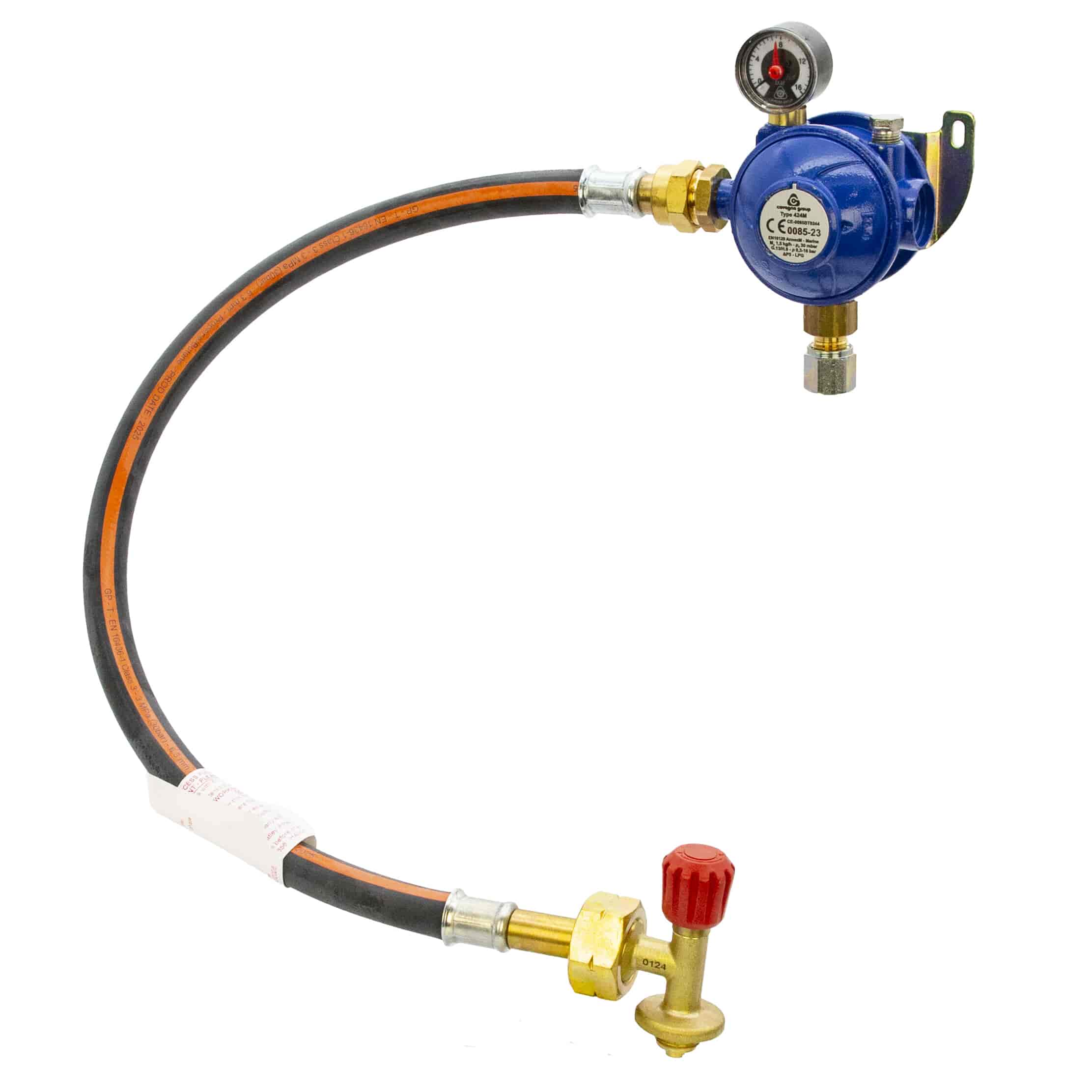

Cavagna Marine Bulkhead LPG Regulator Kit with Gauge – Campingaz | 30mbar | BS EN 16129 Annex M | 8mm Compression
Bulkhead, marine-grade, double-stage LPG regulator complete kit with integrated gauge and Campingaz inlet connection. Has 8mm compression nut and olive outlet. Bs en 16129 Annex M (marine, 2013). En 16436-1 class 3 Pigtail (30 bar / 90 bar burst), has non-return/ excess flow valve. Has 30 mbar, 75 mbar over-pressure relief. Suitable for use in conjunction with Campingaz cylinders and Calor butane without adapter.
The LPG regulator kits combine the options of the Campingaz inlet connection with an integrated gauge, and an 8 mm compression nut and olive outlet for marine Installations which have a 8mm copper gas distribution pipe, require a gauge on the regulator, and utilise Campingaz cylinders as their primary gas source. The Campingaz version of this kit is shown above; the Calor butane/propane version (butane nut inlet) is also available. As stated previously all specifications regarding Pigtail, safety features etc., are the same across all four marine bulkhead kit variants.
Key Features & Benefits
Campingaz Cylinder Inlet - For Campingaz gas cylinders - the cylinder type most available across European marinas. Additional adaptors required for Calor butane use.
Integrated Pressure Gauge - Visible gas supply pressure display for quick cylinder level monitoring at the regulator.
8mm Compression Nut & Olive Outlet - Compression connection to 8mm copper pipe - no additional fitting required.
BS EN 16129 Annex M (Marine, 2013) Compliant - Insurance-required standard for onboard LPG installations.
Double Stage - Consistent 30mbar
EN 16436-1 Class 3 Pigtail - 30 bar working / 90 bar burst, 6.3mm ID, 16.3mm OD. Non-return/excess flow valve fitted. Advisory label attached.
75mbar Over-Pressure Relief
Reinforced Diaphragms
Marine-Grade Construction
Ideal For
Marine bulkhead LPG regulator installations on boats and yachts
Marine LPG system refits requiring insurance-compliant Annex M regulation
Installations using Calor propane or butane cylinders with a 21.8LH butane nut connection
Campingaz marine bulkhead kit with gauge and 8mm compression outlet — Annex M compliant. Order today for fast shipping.
Note: Manufacturing date June 2023
Specification
Cavagna Marine 30mbar Bulkhead Gas Regulator Kit with Gauge - Campingaz Specification
Brand
Cavagna
Product Type
Marine Bulkhead Double Stage LPG Regulator Kit with Gauge
Approval
BS EN 16129 Annex M (Marine, 2013)
Stage
Double stage
Outlet Pressure
30 mbar
Flow Rate
1.5 kg/h
Inlet Connection
Campingaz (suits 907 cylinders)
Outlet Connection
8mm compression nut & olive (for 8mm copper pipe)
Gauge
Yes – integrated pressure gauge
Over-Pressure Relief
75 mbar
Pigtail Standard
EN 16436-1 Class 3
Pigtail ID
6.3mm
Pigtail OD
16.3mm
Pigtail Working Pressure
30 bar
Pigtail Burst Pressure
90 bar
Non-Return/Excess Flow Valve
Fitted
Gas Type
LPG (propane and butane)
Compatible Cylinders
Campingaz 907; Calor butane with adaptor
Suitable Applications
Marine bulkhead LPG installations – boats and yachts
Features
Cavagna Marine 30mbar Bulkhead Gas Regulator Kit with Gauge - Campingaz Features
Campingaz Cylinder Inlet - For Campingaz gas cylinders - the cylinder type most available across European marinas. Additional adaptors required for Calor butane use.
Integrated Pressure Gauge - Visible gas supply pressure display for quick cylinder level monitoring at the regulator.
8mm Compression Nut & Olive Outlet - Compression connection to 8mm copper pipe - no additional fitting required.
BS EN 16129 Annex M (Marine, 2013) Compliant - Insurance-required standard for onboard LPG installations.
Double Stage - Consistent 30mbar
EN 16436-1 Class 3 Pigtail - 30 bar working / 90 bar burst, 6.3mm ID, 16.3mm OD. Non-return/excess flow valve fitted. Advisory label attached.
75mbar Over-Pressure Relief
Reinforced Diaphragms
Marine-Grade Construction
