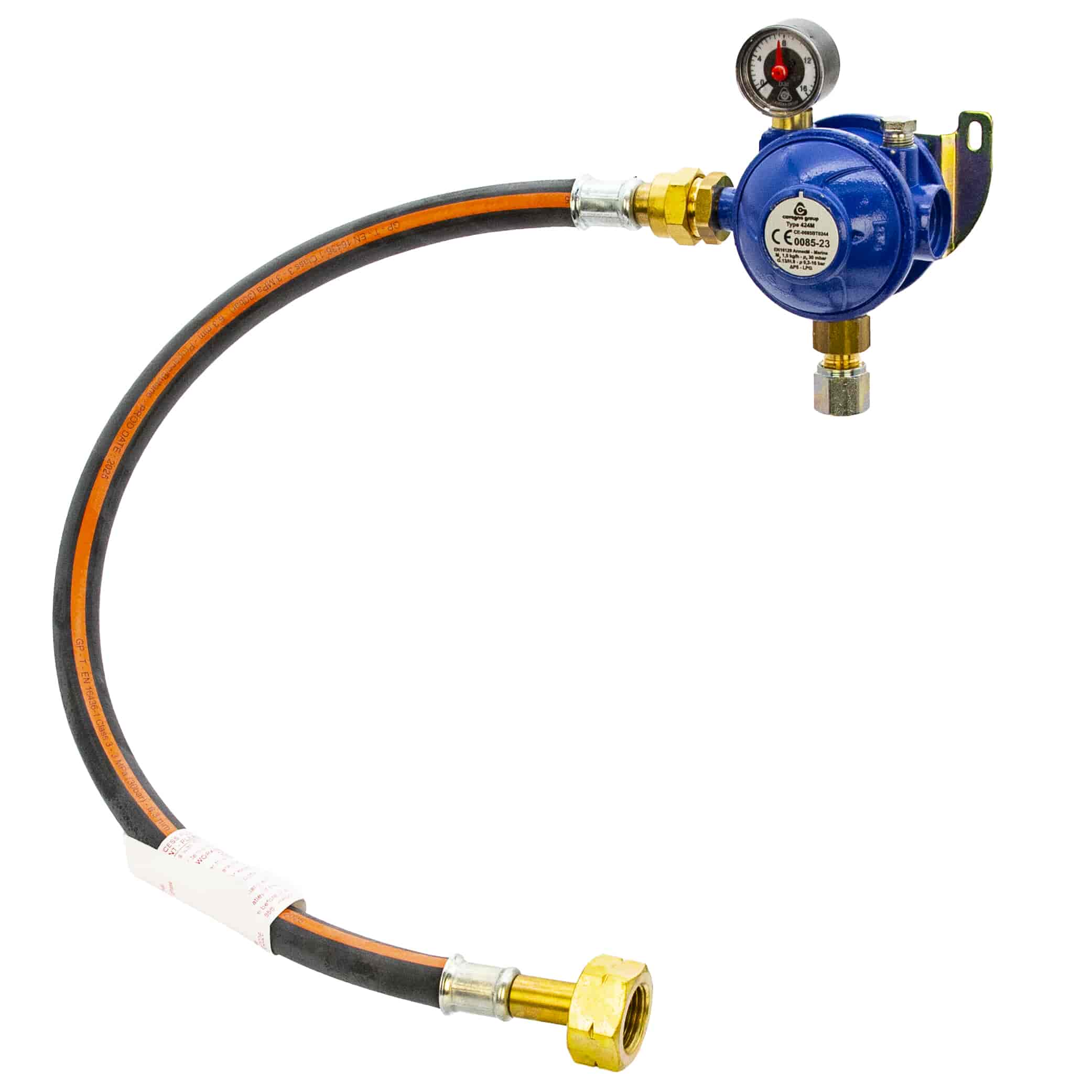

Cavagna Marine Bulkhead LPG Regulator Kit with Gauge – 30mbar | BS EN 16129 Annex M | 8mm Compression Outlet
Cavagna’s Marine Bulkhead Double Stage LPG Regulator Kit is a complete kit that includes a gauge. This kit also has a Butane Nut Cylinder Inlet; an 8 mm compression nut and olive outlet - differing from the 3/8″ BSP female outlet on the standard kit. This kit meets BS EN 16129 Annex M (marine, 2013). The pigtails are EN 16436-1 class 3 (30 bar / 90 bar burst); and have a non-return and excess flow valve. The diaphragms are reinforced. The overpressure relieve valve is set @ 75 mbar. Suitable for Calor propane and butane cylinders.
This version of the Cavagna Marine Bulkhead LPG Regulator Kit includes a pressure. The addition of the integrated pressure gauge allows you to visually monitor the gas supply pressure at the regulator and quickly determine if the gas level in the cylinder is low. One key specification difference between this product and the standard kit is the outlet connection type. The standard kit has a 3/8″ BSP female connection whereas this product has an 8 mm compression nut and olive connection. Therefore, when purchasing ensure that you select the correct type of connection for your installation.
Key Features & Benefits
Integrated Pressure Gauge - Visible gas supply pressure display at the regulator for quick gas level monitoring.
8mm Compression Nut & Olive Outlet - Direct connection to 8mm copper pipe without needing a separate fitting - different from the 3/8" BSP female outlet on the standard kit.
Butane Nut Cylinder Inlet - For Calor propane and butane cylinders (21.8LH connection). Additional adaptors required for Campingaz.
BS EN 16129 Annex M (Marine, 2013) Compliant - Insurance-required standard for onboard LPG installations.
Double Stage - Consistent 30mbar — Stable outlet pressure throughout cylinder life.
EN 16436-1 Class 3 Pigtail - 30 bar working / 90 bar burst, 6.3mm ID, 16.3mm OD. Non-return/excess flow valve fitted. Advisory label attached.
75mbar Over-Pressure Relief
Reinforced Diaphragms
Marine-Grade Construction
Ideal For
Marine bulkhead installations requiring a direct 8mm compression pipe connection to the regulator outlet
Installations where a gauge on the regulator provides useful day-to-day cylinder level monitoring
Calor propane and butane cylinder users
Marine bulkhead LPG regulator kit with gauge and 8mm compression outlet - Annex M compliant. Order today for fast shipping. Also available: standard kit without gauge (3/8" BSP female outlet).
Note: Manufacturing date June 2023
Specification
Cavagna Marine 30mbar Bulkhead LPG Regulator Kit with Gauge Specification
Brand
Cavagna
Product Type
Marine Bulkhead Double Stage LPG Regulator Kit with Gauge
Calor propane & butane (21.8LH); Campingaz with adaptor
Suitable Applications
Marine bulkhead LPG installations – boats and yachts
Features
Cavagna Marine 30mbar Bulkhead LPG Regulator Kit with Gauge Features
Integrated Pressure Gauge - Visible gas supply pressure display at the regulator for quick gas level monitoring.
8mm Compression Nut & Olive Outlet - Direct connection to 8mm copper pipe without needing a separate fitting - different from the 3/8" BSP female outlet on the standard kit.
Butane Nut Cylinder Inlet - For Calor propane and butane cylinders (21.8LH connection). Additional adaptors required for Campingaz.
BS EN 16129 Annex M (Marine, 2013) Compliant - Insurance-required standard for onboard LPG installations.
Double Stage - Consistent 30mbar - Stable outlet pressure throughout cylinder life.
EN 16436-1 Class 3 Pigtail - 30 bar working / 90 bar burst, 6.3mm ID, 16.3mm OD. Non-return/excess flow valve fitted. Advisory label attached.
75mbar Over-Pressure Relief
Reinforced Diaphragms
Marine-Grade Construction
