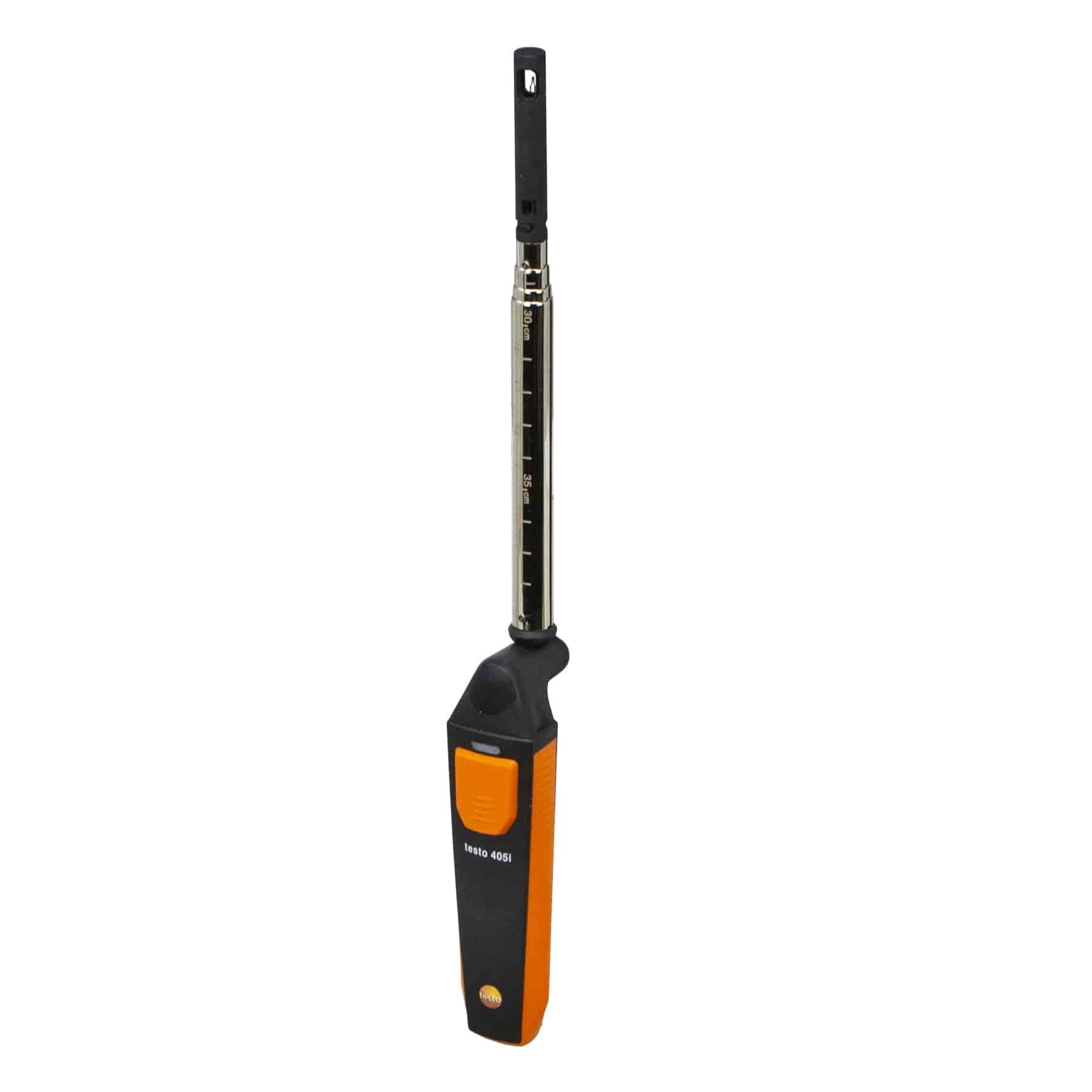

No more surprises with the Testo 405i Thermal Anemometer Smart Probe. Designed for professionals, this anemometer from the Testo Smart Probes series is perfect for measuring air velocity, temperature, and volume flows in ventilation ducts. It’s also ideal for checking indoor air velocity, locating non-airtight windows, and calculating cooling capacities and heating outputs when paired with the Testo 605i thermohygrometer.
Key Features:
Versatile Measurements: Accurately measures air velocity, temperature, and volume flows.
Indoor Air Velocity: Perfect for locating non-airtight windows and ensuring optimal indoor air quality.
Cooling and Heating Calculations: Works with Testo 605i thermohygrometer for comprehensive HVAC assessments.
Smartphone Integration for Enhanced Usability:
The Testo 405i combines professional-grade measuring technology with App-based operation, providing numerous benefits:
Remote Operation: View and operate from your smartphone or tablet, eliminating the need to read displays in hard-to-reach areas.
Automatic Volume Flow Calculation: Intuitively input duct cross-section dimensions and let the App calculate volume flow automatically.
Data Evaluation and Documentation: The Testo Smart App displays, evaluates, and documents measurement data. It allows timed and multi-point mean calculations and provides a visual data curve at the press of a button.
Easy Reporting: Send measurement data logs as PDF or Excel files directly from the App.
Delivery Scope:
Testo 405i thermal anemometer with smartphone operation
Extendible (400 mm) telescope
Batteries
Calibration protocol
Specifications:
Volume Flow Measurement: Simple configuration of duct dimensions and geometry for precise volume flow determination.
Telescopic Tube: Extendable up to 400 mm for convenient operation in ventilation ducts.
User-Friendly App: Easy viewing of readings, trend analysis, and log functions through the Testo Smart App.
Experience Convenience and Accuracy:
With the Testo 405i Bluetooth Thermal Anemometer Smart Probe, you can achieve precise measurements and seamless data handling. Enhance your workflow efficiency and adapt to any measurement requirements with this advanced tool. Ideal for HVAC technicians and professionals who demand accuracy and ease of use in their daily tasks
Specification
Testo 405i Bluetooth Thermal Anemometer Smart Probe Specification
General Technical Data
Operating Temperature
-20 to +50℃
Storage Temperature
-20 to +50℃
Battery Type
3 x AAA Mico batteries
Battery Life
50 hours
Dimensions
200 x 30 x 41 mm
Weight
119.6 g
Protection class
Measuring instrument: IP 40 | Probe: IP20
Housing Material
Plastic
Velocity - Hot Wire
Measuring Range
0 to 30 m/s
Accuracy ±1 digit
±(0.1 m/s + 5 % of mv) (0 to 2 m/s)
±(0.3 m/s + 5 % of mv) (2 to 15 m/s)
Resolution
0.01 m/s
Temperature - NTC
Measuring Range
-20 to + 60℃
Accuracy ±1 digit
±0.5 °C
Resolution
0.1℃
Features
Testo 405i Bluetooth Thermal Anemometer Smart Probe Features
Precise Measurements: Accurately measures air velocity, temperature, and volume flows.
Indoor Air Quality: Ideal for detecting non-airtight windows and ensuring optimal indoor air velocity.
Comprehensive HVAC Assessments: Calculates cooling capacities and heating outputs when used with Testo 605i thermohygrometer.
Smartphone Integration: Operate and view measurements remotely using your smartphone or tablet with the Testo Smart App.
Automatic Volume Flow Calculation: Easily input duct cross-section dimensions and let the App handle the calculations.
Data Evaluation and Documentation: The Testo Smart App displays, evaluates, and documents measurement data.
Easy Reporting: Send measurement logs as PDF or Excel files directly from the App.
Telescopic Tube: Extendable up to 400 mm, perfect for working in ventilation ducts.
User-Friendly App Features: Includes easy viewing of readings, trend analysis, and log functions.
Complete Package: Includes Testo 405i thermal anemometer, extendible telescope, batteries, and calibration protocol.
Professional-Grade Tool: Combines Testo’s renowned measuring technology with modern app functionality for enhanced efficiency.
Convenient for HVAC Technicians: Designed for precise and convenient measurements in ventilation ducts and indoor environments.
