Anton Sprint Pro 5 Flue Gas Analyser – Kit A | NO/NOx Sensor | Reporting Kit with Printer & Pipe Clamps | BS 7967
⚠ Made to Order - Typical lead time 2–3 weeks. Please contact us for an exact delivery date before ordering.
Anton Sprint Pro 5 Kit A is the complete reporting kit built around the NO/NOx sensor analyser. The Pro 5 already measures CO and O₂ directly, with CO₂ calculated, plus NO and NOx readings in FGA mode. Kit A adds the accessories needed for complete on-site testing and reporting: the infrared printer for printed results, two AS10 pipe clamp probes for flow and return temperature, the Anton Pressure Relief Valve for let-by and tightness testing, and the gas leak detection probe.
This is the kit for commercial combustion system work where NOx measurement matters and full reporting capability is needed without sourcing accessories separately. The triple filter water trap — an upgrade over the standard double water-stop on other Sprint Pro models — gives additional protection in challenging field conditions, with a moisture filter in the condensate trap plus a second filter at the click-in connection.
Bluetooth connects to the free Anton Sprint Pro app for report generation and calculation features. It's BSI independently tested to EN 50379-1:2012 and EN 50379-3:2012, hydrogen blend ready, and can be upgraded to add a dual-beam IR CO₂ sensor or to Pro 6 specification at a later date.
Key Features & Benefits
- Dedicated NO Sensor – NO and NOx Measurement: Measures nitric oxide and calculates nitrogen oxide in FGA mode, alongside CO, O₂ and CO₂ (calculated).
- Pro Infrared Magnetic Printer Included: Instant hard copies of results on site, with wireless communication with the analyser.
- 2 x AS10 Pipe Clamp Temperature Probes: Flow and return temperature for comprehensive combustion system inspection.
- Anton Pressure Relief Valve (APRV) and Hose Set Included: For let-by and tightness pressure testing.
- Gas Leak Detection Probe Included: Combustible gas leak sensor for organic gas leak detection.
- Triple Filter Water Trap: Total hydrophobic protection, with a moisture filter in the condensate trap plus a second filter at the click-in connection.
- Bluetooth – Anton Sprint Pro App: Report generation, account management and calculation features via the free app.
- BS 7967 CO Sweep and CO Room Safety Reporting: Produces the standard compliance reports.
- Future Upgradeable: Add a dual-beam IR CO₂ sensor at a later date, or upgrade to Pro 6 specification.
- Rugged Construction: Same material used in motorcycle crash helmets, with a secure click-in flue probe connector.
- Hydrogen Blend Ready: Prepared for current and developing fuel gas compositions.
- 14-Hour Battery: Li-ion rechargeable, USB-C charging.
Ideal For
- Commercial combustion system testing requiring NOx measurement and full on-site reporting.
- Plumbers, oil engineers and commissioning engineers working with BS 7967.
- Engineers who want complete accessory coverage with the NOx-capable analyser in one purchase.
Note: if testing oil-powered appliances, the Sprint Pro Flue Probe with 3 Micron Filter (C03767/S) is recommended.
Sprint Pro 5 (Base) vs Kit A — What's the Difference?
- Sprint Pro 5 (base): Analyser, flue probe, gas leak probe, charger, pressure hose, carry bag. No printer, no pipe clamps, no APRV.
- Sprint Pro 5 Kit A (this product): All of the above, plus an infrared printer, 2 x AS10 pipe clamp probes and the Anton Pressure Relief Valve.

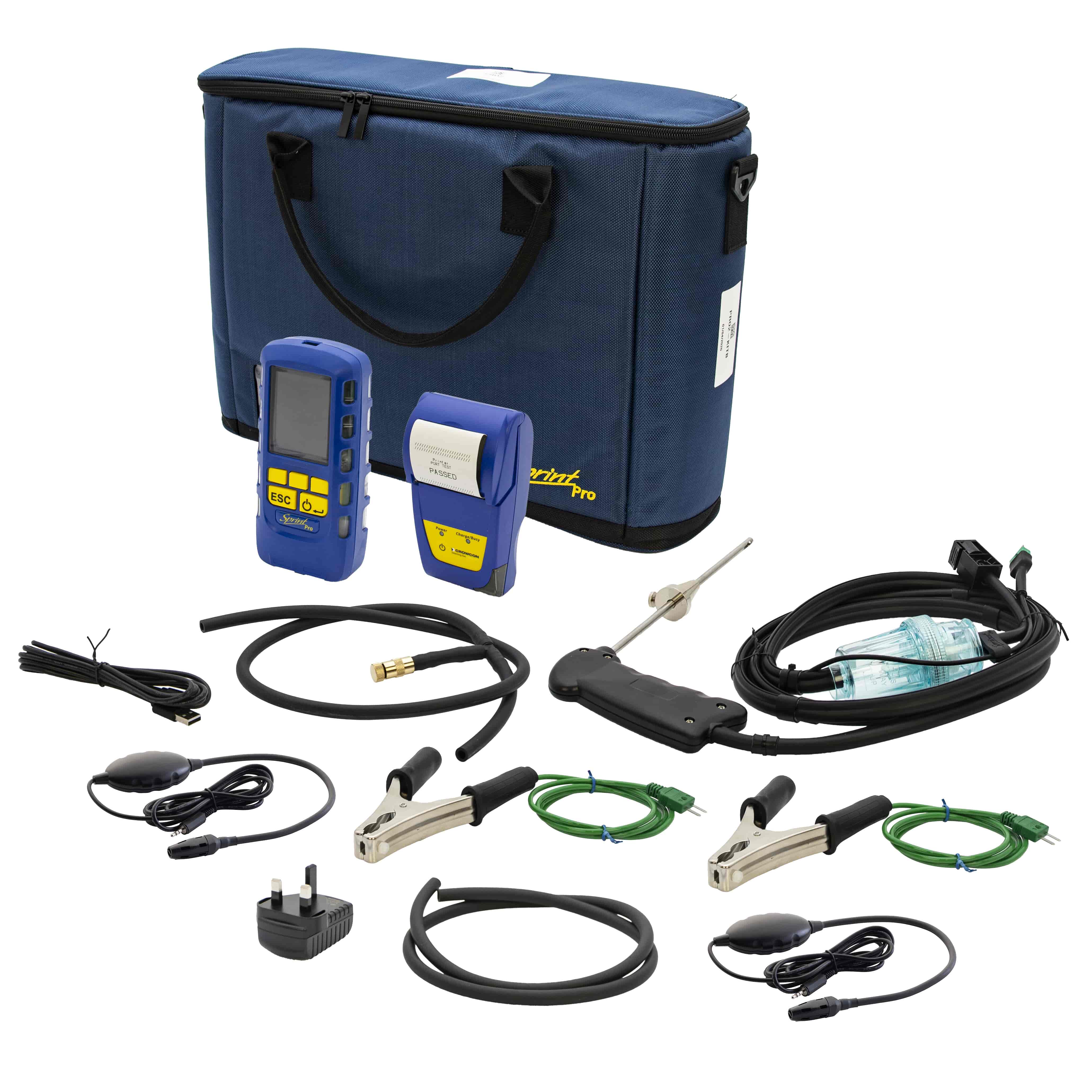

Kit A Contents
- 1 x Sprint Pro 5 Flue Gas Analyser (NO sensor, Bluetooth).
- 1 x Sprint Pro Quick Drop-In Bag.
- 1 x USB Charger and Lead.
- 1 x Sprint Pro Flue Probe with Water Stop Technology and Washable Particulate Filter.
- 1 x Sprint Pro Gas Escape Probe (gas leak detection).
- 1 x Pro Infrared Magnetic Printer (USB Charging).
- 1 x Anton Pressure Relief Valve (APRV).
- 1 x Standard Pressure Hose.
- 2 x AS10 Clamp Pipe Temperature Probes.
- 1 x Spare Washable Particulate Filter.
- Certificate of Calibration, Certificate of Conformity and Quick Start Guide.
Why Buy This Product?
Kit A brings the printer, pipe clamp probes, APRV and gas leak probe together with the NO/NOx-capable Pro 5 analyser, so nothing extra needs sourcing separately for commercial combustion system work with full on-site reporting. The triple filter water trap gives extra protection over the standard double water-stop, useful in the harsher field conditions commercial testing can involve, and the future upgrade path to a direct CO₂ sensor or Pro 6 means the investment carries forward if requirements expand.
Order the Anton Sprint Pro 5 Multifunction Flue Gas Analyser Kit A online today.
