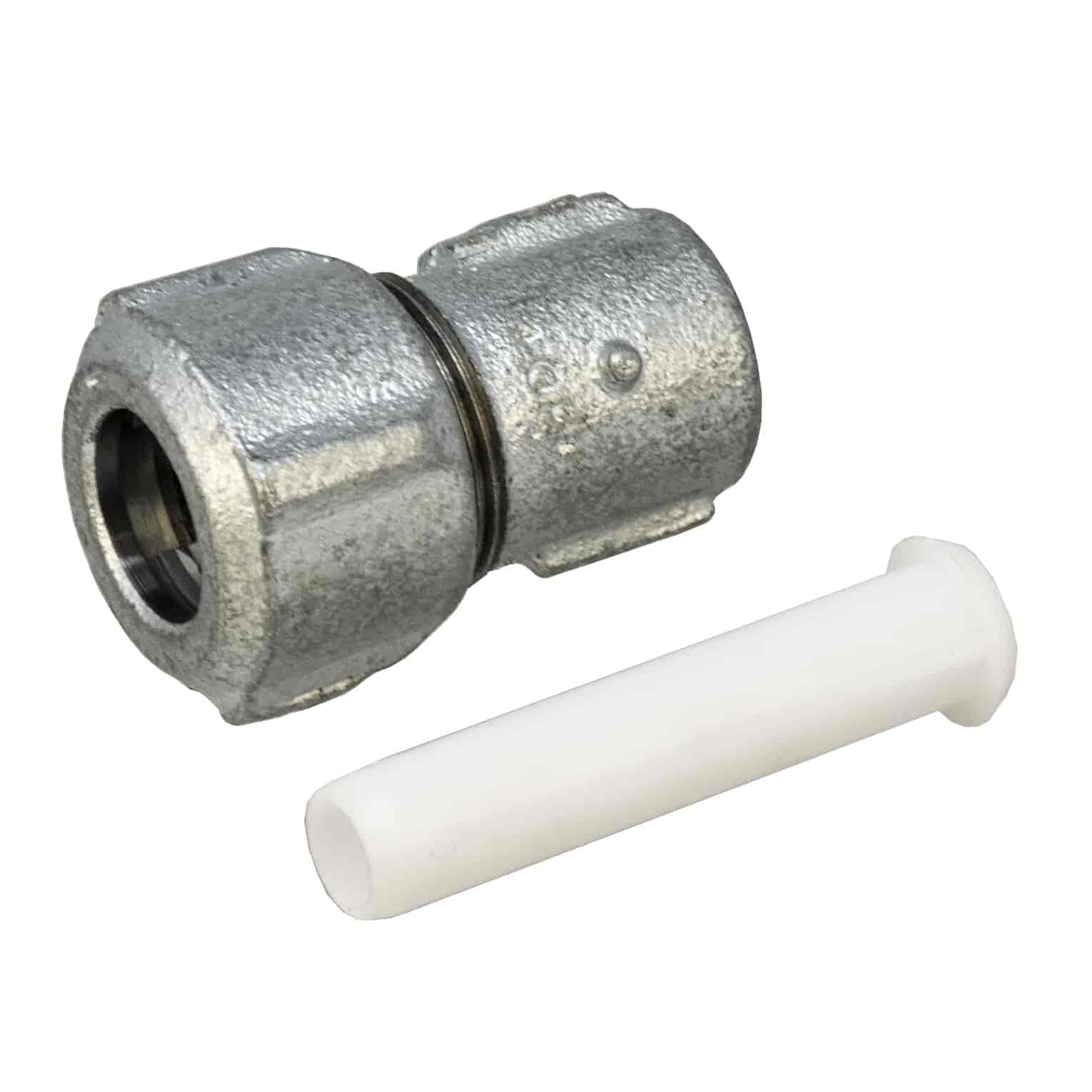

The Primofit® Galvanised Gas Adaptor is a compression fitting for connecting 20mm yellow MDPE gas pipe to 1/2" BSP female threaded steel pipework. A secure, leak-free solution for Natural Gas and LPG installations, it meets BS EN 10255, BS EN 10220 and ISO 7-1 standards.
Manufactured under a BS EN ISO 9001 quality system, this adaptor is designed for long life in domestic, commercial and light industrial applications. The galvanised body and nut are corrosion resistant, and the insert stiffeners support MDPE pipe integrity.
For above-ground or underground use (with corrosion tape, sold separately), this adaptor also meets GIS/PL3 specified installations where galvanised components are required.
A compression joint that needs no heat, threading or welding genuinely speeds up an MDPE-to-steel transition on site, and galvanised construction meets GIS/PL3 requirements where corrosion resistance is specified for underground work. Included insert stiffeners protect the MDPE pipe from deformation under the compression nut, supporting long-term joint integrity.
Order the Primofit® Galvanised Gas Adaptor 1/2" BSP FM x 20mm MDPE online today.
| Brand | Georg Fischer – Primofit® |
|---|---|
| Part Number | 775 212 201 |
| Standards | BS EN 10255, BS EN 10220 and BS EN ISO 9001 |
| Angular Deflection | 6° |
| Colour/Material | Galvanised Malleable Iron |
| Pressure | 7 Bar at 20°C |
| Size | 1/2" BSP Female x 20mm MDPE |
| Temperature Range | -20°C to 40°C |
| Dimensions | 58mm x 45mm |
| Insert Stiffeners Included | Yes – For Added Stability with MDPE Pipes |
| Suitable Gases | Natural Gas & LPG |
| Suitable Applications | To Join Yellow Gas MDPE Pipe to Steel Pipe |
| Warranty | 12 Months |
